Analog Devices Inc. AD7366BRUZ-5

Part No.:: AD7366BRUZ-5

Manufacturer:: Analog Devices Inc.

Package:: 24-TSSOP (0.173, 4.40mm Width)

Datasheet:: AD7366BRUZ-5.pdf

Description:: IC ADC 12BIT SAR 24TSSOP

In Stock:: 3573

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7366BRUZ-5 Specifications

Packaging:
Tube
Series:
iCMOS®
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
500k
Number of Inputs:
4
Input Type:
Single Ended
Data Interface:
SPI, DSP
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
2
Architecture:
SAR
Reference Type:
External, Internal
Voltage-Supply Analog:
±11.5V ~ 16.5V
Voltage-Supply Digital:
2.7V ~ 5.25V
Features:
Selectable Address, Simultaneous Sampling, True Bipolar
Operating Temperature:
-40°C ~ 85°C

AD7366BRUZ-5 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7366BRUZ-5 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7366BRUZ-5 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7366BRUZ-5 information

Views：

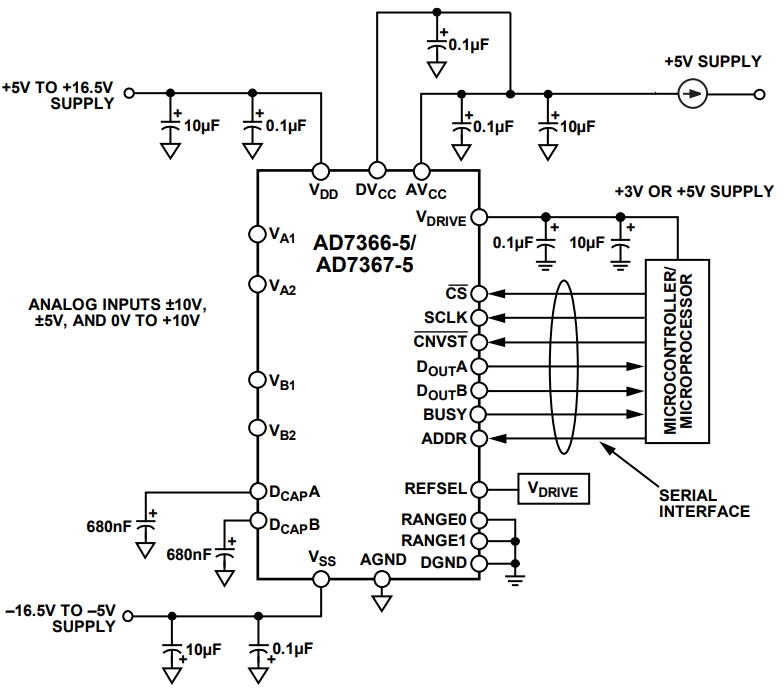

AD7366BRUZ-5 Typical application Circuitry

AD7366BRUZ-5

The AD7366BRUZ-5 is a versatile, dual-channel, 12-bit analog-to-digital converter (ADC) renowned for its ability to sample and convert analog signals with a resolution of up to 12 bits. This chip stands out for its capacity to handle bipolar input ranges, making it particularly suitable for applications requiring precise measurement of both positive and negative signals, such as in industrial control systems, data acquisition modules, and sensor interfaces.

Key Characteristics:

1. Dual-Channel ADC: Offers simultaneous sampling and conversion of two analog signals, enhancing data throughput.

2. Bipolar Input Range: Capable of accepting bipolar input signals, allowing for the measurement of both positive and negative voltages.

3. High Resolution: Provides a 12-bit resolution, ensuring accurate representation of analog signals in digital form.

4. Serial Interface: Equipped with a serial interface compatible with SPI, facilitating easy integration with microcontrollers and digital systems.

5. Flexible Power Supply: Operates with a single 5V power supply, simplifying power management in various applications.

Application Scenario - Industrial Process Monitoring:

In an industrial process monitoring system, the AD7366BRUZ-5 can be utilized to monitor and digitize analog signals from sensors that measure parameters such as temperature, pressure, or flow rate.

Circuit Design:

1. Power Supply Connection: Connect a 5V power source to the VDD (pin 16) and ground the chip at GND (pin 8) to power the ADC.

2. Analog Input Connections: Connect the AD7366BRUZ-5 analog sensors to the VIN1 (pin 1) and VIN2 (pin 14) pins. Ensure that the sensors' output signals fall within the ADC's bipolar input range.

3. Reference Voltage Setup: Connect a stable reference voltage to the REF (pin 15) pin to define the ADC's input voltage range and full-scale range.

4. Serial Interface Configuration: Interface the AD7366BRUZ-5 ADC with a microcontroller or digital system using the SCLK (pin 11), SDI (pin 9), and SDO (pin 10) pins for serial data communication. Utilize the CNV (pin 4) pin to initiate the conversion process.

5. Noise Reduction Measures: Place decoupling capacitors near the VDD and GND pins to filter out noise and ensure a stable power supply to the ADC.

Design Considerations:

- Signal Conditioning: Implement appropriate filtering and buffering circuits to condition the analog signals from the sensors before feeding them into the ADC, thereby enhancing signal quality and conversion accuracy.

- PCB Layout: Design the PCB layout to minimize the length of the traces connecting the analog inputs and the reference voltage to the ADC, reducing susceptibility to noise interference. Maintain a clear separation between the analog and digital sections of the circuit to minimize the impact of digital noise on the analog signals.

- Thermal Management: Ensure proper thermal management strategies are in place, particularly in industrial environments where temperatures can vary significantly, to maintain consistent performance and accuracy of the ADC.

By incorporating the AD7366BRUZ-5 into an industrial process monitoring system and adhering to these circuit design principles, accurate and reliable monitoring of analog signals can be achieved, enhancing the overall efficiency and safety of the industrial process.
