Analog Devices Inc. AD7328BRUZ-REEL7

Part No.:: AD7328BRUZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 20-TSSOP (0.173, 4.40mm Width)

Datasheet:

Description:: IC ADC 12BIT SAR 20TSSOP

In Stock:: 1334

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7328BRUZ-REEL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
iCMOS®
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
1M
Number of Inputs:
4, 7, 8
Input Type:
Differential, Pseudo-Differential, Single Ended
Data Interface:
SPI, DSP
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External, Internal
Voltage-Supply Analog:
±12V ~ 16.5V
Voltage-Supply Digital:
2.7V ~ 5.25V
Features:
Temperature Sensor, True Bipolar
Operating Temperature:
-40°C ~ 85°C

AD7328BRUZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7328BRUZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7328BRUZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7328BRUZ-REEL7 information

Views：

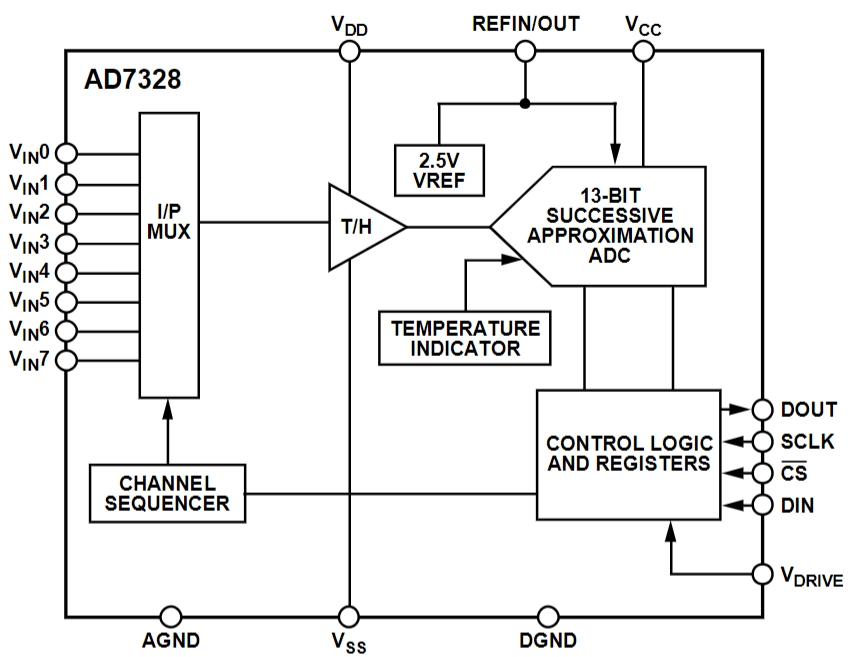

AD7328BRUZ-REEL7 Typical application Circuitry

AD7328BRUZ-REEL7

The AD7328BRUZ-REEL7 is an 8-channel, 12-bit analog-to-digital converter (ADC) with a high-speed serial interface. It is designed for applications that require precise and simultaneous sampling of multiple analog signals, such as in distributed control systems and multi-sensor data acquisition setups.

Key Features of AD7328BRUZ-REEL7

1. Eight Independent ADC Channels: Enables simultaneous sampling of eight different analog inputs, improving data acquisition throughput.

2. High-Speed Serial Interface: Facilitates rapid data transfer to a microcontroller or digital signal processor, essential for real-time applications.

3. Versatile Input Voltage Range: Supports a variety of input voltage ranges, making it adaptable to diverse sensor outputs.

Application Example: Distributed Control System

In a distributed control system for industrial automation, the AD7328BRUZ-REEL7 can be used to monitor and digitize signals from sensors measuring temperature, pressure, flow rate, and other parameters. Here's a detailed guide for connecting this ADC in such a system:

1. Power Supply Connection: Connect a 5V source to the VDD pin to power the ADC.

2. Analog Sensor Inputs: Attach the outputs of various sensors to the analog input pins (AIN0-AIN7) for simultaneous sampling.

3. Serial Interface Configuration: Connect the SCLK, SDI, and SDO pins to the corresponding SPI interface pins on a microcontroller for efficient data communication.

4. Chip Select: Connect the CS pin to a control output on the microcontroller to enable data transfer.

5. Ground Connection: Ensure that the GND pin is connected to the system ground to provide a stable reference for the ADC.

Circuit Design Considerations

When designing a circuit with the AD7328BRUZ-REEL7, it is crucial to consider the following:

- Signal Integrity: Employ proper routing and shielding techniques to minimize noise and interference in analog signal paths.

- Power Supply Decoupling: Place decoupling capacitors close to the VDD pin to ensure a stable and noise-free power supply.

- Sensor Compatibility: Check that the sensors' output voltage ranges are compatible with the ADC's input voltage range for accurate measurement.

By incorporating the AD7328BRUZ-REEL7 into a distributed control system for industrial automation, designers can achieve precise and simultaneous monitoring of multiple sensor signals, enabling effective control and optimization of industrial processes.
