Analog Devices Inc. AD7276ARMZ-REEL

Part No.:: AD7276ARMZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: AD7276ARMZ-REEL.pdf

Description:: IC ADC 12BIT SAR 8MSOP

In Stock:: 3096

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7276ARMZ-REEL Specifications

Packaging:
Tape & Reel (TR),Bulk
Series:
-
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
3M
Number of Inputs:
1
Input Type:
Single Ended
Data Interface:
SPI, DSP
Configuration:
S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
Supply
Voltage-Supply Analog:
2.35V ~ 3.6V
Voltage-Supply Digital:
2.35V ~ 3.6V
Features:
-
Operating Temperature:
-40°C ~ 125°C

AD7276ARMZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7276ARMZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7276ARMZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7276ARMZ-REEL information

Views：

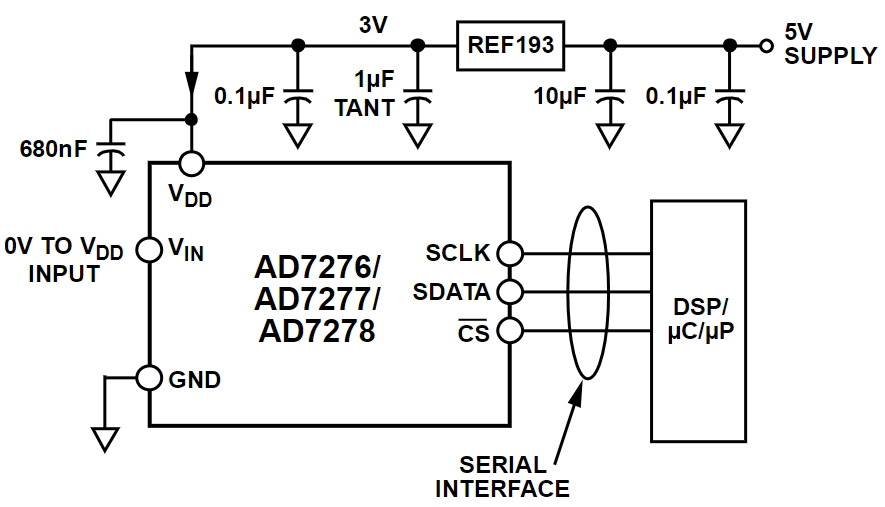

AD7276ARMZ-REEL Typical application Circuitry

AD7276ARMZ-REEL

The AD7276ARMZ-REEL is a 12-bit analog-to-digital converter (ADC) that offers high-speed data conversion with a serial interface. This chip is specifically designed for applications that require rapid and accurate conversion of analog signals to digital form, such as in portable battery-powered devices and data acquisition systems.

The Main Characteristics of AD7276ARMZ-REEL

1. High-Speed Operation: This feature enables rapid data conversion rates, which makes it appropriate for applications that need to respond quickly.

2. Low Power Consumption: Perfect for portable and battery-operated applications where power economy is essential.

3. Serial Interface: Facilitates easy integration with microcontrollers or digital signal processors for efficient data communication.

Application Example: Portable Data Logger

In a portable data logger for environmental monitoring, the AD7276ARMZ-REEL can be used to convert analog sensor signals into digital data for storage and analysis. Here's a detailed circuit connection guide for this application:

1. Power Supply Connection: Connect a 3.3V source to the VDD pin to power the ADC.

2. Analog Sensor Input: Attach the output of an environmental sensor (e.g., temperature or humidity sensor) to the IN pin for analog signal conversion.

3. Serial Interface Configuration: Connect the SCLK, SDI, and SDO pins to the corresponding SPI interface pins on a microcontroller for data communication.

4. Ground Connection: To give the ADC a reference point, make sure the GND pin is connected to the system ground.

Circuit Design Considerations

When designing a circuit with the AD7276ARMZ-REEL, it is essential to consider the following:

- Power Supply Stability: Use a stable power supply and place decoupling capacitors near the VDD pin to minimize noise and ensure accurate ADC operation.

- Signal Integrity: Keep the analog input trace short and shielded to prevent noise interference and ensure accurate signal conversion.

- Data Communication: Ensure proper communication between the ADC and the microcontroller by correctly configuring the SPI interface and using appropriate pull-up/pull-down resistors if necessary.

By integrating the AD7276ARMZ-REEL into a portable data logger for environmental monitoring, designers can achieve efficient and accurate conversion of analog sensor signals into digital data, enabling effective data storage and analysis in portable and battery-powered applications.
