Analog Devices Inc. AD7194BCPZ-REEL7

Part No.:: AD7194BCPZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 32-WFQFN Exposed Pad, CSP

Datasheet:: AD7194BCPZ-REEL7.pdf

Description:: IC ADC 24BIT SIGMA-DELTA 32LFCSP

In Stock:: 186

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7194BCPZ-REEL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Number of Bits:
24
Sampling Rate(PerSecond):
-
Number of Inputs:
8, 16
Input Type:
Differential, Pseudo-Differential
Data Interface:
SPI, DSP
Configuration:
MUX-PGA-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
3V ~ 5.25V
Voltage-Supply Digital:
2.7V ~ 5.25V
Features:
PGA
Operating Temperature:
-40°C ~ 105°C

AD7194BCPZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7194BCPZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7194BCPZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7194BCPZ-REEL7 information

Views：

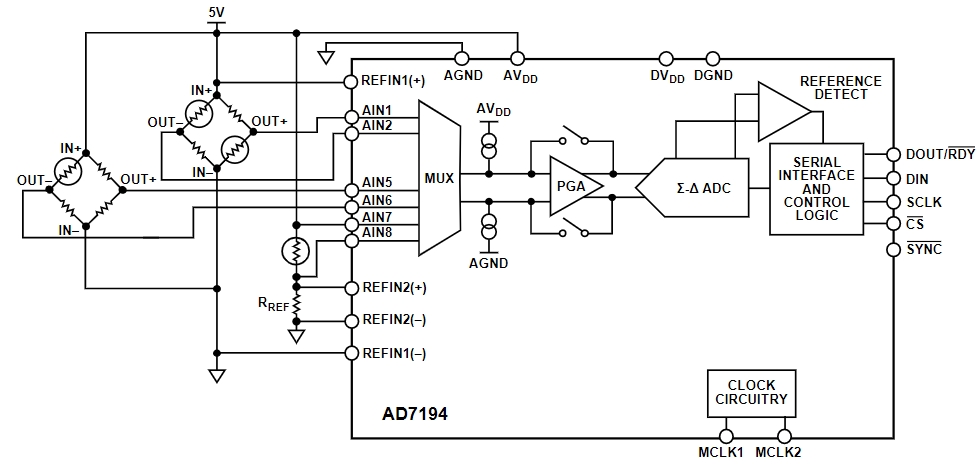

AD7194BCPZ-REEL7 Typical application Circuitry

AD7194BCPZ-REEL7

A full analog front end with minimal noise for high precision measurement applications is the AD7194BCPZ-REEL7. It has a very low noise programmable gain amplifier (PGA) and a 24-bit sigma-delta (Σ-Δ) analog-to-digital converter (ADC).

Function: The primary function of the AD7194BCPZ-REEL7 is to convert analog signals into high-resolution digital data. It is designed for applications requiring high accuracy and low noise, such as process control, temperature measurement, and weighing systems.

Application Scenarios: This AD7194BCPZ-REEL7 chip is commonly used in industrial and instrumentation applications, including temperature and pressure measurement systems, medical devices, and process control systems.

Parameter Features: The AD7194BCPZ-REEL7 features a 24-bit Σ-Δ ADC, a low noise PGA with gain settings from 1 to 128, a 4.92 kHz output data rate, and a low power consumption of 4.65 mW at 4.92 kHz.

Circuit Design for Temperature Measurement System:

1. Power Supply: Connect a stable +3.3V power supply to the AVDD and DVDD pins (pins 23 and 22, respectively) for analog and digital power. Decouple these pins with 10 µF and 0.1 µF capacitors to ground to ensure power supply stability.

2. Reference Voltage: Connect a 2.5V precision reference voltage to the REFIN+/REFIN- pins (pins 13 and 14). This reference voltage determines the full-scale range of the ADC.

3. Analog Input: Connect the AD7194BCPZ-REEL7 positive and negative terminals of a temperature sensor (e.g., RTD or thermocouple) to the AIN1+ and AIN1- pins (pins 15 and 16) for differential input.

4. Clock Source: Connect an external 4.9152 MHz crystal oscillator between the MCLK1 and MCLK2 pins (pins 9 and 10) to provide a clock source for the ADC.

5. Digital Interface: Connect the SPI interface pins (CS, SCLK, DIN, and DOUT/RDY) to the microcontroller for data communication. CS is pin 24, SCLK is pin 6, DIN is pin 5, and DOUT/RDY is pin 7.

6. Configuration: Configure the ADC through the SPI interface to set the desired gain, channel, and filter settings for the temperature measurement.

7. Data Acquisition: Monitor the DOUT/RDY pin for data ready indication and read the 24-bit conversion result through the SPI interface.

Design Considerations:

- Ensure that the power supply and reference voltage are stable and noise-free to maintain the accuracy of the ADC.

- Use proper filtering and shielding techniques to minimize noise and interference in the analog input signal.

- Consider the thermal drift and non-linearity of the temperature sensor and calibrate the system accordingly.

- Implement error checking and handling in the software to detect and correct communication errors or ADC overrange conditions.
