Analog Devices Inc. AD7191BRUZ-REEL

Part No.:: AD7191BRUZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 24-TSSOP (0.173, 4.40mm Width)

Datasheet:: AD7191BRUZ-REEL.pdf

Description:: IC ADC 24BIT SIGMA-DELTA 24TSSOP

In Stock:: 2605

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7191BRUZ-REEL Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
Product Status:
Active
Number of Bits:
24
Sampling Rate(PerSecond):
-
Number of Inputs:
2
Input Type:
Differential
Data Interface:
SPI
Configuration:
MUX-PGA-ADC
Ratio-S/H:ADC:
-
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External
Voltage-Supply Analog:
3V ~ 5.25V
Voltage-Supply Digital:
2.7V ~ 5.25V
Features:
PGA
Operating Temperature:
-40°C ~ 105°C

AD7191BRUZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7191BRUZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7191BRUZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7191BRUZ-REEL information

Views：

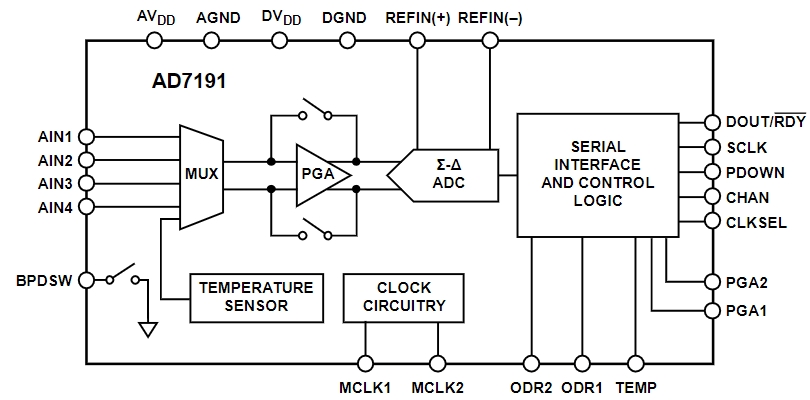

AD7191BRUZ-REEL Typical application Circuitry

AD7191BRUZ-REEL

The AD7191BRUZ-REEL is a low noise, complete analog front end for high precision measurement applications. It contains a 24-bit sigma-delta (Σ-Δ) analog-to-digital converter (ADC) and is well-suited for applications like weigh scales, pressure measurement, and temperature monitoring systems.

Application Scenarios:

The AD7191BRUZ-REEL is ideal for applications requiring high precision and low noise measurements, such as industrial weigh scales, process control systems, and medical instrumentation.

Key Features:

1. Resolution: The ADC offers a 24-bit resolution, ensuring high accuracy in measurements.

2. Input Channels: It supports 4 differential or 8 single-ended input channels, providing flexibility in sensor connections.

3. Data Rate: The device features a programmable data rate up to 4.8 kSPS, suitable for various sampling requirements.

4. Internal Reference: It includes a low noise internal reference, ensuring stable and accurate reference voltage.

5. Interface: The ADC provides a serial interface compatible with SPI for easy integration with microcontrollers or digital processors.

6. Power Supply: The device operates from a single 3 V or 5 V power supply, accommodating different system power requirements.

Circuit Design for a Weigh Scale:

1. Load Cell Connection:

- Differential Inputs: Connect a load cell to the differential inputs AIN1+ and AIN1- of the AD7191BRUZ-REEL. The load cell's positive output should be connected to AIN1+, and the negative output to AIN1-.

2. Reference Voltage:

- Internal Reference Usage: Utilize the internal reference of the AD7191BRUZ-REEL by connecting REF+ to AVDD and REF- to AVSS, ensuring a stable reference for the ADC.

3. Power Supply:

- Voltage Supply Connection: Power the AD7191BRUZ-REEL with a 5 V supply connected to the AVDD pin, with AVSS connected to ground.

4. Digital Communication:

- SPI Setup: Interface the AD7191BRUZ-REEL with a microcontroller using the SPI pins (CS, SCLK, SDI, SDO) for data communication.

5. Filtering:

- Input Filtering: Implement a low-pass filter at the analog inputs (AIN1+ and AIN1-) to attenuate noise and enhance measurement accuracy.

Design Considerations:

- Noise Management: Pay careful attention to grounding and PCB layout to minimize noise coupling into the sensitive analog inputs.

- Thermal Considerations: Ensure the load cell and ADC are placed in a thermally stable environment to reduce errors due to temperature fluctuations.

- Sensor Calibration: Calibrate the weigh scale system to correct any offset or gain errors in the ADC or load cell.

By adhering to these design principles and leveraging the features of the AD7191BRUZ-REEL, a precise and reliable weigh scale system can be developed.
