Analog Devices Inc. AD623BRZ-RL

Part No.:: AD623BRZ-RL

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: AD623BRZ-RL.pdf

Description:: IC INST AMP 1 CIRCUIT 8SOIC

In Stock:: 2164

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD623BRZ-RL Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
AmplifierType:
Instrumentation
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
0.3V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
800 kHz
Current-InputBias:
17 nA
Voltage-InputOffset:
25 µV
Current-Supply:
375µA
Current-Output/Channel:
-
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
12 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD623BRZ-RL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD623BRZ-RL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD623BRZ-RL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD623BRZ-RL information

Views：

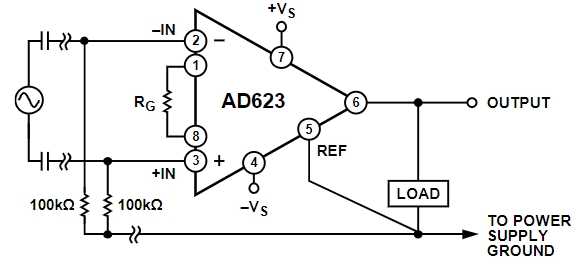

AD623BRZ-RL Typical application Circuitry

AD623BRZ-RL

The AD623BRZ-RL is a highly versatile and precise instrumentation amplifier, specifically engineered for applications where low power consumption, high accuracy, and ease of use are paramount. It is frequently employed in scenarios such as medical instrumentation, sensor signal conditioning, and industrial process monitoring.

Key Features:

1. Flexible Power Supply Options: It operates seamlessly with a single supply ranging from +3 V to +12 V or dual supplies from ±3 V to ±6 V.

2. User-Friendly Gain Adjustment: The gain can be conveniently set using an external resistor, allowing for easy customization across a variety of applications.

3. Exceptional Input Impedance: The high input impedance makes it ideal for interfacing with high-impedance sources, ensuring minimal signal distortion.

4. Comprehensive Output Swing: The AD623BRZ-RL rail-to-rail output swing maximizes the dynamic range, allowing the output to approach the supply rails closely.

Application Scenario - Amplifying Signals from a Photodiode Array in Optical Sensing:

In this scenario, the AD623BRZ-RL is utilized to amplify the signals from a photodiode array used in an optical sensing system.

Detailed Circuit Connection:

1. Power Supply Configuration: Connect a +5 V supply to pin 8 (V+) and ground to pin 4 (V-) for single-supply operation.

2. Photodiode Array Interface: Attach the positive output of the photodiode array to pin 2 (IN+) and the negative output to pin 3 (IN-).

3. Gain Customization: Adjust the amplifier gain by connecting a resistor (Rg) between pins 1 (RG) and 8 (RG), with the gain determined by the formula: Gain = 1 + (50 kΩ / Rg).

4. Output Retrieval: Extract the amplified photodiode signal from pin 6 (OUT).

5. Reference Voltage Setting: If required, set a reference voltage at pin 5 (REF); otherwise, link it to ground.

6. Noise Mitigation: Incorporate decoupling capacitors near the power supply pins to diminish noise and ensure stable operation of the amplifier.

Design Considerations:

- Safeguard High Input Impedance: It is crucial to maintain the high input impedance to prevent adverse loading effects on the photodiode array.

- Minimize Noise Intrusion: Employ shielding and grounding strategies to curtail noise interference in the photodiode signal.

- Stabilize the Amplifier: Exercise caution with capacitive loads on the output to avert potential instability.

- Assure Power Supply Quality: A stable and clean power supply is vital for maintaining the fidelity of the amplified signal.

Employing the AD623BRZ-RL for signal amplification in optical sensing applications enables precise and low-noise processing of photodiode signals. Diligent attention to circuit design and component selection will enhance the performance and reliability of the AD623BRZ-RL in such applications.
