Name: AD620BRZ
Brand: Analog Devices Inc.
SKU: AD620BRZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD620BRZ

Part No.:: AD620BRZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC INST AMP 1 CIRCUIT 8SOIC

In Stock:: 15225

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD620BRZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
Instrumentation
NumberofCircuits:
1
OutputType:
-
SlewRate:
1.2V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
1 MHz
Current-InputBias:
500 pA
Voltage-InputOffset:
15 µV
Current-Supply:
900µA
Current-Output/Channel:
18 mA
Voltage-SupplySpan(Min):
4.6 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD620BRZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD620BRZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD620BRZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD620BRZ information

Views：

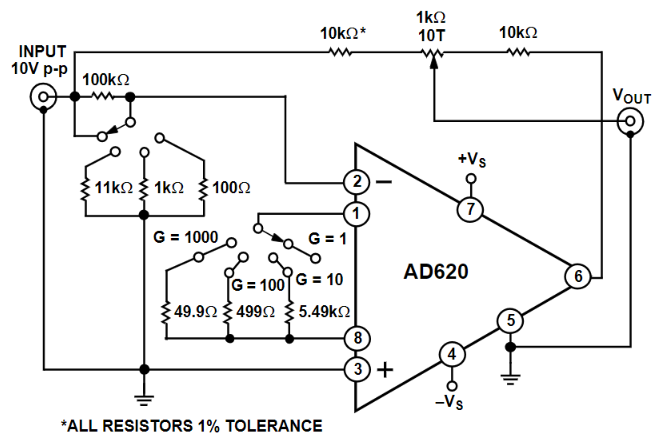

AD620BRZ Typical application Circuitry Schematics

The AD620BRZ from Analog Devices is a precision, low power, low cost, high accuracy instrumentation amplifier that is particularly well suited for differential and single-ended input amplification. Here's a high-level outline on how to implement it in an application circuit. However, always refer to the manufacturer's datasheet and application notes for the most accurate and detailed information.

1. Power Supply: Connect the power supply pins (Vs+ and Vs-) to your positive and negative power supply. The AD620BRZ can handle power supply voltages from ±2.3V to ±18V.
2. Gain Setting: Set the gain of the amplifier using a single resistor (RG) connected between pins 1 and 8. The gain can be set anywhere between 1 and 10,000 according to the formula provided in the datasheet.
3. Differential Input: Connect your differential signal to the non-inverting input (IN+) and inverting input (IN-). The AD620BRZ will amplify the difference between these two signals.
4. Output: Connect your load to the output pin (Out). The AD620BRZ will output a voltage that is proportional to the difference between the inputs, amplified by the gain set by RG.
5. Reference Pin: The AD620BRZ reference pin (Ref) can be used to set the output offset voltage if needed.
6. Decoupling Capacitors: Place decoupling capacitors close to the power supply pins to filter out high-frequency noise from the power supply.
7. Grounding: Ensure all ground connections, including power supply ground, signal ground, and digital ground, are properly made. Be mindful of ground loops, which can introduce noise.
8. Protection Components: Depending on your circuit requirements and the environment, consider using protection components such as ESD diodes and inrush limiting resistors.
Remember, these are general guidelines and may not cover every detail or requirement of your specific application. Always refer to the datasheet and other relevant technical documentation for complete design information.

AD620BRZ FAQ

1. How to order AD620BRZ on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that AD620BRZ is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the AD620BRZ. All suppliers must pass our qualification reviews before they can publish their products including AD620BRZ on icwhale.com; we pay more attention to the channels and quality of AD620BRZ products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the AD620BRZ price and inventory displayed accurate?

The price and inventory of AD620BRZ fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of AD620BRZ?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the AD620BRZ we delivered, we will accept the replacement or return of the AD620BRZ only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of AD620BRZ.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
