Analog Devices Inc. AD620BR-REEL

Part No.:: AD620BR-REEL

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC INST AMP 1 CIRCUIT 8SOIC

In Stock:: 2648

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD620BR-REEL Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
AmplifierType:
Instrumentation
NumberofCircuits:
1
OutputType:
-
SlewRate:
1.2V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
1 MHz
Current-InputBias:
500 pA
Voltage-InputOffset:
15 µV
Current-Supply:
900µA
Current-Output/Channel:
18 mA
Voltage-SupplySpan(Min):
4.6 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD620BR-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD620BR-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD620BR-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD620BR-REEL information

Views：

AD620BR-REEL Typical application Circuitry

AD620BR-REEL

The AD620BR-REEL is a variant of the AD620, a low cost, high precision instrumentation amplifier known for its easy configuration for a wide range of gains. It finds its application in several domains like medical instrumentation, weigh scales, transducer interfacing, and battery-powered devices due to its low power requirements and wide input voltage range.

Application Scenarios

One of the prime applications of AD620BR-REEL is in creating a blood pressure monitoring system. This scenario demands precise and noise-free signal amplification from the pressure sensor.

Parameter Features

Key features of AD620BR-REEL include:

- Wide Power Supply Range: Compatible with batteries and other low voltage supplies.

- Low Power Consumption: Ideal for portable device applications.

- Programmable Gain: Offers flexibility in adjusting signal amplification.

- High Input Impedance: Minimizes the loading on the sensor or signal source.

Specific Circuit Connection - Blood Pressure Monitor

For a blood pressure monitoring system utilizing AD620BR-REEL, the following detailed circuit connections are crucial:

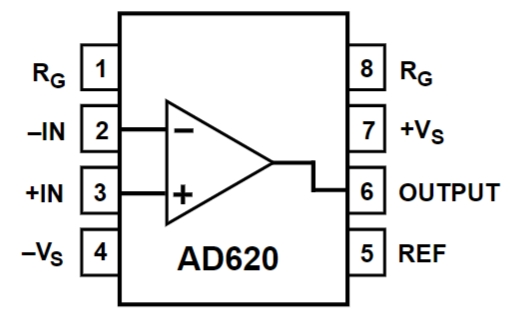

- Power Supply: Connect a suitable power source to pins 7 (+Vs) and 4 (−Vs) of AD620BR-REEL. Given its low power consumption, a battery can be efficiently used.

- Gain Configuration: To set the amplifier gain, a resistor (Rg) needs to be connected between pins 1 and 8. The gain can be calculated based on the required amplification for the sensor output signal to match the ADC input range.

- Signal Inputs: The blood pressure sensor's output should be connected to the input pins of AD620BR-REEL, pin 2 (−IN) and pin 3 (+IN). This configuration ensures differential signal amplification, crucial for accurate readings.

- Output to ADC: The amplified signal is available at pin 6 (OUT). This output should be directed to an ADC for digital processing. The ADC choice depends on the required resolution and precision for the blood pressure measurement.

Design Considerations

When designing circuits with AD620BR-REEL, several factors must be addressed:

- Noise Reduction: Use of low-pass filters to minimize signal noise before amplification is critical. Shielding and proper grounding can also significantly reduce noise interference.

- Power Supply Stability: Since AD620BR-REEL is used in precision applications, the stability of the power supply is vital. Using decoupling capacitors close to the power pins is recommended to filter out power supply noise.

- Gain Accuracy: The accuracy of the gain-setting resistor (Rg) directly affects the system's overall accuracy. Precision resistors should be used to set the gain accurately.

- Thermal Considerations: Even though AD620BR-REEL has low power consumption, in high gain configurations or in environments with significant temperature variations, thermal effects on the circuit's performance should be considered.

Incorporating AD620BR-REEL in a blood pressure monitoring system, with attention to these design considerations, ensures a robust and accurate device capable of delivering reliable measurements.
