Analog Devices Inc. AD620ARZ-REEL7

Part No.:: AD620ARZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC INST AMP 1 CIRCUIT 8SOIC

In Stock:: 791

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD620ARZ-REEL7 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
Instrumentation
NumberofCircuits:
1
OutputType:
-
SlewRate:
1.2V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
1 MHz
Current-InputBias:
500 pA
Voltage-InputOffset:
30 µV
Current-Supply:
900µA
Current-Output/Channel:
18 mA
Voltage-SupplySpan(Min):
4.6 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD620ARZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD620ARZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD620ARZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD620ARZ-REEL7 information

Views：

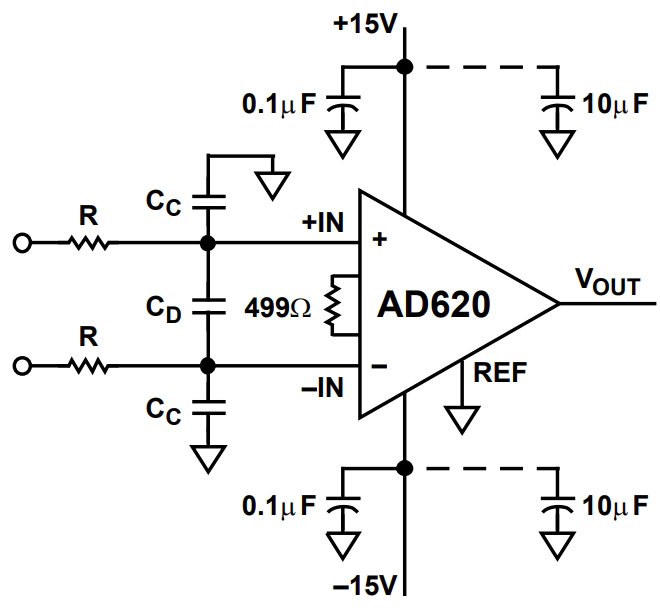

AD620ARZ-REEL7 Typical application Circuitry

Fundamentally, AD620ARZ-REEL7 is a low-power, precision instrumentation amplifier. It's specifically crafted to meet the stringent requirements of systems demanding impeccable accuracy and stability.

Where Does AD620ARZ-REEL7 Shine?

1. Medical Domain: Think of devices such as ECGs or patient monitors. They require precise and clear signal amplification; this chip delivers exactly that.

2. Industrial Sectors: Systems that measure pressure, temperature, or any minute physical changes rely on this chip to transform minuscule signals into understandable data.

3. Scientific Instrumentation: For apparatus that needs impeccable accuracy, such as spectrometers, AD620ARZ-REEL7 is an obvious choice.

Core Attributes of AD620ARZ-REEL7

- Noise Resilience: A pivotal feature is its low-noise operation. It delivers an approximately 1.3 μV p-p noise level.

- Input Bias Current: It boasts an exceptionally low maximum input bias current of about 1.5 nA.

- Flexible Gain Configuration: Depending on the external resistor, users can achieve gains ranging from 1 to 10,000.

- Power Management: Optimally, the chip works between ±2.3 V and ±18 V.

Harnessing AD620ARZ-REEL7 in Medical Monitoring

For integration within medical monitoring devices:

1. Energizing the Component:

- Pin 7 (Vs+): Connect to your positive voltage supply.

- Pin 4 (Vs-): Link to the ground or negative voltage supply. ±15 V is a standard choice for many applications.

2. Signal Input Management:

- Pin 3 (IN+) and Pin 2 (IN-): Here's where the device receives differential signals. Before it reaches the chip, employ a passive filter to weed out potential high-frequency interferences.

3. Manipulating the Gain:

- Pin 1 (RG1) and Pin 8 (RG2): Introduce an external resistor (Rg) between these. Gain is determined as: $ Gain = 1 + \frac{(49.4 kΩ)}{Rg} $.

4. Retrieving the Enhanced Signal:

- Pin 6 (OUT): The amplified signal is ready for extraction, post which it can undergo further processing or visualization.

Ponderables during Design:

- Interference Battles: Despite AD620ARZ-REEL7 being inherently noise-resistant, neighboring components can be culprits for noise. Proper PCB layout planning can be your savior.

- Safety Measures: Especially in the medical realm, any device that interfaces with humans must prioritize electrical safety.

- Smooth Power Delivery: To ensure consistent voltage supply, placing capacitors close to power pins is advisable.

- Fortifying the Inputs: Aiming for ultra-low bias currents? Guard traces around input pins might be the solution.

In essence, the AD620ARZ-REEL7 is akin to the backbone in many crucial applications, ensuring data integrity and clarity. Leveraging its attributes judiciously can pave the way for remarkable system performance.
