Analog Devices Inc. AD620ARZ

Part No.:: AD620ARZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC INST AMP 1 CIRCUIT 8SOIC

In Stock:: 3694

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD620ARZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
Instrumentation
NumberofCircuits:
1
OutputType:
-
SlewRate:
1.2V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
1 MHz
Current-InputBias:
500 pA
Voltage-InputOffset:
30 µV
Current-Supply:
900µA
Current-Output/Channel:
18 mA
Voltage-SupplySpan(Min):
4.6 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD620ARZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD620ARZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD620ARZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD620ARZ information

Views：

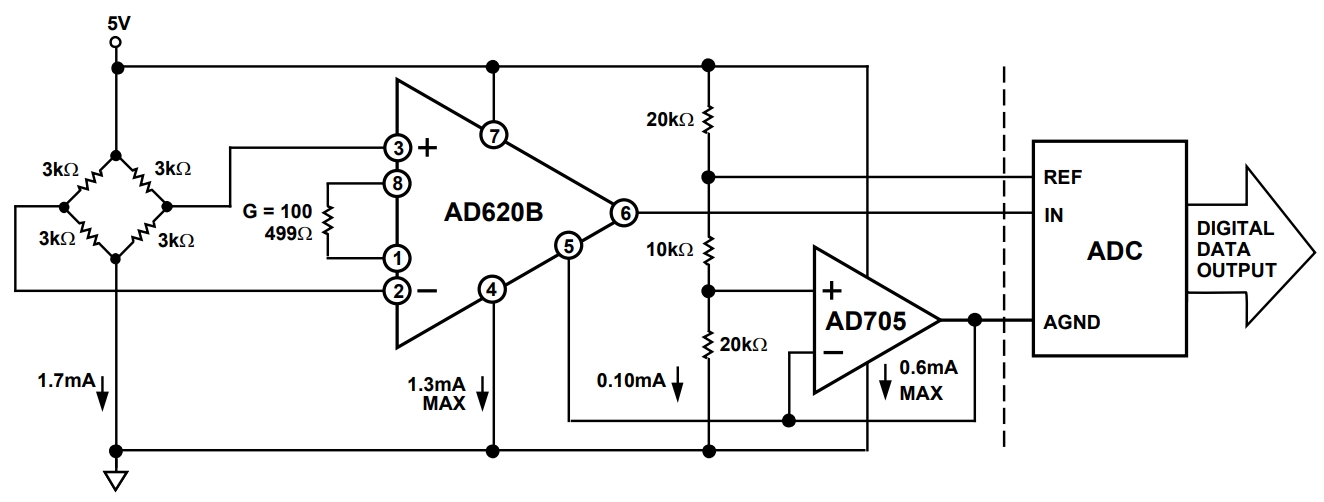

AD620ARZ Typical application Circuitry

The AD620ARZ stands tall as an instrumentation amplifier. Its primary duty is to accentuate differential voltage inputs, doing so with impeccable precision, making it an ally for systems requiring accurate and noise-free amplifications.

Scenarios Perfect for AD620ARZ

1. Healthcare Devices: ECGs, pulse oximeters, and other medical apparatus employ this chip to amplify bodily signals with precision.

2. Weighing Scales: Often chosen for scales, especially when based on strain gauges, to amplify tiny deformations into discernible data.

3. Data Collection Systems: Useful in amplifying micro-signals from sensors to interpretable and usable data.

AD620ARZ at a Glance: Key Features

- Noise Factor: With a low noise design, the chip achieves a noise level of roughly 1.3 μV p-p.

- Input Bias Current: Sports an impressive maximum of 1.5 nA, perfect for myriad applications.

- Gain Control: Users have the luxury of setting the gain anywhere from 1 to 10,000, using just an external resistor.

- Voltage Specifications: The AD620ARZ operates optimally between ±2.3 V and ±18 V.

A Closer Look: Incorporating AD620ARZ in ECG Machines

For integrating the AD620ARZ within ECG devices:

1. Powering the Beast:

- Pin 7 (Vs+): This pin should be connected to the positive voltage source.

- Pin 4 (Vs-): This meets the ground or the negative power terminal. Typically, a voltage of ±15 V works wonders.

2. Channeling the Heartbeat:

- Pin 3 (IN+) and Pin 2 (IN-): These are where the differential signals from the heart, captured by electrodes, enter. A passive filter beforehand can help to remove any high-frequency noises.

3. Customizing the Gain:

- Pin 1 (RG1) and Pin 8 (RG2): Introducing an external resistor (Rg) between these pins can help set the desired gain. The relation is: $ Gain = 1 + \frac{(49.4 kΩ)}{Rg} $.

4. Extracting the Amplified Output:

- Pin 6 (OUT): This pin will showcase the amplified ECG signal, which can then be sent to displays or additional processing modules.

Design Nuances to Consider:

- Noisy Neighbors: Although AD620ARZ itself is adept at low noise operations, surrounding electronic components can introduce interference. Planning the PCB layout meticulously is crucial.

- Safety Comes First: When dealing with human-linked devices, ensuring electrical safety through effective protection mechanisms is of utmost importance.

- Stabilizing Power Supplies: Placing decoupling capacitors adjacent to the power pins can help in steadying the supply voltage.

- Guarding the Inputs: To achieve even lower bias currents, considering guard traces around the input pins can be a beneficial move.

The AD620ARZ is undeniably an unsung hero in the electronics field. When implemented with precision and attention, it forms the cornerstone of many a successful venture.
