Analog Devices Inc. AD620AR

Part No.:: AD620AR

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC INST AMP 1 CIRCUIT 8SOIC

In Stock:: 3845

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD620AR Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Obsolete
AmplifierType:
Instrumentation
NumberofCircuits:
1
OutputType:
-
SlewRate:
1.2V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
1 MHz
Current-InputBias:
500 pA
Voltage-InputOffset:
30 µV
Current-Supply:
900µA
Current-Output/Channel:
18 mA
Voltage-SupplySpan(Min):
4.6 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD620AR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD620AR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD620AR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD620AR information

Views：

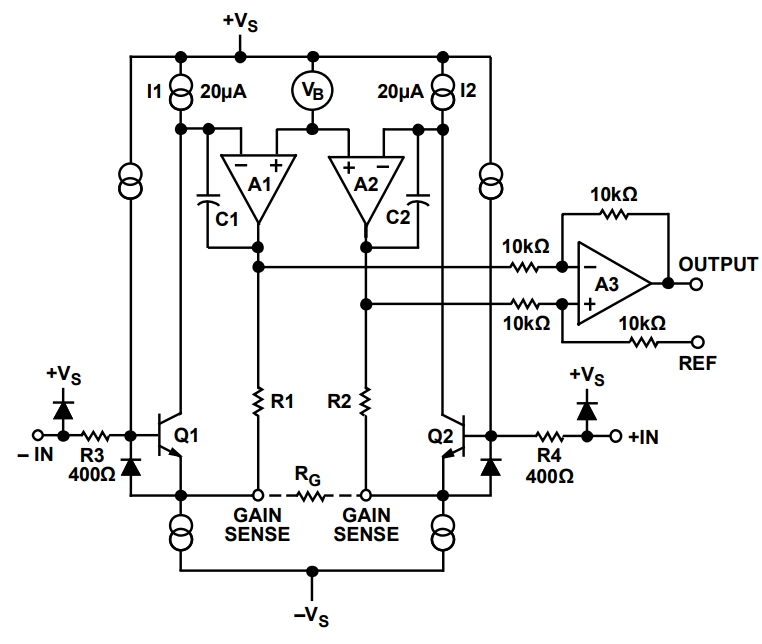

AD620AR Typical application Circuitry

The AD620AR is essentially an instrumentation amplifier. What makes it stand apart is its capability to amplify differential voltage inputs with utmost precision.

Environments Where AD620AR Flourishes

- Medical Instruments: Devices like heart rate monitors and blood pressure meters often trust this chip for its accuracy.

- Strain Gauges: When you require sensitive amplification for minute deformations.

- Data Acquisition Systems: Ideal for translating minute sensor outputs into readable data.

Delving into the Features of AD620AR

- Minimal Noise: Sporting a low noise of around 1.3 μV p-p, it promises clean and clear amplification.

- Superior Input Bias Current: A maximum of 1.5 nA, making it quite efficient for a plethora of sensor applications.

- Flexible Gain Adjustment: Using a single external resistor, you can achieve gains from 1 to 10,000.

- Voltage Range: The chip thrives between ±2.3 V and ±18 V.

Zooming in: Using AD620AR in Heart Rate Monitors

To employ the AD620AR in heart rate monitor systems:

1. Energizing the Chip:

- Pin 7 (Vs+) gets connected to your positive power source, whereas Pin 4 (Vs-) meets the negative power source. The typical range to consider is ±15 V.

2. Feeding in the Heart Signals:

- Pin 3 (IN+) and Pin 2 (IN-) are your best friends here. Attach the differential leads from the heart rate sensor to these pins. Including a passive filter to fend off high-frequency disturbances can be a masterstroke.

3. Tailoring the Gain:

- The pins to focus on are Pin 1 (RG1) and Pin 8 (RG2). By introducing an external resistor (Rg) between them, you dictate the gain. The mathematical relation is: $ Gain = 1 + \frac{(49.4 kΩ)}{Rg} $.

4. Harvesting the Output:

- Pin 6 (OUT) will present the amplified heart rate signal, which can be forwarded to screens or processors for interpretation.

Crafting with Caution:

- Combatting Noise: Even though the AD620AR is adept at handling noise, ambient electronic disturbances can be tricky. It's wise to chalk out the PCB layout keeping the AD620AR away from rambunctious high-frequency routes.

- Input Protection: Given that heart rate monitors interface with humans, ensuring safety through robust protection mechanisms is non-negotiable.

- Supply Stabilization: Plant decoupling capacitors near the power pins. This anchors the power supply and prevents unwanted fluctuations.

- Guard Tactics: If you're chasing ultra-low bias currents, deploying guard rings around the input pins can work wonders.

The AD620AR, with its impeccable features, is undoubtedly an asset in the electronics arena. When navigated with understanding and care, it can be the lynchpin for many successful projects.
