Analog Devices Inc. AD620AN

Part No.:: AD620AN

Manufacturer:: Analog Devices Inc.

Package:: 8-DIP (0.300, 7.62mm)

Datasheet:

Description:: IC INST AMP 1 CIRCUIT 8DIP

In Stock:: 2222

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD620AN Specifications

Package/Case:
8-DIP (0.300, 7.62mm)
Packaging:
Bulk,Tube,Tube
Series:
-
ProductStatus:
Obsolete
AmplifierType:
Instrumentation
NumberofCircuits:
1
OutputType:
-
SlewRate:
1.2V/µs
GainBandwidthProduct:
-
-3dbBandwidth:
1 MHz
Current-InputBias:
500 pA
Voltage-InputOffset:
30 µV
Current-Supply:
900µA
Current-Output/Channel:
18 mA
Voltage-SupplySpan(Min):
4.6 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

AD620AN this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD620AN price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD620AN to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD620AN information

Views：

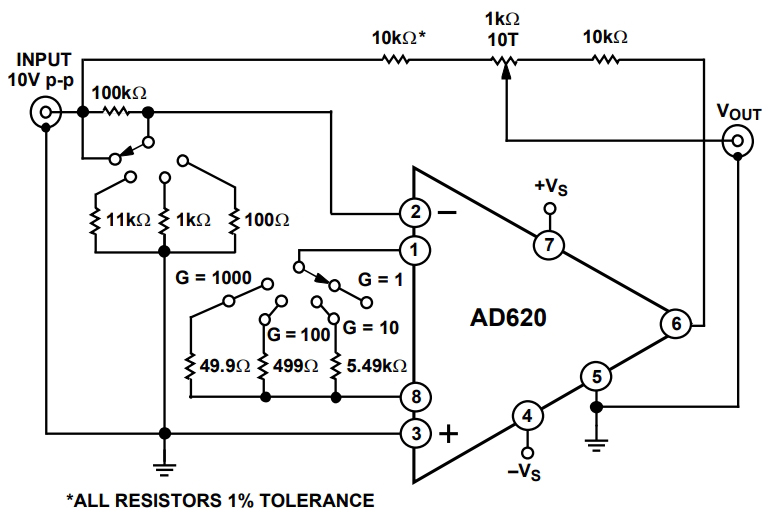

AD620AN Typical application Circuitry

The AD620AN, a type of differential amplifier that magnifies the difference between its input voltages, is fundamentally an instrumentation amplifier. This amplifier is revered for its impressive combination of accuracy, low cost, and ease of use.

The Playground of AD620AN

- Medical Devices: Instrumentation like ECGs and pulse oximeters, where precision and noise immunity are paramount.

- Weigh Scales: Where minute changes need accurate amplification.

- Industrial Process Controls: In systems that monitor or control industrial processes based on sensor outputs.

Noteworthy Attributes of AD620AN

- Low Noise: With just 1.3 μV p-p of noise, it ensures a clean signal amplification.

- Low Input Bias Current: Boasting a figure of 1.5 nA max, which is favorable for many sensor interfaces.

- Gain Set with One External Resistor: Provides gains ranging from 1 to 10,000.

- Supply Voltage: Operates optimally between ±2.3 V and ±18 V.

Spotlight on Application: ECG Amplification

Harnessing the AD620AN for Electrocardiogram (ECG) signal amplification:

1. Setting the Power:

- Pin 7 (Vs+) and Pin 4 (Vs-): Connect these to the positive and negative power supplies respectively, ideally within the range of ±15 V.

2. Input Signals:

- Pin 3 (IN+) and Pin 2 (IN-): Connect the differential ECG electrodes here. It might be beneficial to have a passive low-pass filter before the amplifier to reject high-frequency noise.

3. Gain Configuration:

- Pin 1 (RG1) and Pin 8 (RG2): Set the desired gain by connecting an external resistor (Rg) between these pins. The gain can be calculated using the formula: $ Gain = 1 + \frac{(49.4 kΩ)}{Rg} $.

4. Output:

- Pin 6 (OUT): This is where you'll get the amplified ECG signal. Connect this to subsequent processing or display units.

Designing with Insight:

- Noise Management: The AD620AN is a low-noise amplifier, but surrounding electronic noise can degrade performance. Ensure that the PCB layout minimizes the path of high-frequency traces near the AD620AN.

- Guard Rings: If ultra-low bias currents are vital, consider using guard rings around the input pins to minimize leakage currents.

- Protection: ECGs, for instance, interface with the human body. It's critical to ensure patient safety through isolation and protection mechanisms.

- Power Supply Decoupling: Use decoupling capacitors close to the power pins to minimize power supply interference.

In the panorama of instrumentation amplifiers, the AD620AN is a compelling choice. However, like every electronic component, it demands respect for its intricacies. When wielded with knowledge and precision, it's a formidable tool in the engineer's arsenal.
