What is the Additional Feature ?

Name: AD549SH/883B
Brand: Analog Devices Inc.
SKU: AD549SH/883B
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD549SH/883B

Part No.:: AD549SH/883B

Manufacturer:: Analog Devices Inc.

Package:: TO-99-8 Metal Can

Datasheet:: AD549SH/883B.pdf

Description:: IC OPAMP GP 1 CIRCUIT TO99-8

In Stock:: 3270

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD549SH/883B Specifications

Package/Case:
TO-99-8 Metal Can
Packaging:
Tube
Series:
Military, MIL-STD-883
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
-
SlewRate:
3V/µs
GainBandwidthProduct:
1 MHz
-3dbBandwidth:
-
Current-InputBias:
0.075 pA
Voltage-InputOffset:
300 µV
Current-Supply:
600µA
Current-Output/Channel:
20 mA
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Through Hole

AD549SH/883B this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD549SH/883B price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD549SH/883B to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD549SH/883B information

Views：

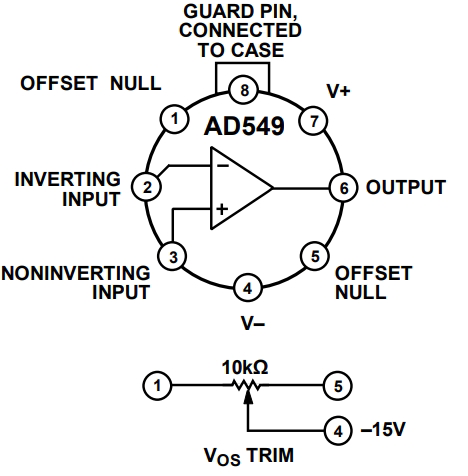

AD549SH/883B Typical application Circuitry

AD549SH 883B

The AD549SH/883B is an ultra-low input bias current operational amplifier (op-amp) with high precision and stability. It is designed for applications that require very low input currents, such as electrometer amplifiers, photodiode amplifiers, and high-impedance buffering in sensitive measurement equipment.

Applications

This op-amp is suited for:

- Electrometer Amplifiers: In applications requiring the measurement of extremely small currents.

- Photodiode Amplifiers: For accurate conversion of light into electrical signals in optical systems.

- High-Impedance Buffering: In measurement equipment where minimal loading of the signal source is crucial.

Key Specifications

- Input Bias Current: Exceptionally low, typically in the femtoampere range, minimizing errors in high-impedance applications.

- Offset Voltage: Low, typically around 1 mV, ensuring accuracy in signal amplification.

- Supply Voltage Range: Operable within ±5 V to ±15 V, providing versatility in various circuit designs.

- Package: Enclosed in a hermetic TO-99 package, offering robustness and reliability.

Circuit Design Example: Electrometer Amplifier

To construct an electrometer amplifier using the AD549SH/883B, follow these detailed instructions:

1. Power Supply Connections

- Connect the positive supply voltage (+V) to pin 7 of the AD549SH/883B.

- Connect the negative supply voltage (-V) to pin 4.

- Ground the circuit common to pin 3.

2. Input Stage

- Connect the high-impedance source to the non-inverting input (pin 3) of the AD549SH/883B.

3. Feedback Network

- Place a high-value feedback resistor (Rf) between the output (pin 6) and the inverting input (pin 2) to set the gain.

- Optionally, add a feedback capacitor (Cf) in parallel with Rf to tailor the frequency response.

4. Output Configuration

- Connect the output (pin 6) to the next stage or to the measurement equipment.

5. System Setup

- Choose Rf and Cf based on the desired gain and bandwidth.

- Verify that the supplied voltages fall within the AD549SH/883B's operating voltage range.

Design Considerations

- Stability: Design the feedback network to ensure stability across the desired frequency range.

- Power Supply: Use a stable and low-noise power supply to minimize offset and drift errors.

- PCB Layout: Implement careful PCB layout techniques to reduce parasitic capacitance and leakage paths, especially near the high-impedance input.

- Temperature Effects: Take into account component temperature coefficients as changes in temperature can affect the amplifier's accuracy.

By adhering to these guidelines, the AD549SH/883B can be effectively utilized in an electrometer amplifier circuit, providing accurate and stable signal amplification with minimal input bias current.
