Name: AD549LHZ
Brand: Analog Devices Inc.
SKU: AD549LHZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD549LHZ

Part No.:: AD549LHZ

Manufacturer:: Analog Devices Inc.

Package:: TO-99-8 Metal Can

Datasheet:: AD549LHZ.pdf

Description:: IC OPAMP GP 1 CIRCUIT TO99-8

In Stock:: 3514

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD549LHZ Specifications

Package/Case:
TO-99-8 Metal Can
Packaging:
Bulk
Series:
Topgate™
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
-
SlewRate:
3V/µs
GainBandwidthProduct:
1 MHz
-3dbBandwidth:
-
Current-InputBias:
0.04 pA
Voltage-InputOffset:
300 µV
Current-Supply:
600µA
Current-Output/Channel:
20 mA
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Through Hole

AD549LHZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD549LHZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD549LHZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD549LHZ information

Views：

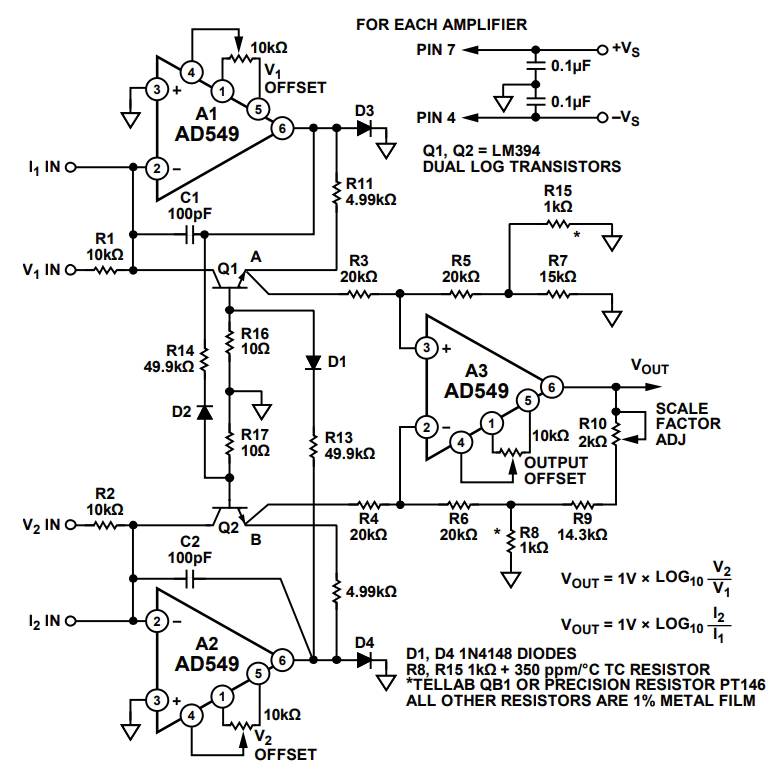

AD549LHZ Typical application Circuitry

AD549LHZ

The AD549LHZ is a high-precision operational amplifier characterized by its ultra-low input bias current, making it suitable for sensitive applications like sensor interfacing, charge amplification, and precision instrumentation.

Applications

This op-amp is particularly useful in:

- Sensor Interfacing: For reading signals from high-impedance sensors without significant loading.

- Charge Amplification: In applications like particle detection where minute charge variations need to be amplified.

- Precision Instrumentation: In devices that require highly accurate signal processing.

Key Specifications

- Input Bias Current: Extremely low, typically in the femtoampere range, reducing error in high-impedance applications.

- Offset Voltage: Low, typically around 1 mV, contributing to the accuracy of the amplifier.

- Supply Voltage Range: Operates within ±5 V to ±15 V, allowing flexibility in circuit design.

- Package: Encased in a TO-99 metal can, ensuring durability and reliability.

Circuit Design Example: High-Impedance Sensor Interface

To interface a high-impedance sensor using the AD549LHZ, consider the following detailed steps:

1. Supply Connections

- Link the positive supply voltage (+V) to pin 7 of the AD549LHZ.

- Attach the negative supply voltage (-V) to pin 4.

- Ground the system common to pin 3.

2. Sensor Connection

- Attach the output of the high-impedance sensor to pin 3 of the AD549LHZ, which is the non-inverting input.

3. Feedback Network

- To adjust the gain, connect a feedback resistor (Rf) between pin 2 (the inverting input) and pin 6 (the output).

- Add a feedback capacitor (Cf) in parallel with Rf if needed to adjust the frequency response and stability.

4. Output Configuration

- The output (pin 6) can be connected to subsequent stages or measurement equipment.

5. System Setup

- Select Rf and Cf values based on the required gain and bandwidth.

- Verify that the supply voltages are within the operational range of the AD549LHZ.

Considerations for Design

- Stability: Design the feedback network to ensure stability across the operational frequency range.

- Power Supply: Utilize a stable and noise-free power supply to minimize errors due to offset and drift.

- PCB Layout: Employ careful PCB layout techniques to reduce parasitic capacitance and leakage paths, especially near the high-impedance input.

- Temperature Effects: Account for the temperature coefficients of components, as temperature changes can impact the accuracy of the amplifier.

By adhering to these design principles, the AD549LHZ can be effectively utilized in a high-impedance sensor interface circuit, providing accurate and reliable signal amplification.
