Analog Devices Inc. AD549KHZ

Part No.:: AD549KHZ

Manufacturer:: Analog Devices Inc.

Package:: TO-99-8 Metal Can

Datasheet:: AD549KHZ.pdf

Description:: IC OPAMP GP 1 CIRCUIT TO99-8

In Stock:: 3539

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD549KHZ Specifications

Package/Case:
TO-99-8 Metal Can
Packaging:
Bulk
Series:
Topgate™
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
-
SlewRate:
3V/µs
GainBandwidthProduct:
1 MHz
-3dbBandwidth:
-
Current-InputBias:
0.075 pA
Voltage-InputOffset:
150 µV
Current-Supply:
600µA
Current-Output/Channel:
20 mA
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Through Hole

AD549KHZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD549KHZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD549KHZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD549KHZ information

Views：

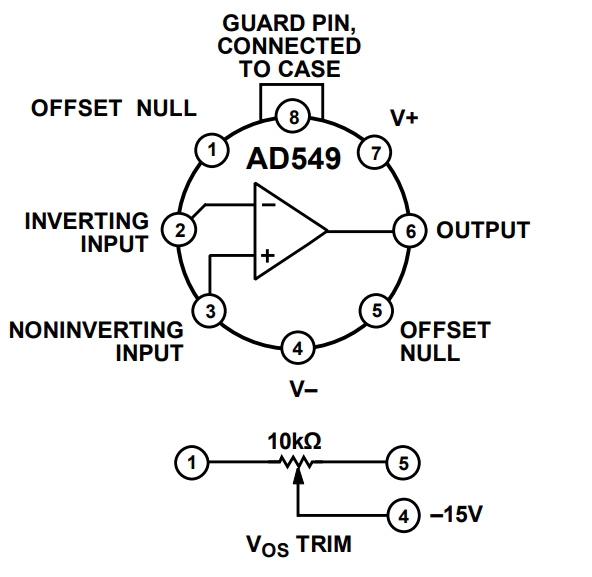

AD549KHZ Typical application Circuitry

In the vast and intricate world of integrated circuits, the AD549KHZ has etched its own significant niche. Let's embark upon an exploration of its inherent capabilities, typical usages, and salient features.

Functionality: The AD549KHZ is an ultralow input bias current operational amplifier (op-amp). Its defining trait is the extremely low input current it can detect and amplify.

Applications: The AD549KHZ is especially handy in scenarios demanding high input impedance and low noise, such as photodiode amplifiers, pH electrode buffers, and precision current-to-voltage converters.

Characteristic Features:

1. Ultra-Low Input Bias Current: The AD549KHZ boasts an impressive femtoampere (fA) level input bias current, which is extremely low.

2. High Input Impedance: This trait is particularly beneficial in applications requiring minimal loading of the input source.

3. Low Noise: With its low noise design, the op-amp can maintain the integrity of weak signals.

4. Wide Bandwidth: Despite its precision characteristics, the op-amp offers a decent bandwidth, making it versatile in various applications.

Application Example - Photodiode Amplifier: Photodiodes generate tiny currents in response to light. These currents can be amplified by the AD549KHZ to produce a voltage output corresponding to light intensity.

Circuit Connection:

1. Power Connections: Bind the +Vs pin to a positive supply voltage (e.g., +15V) and the -Vs pin to its negative counterpart (e.g., -15V). The ground of your system should connect to the common midpoint of these supply voltages.

2. Photodiode Placement: Connect the anode of the photodiode to the ground. The cathode, which produces the photocurrent, is linked directly to the inverting input (-IN) of the AD549KHZ.

3. Feedback Loop: To convert the photocurrent into a voltage, place a feedback resistor (Rf) between the output (OUT) pin and the inverting input (-IN). The value of Rf determines the conversion factor from current to voltage.

4. Non-Inverting Input: The non-inverting input (+IN) is typically grounded for a single-ended operation. But, in some cases, it might be connected to a reference voltage.

5. Output: The output voltage, proportional to the light intensity hitting the photodiode, can be taken from the OUT pin.

Design Considerations:

1. Stability: With high-impedance feedback networks, it's essential to ensure that the AD549KHZ remains stable and doesn't oscillate.

2. Guarding: In high impedance applications, ensure that the input traces are shielded or guarded to prevent leakage currents.

3. Decoupling: Implement decoupling capacitors near the power supply pins to minimize noise and interference.

4. Temperature: The AD549KHZ's ultra-low bias current can be affected by temperature. If precision is paramount, consider maintaining a stable operating environment.

Conclusively, the AD549KHZ is a testament to the marvels of modern electronics, skillfully amplifying minuscule currents without adding significant noise. Whether it's deciphering the subtle changes in light or interpreting delicate chemical reactions, this op-amp is a reliable ally.
