Analog Devices Inc. AD4111BCPZ-RL7

Part No.:: AD4111BCPZ-RL7

Manufacturer:: Analog Devices Inc.

Package:: 40-VFQFN Exposed Pad, CSP

Datasheet:: AD4111BCPZ-RL7.pdf

Description:: IC ADC 24BIT SIGMA-DELTA 40LFCSP

In Stock:: 100

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD4111BCPZ-RL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Number of Bits:
24
Sampling Rate(PerSecond):
6.2k
Number of Inputs:
4, 8
Input Type:
Differential, Single Ended
Data Interface:
Serial, SPI
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
0:1
Number of A/D Converters:
1
Architecture:
Sigma-Delta
Reference Type:
External, Internal
Voltage-Supply Analog:
2V ~ 5.5V
Voltage-Supply Digital:
2V ~ 5.5V
Features:
Internal Oscillator, Temperature Sensor
Operating Temperature:
-40°C ~ 105°C

AD4111BCPZ-RL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD4111BCPZ-RL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD4111BCPZ-RL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD4111BCPZ-RL7 information

Views：

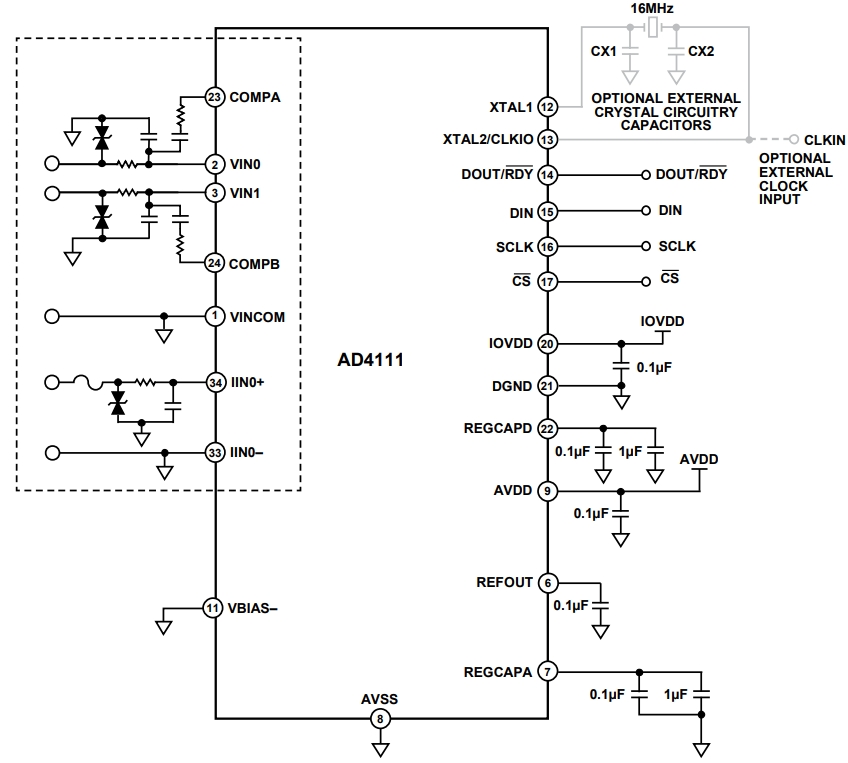

AD4111BCPZ-RL7 Typical application Circuitry

AD4111BCPZ-RL7

The AD4111BCPZ-RL7 is a cutting-edge, 24-bit analog-to-digital converter (ADC) crafted by Analog Devices. Engineered for precise measurements in industrial settings, this chip features an integrated analog front-end (AFE) that supports various sensor inputs, including those for voltage, current, and temperature measurements.

Key Specifications:

1. Resolution: 24-bit ADC ensures high accuracy in measurements.

2. Adaptability: Designed to work with a range of sensors, suitable for multiple industrial applications.

3. Integrated AFE: Reduces the need for external components, streamlining the design.

4. Wide Input Range: Capable of handling different sensor outputs, enhancing its versatility.

Application Example: Industrial Pressure Monitoring System

In an industrial setting where monitoring pressure is crucial, the AD4111BCPZ-RL7 can be utilized to digitize signals from pressure sensors for real-time analysis and control. Here's a detailed connection strategy for this application:

1. Power Supply Setup: Connect the AD4111BCPZ-RL7 AVDD (Pin 32) and DVDD (Pin 6) to a +5V supply, and link AGND (Pin 31) and DGND (Pin 5) to the system ground. This ensures stable power for both the analog and digital circuits.

2. Sensor Connection: Attach a pressure sensor to the AD4111BCPZ-RL7 AIN+ (Pin 15) and AIN- (Pin 14) pins. Use appropriate signal conditioning components to match the sensor's output to the ADC's input range.

3. Reference Voltage: Connect a precise +2.5V reference voltage to the REFIN+ pin (Pin 11) and ground the REFIN- pin (Pin 10) to set the ADC's input voltage range accurately.

4. Clock Input: Provide a stable clock signal to the MCLK pin (Pin 24) to control the ADC's sampling rate.

5. Data Communication: Link the ADC's serial interface pins (SDI, SDO, SCLK, and CS) to a microcontroller or DSP for efficient data transfer and command processing.

Circuit Design Considerations:

- Isolation Techniques: Implement isolation strategies, like magnetic isolation, between the ADC and the industrial control system to shield against electrical disturbances and enhance system dependability.

- Signal Integrity: Apply suitable filtering and signal conditioning to maintain the purity of the sensor signals, crucial for accurate ADC readings.

- Power Supply Noise Reduction: Place decoupling capacitors near the power pins to minimize noise and stabilize the supply voltage, essential for the ADC's precision.

- Clock Signal Quality: Opt for a clock source with minimal jitter to ensure consistent and precise sampling by the ADC.

By following these guidelines and focusing on key design aspects, the AD4111BCPZ-RL7 can be effectively employed in an industrial pressure monitoring system, providing accurate and reliable data for process control and optimization.
