Analog Devices Inc. AD4000BRMZ

Part No.:: AD4000BRMZ

Manufacturer:: Analog Devices Inc.

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:: AD4000BRMZ.pdf

Description:: IC ADC 16BIT SAR 10MSOP

In Stock:: 2447

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD4000BRMZ Specifications

Packaging:
Tube
Series:
-
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
2M
Number of Inputs:
1
Input Type:
Pseudo-Differential
Data Interface:
SPI
Configuration:
ADC
Ratio-S/H:ADC:
0:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External
Voltage-Supply Analog:
2.5V ~ 5V
Voltage-Supply Digital:
1.8V ~ 5V
Features:
-
Operating Temperature:
-40°C ~ 125°C (TJ)

AD4000BRMZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD4000BRMZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD4000BRMZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD4000BRMZ information

Views：

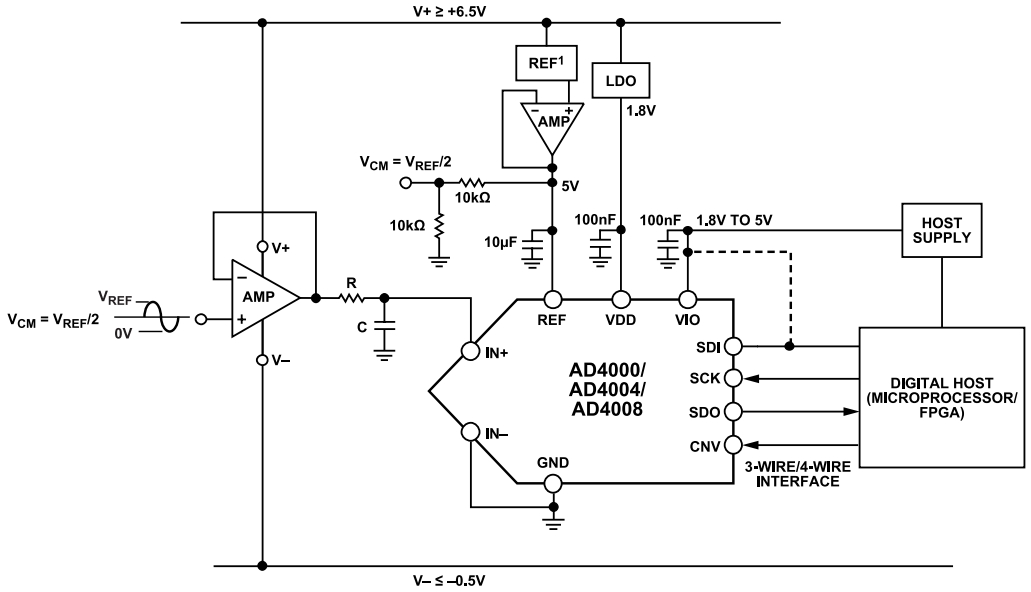

AD4000BRMZ Typical application Circuitry

AD4000BRMZ

The AD4000BRMZ is a high-speed, 16-bit analog-to-digital converter (ADC) chip produced by Analog Devices. It is engineered for applications that demand both precision and efficiency in converting analog signals into digital data.

Applications:

1. Battery-Powered Instruments: In portable devices where energy efficiency is crucial.

2. Data Logging Systems: For accurate recording of sensor data over time.

3. Communication Systems: In signal processing units for converting analog signals to digital form.

Key Features:

1. 16-Bit Resolution: Offers fine granularity in data conversion for precise measurements.

2. Low Power Consumption: Ideal for battery-operated devices where power efficiency is a priority.

3. High-Speed Operation: Capable of fast data acquisition for real-time applications.

Circuit Design for Data Logging Systems:

1. Signal Input: Connect the sensor output to the VIN+ pin (pin 3) of the AD4000BRMZ. For single-ended measurements, ground the VIN- pin (pin 2).

2. Reference Voltage Setup: Attach a stable voltage reference source to the REFIN/REFOUT pin (pin 6) to set the ADC's full-scale range.

3. Serial Communication: Interface the SCLK pin (pin 5) with the microcontroller's serial clock for timing the ADC. Link the SDI pin (pin 4) to the microcontroller's data input for sending commands to the ADC. Connect the SDO pin (pin 1) to the microcontroller's data output to retrieve the conversion results.

4. Power Connections: Supply a voltage between +2.5V to +5.5V to the VDD pin (pin 8) and connect the GND pin (pin 7) to the system ground. Use decoupling capacitors near these pins to ensure a clean power supply.

5. Conversion Trigger: Utilize the CNV pin (pin 9) to start a conversion by toggling it from a low to high state.

Design Considerations:

1. Stable Power Supply: Ensure the AD4000BRMZ power source is free from noise and fluctuations to maintain the ADC's accuracy.

2. Signal Integrity: Implement measures to protect the analog input signal from electromagnetic interference and noise.

3. Precise Reference Voltage: Select a high-accuracy reference voltage to ensure the fidelity of the conversion process.

4. Thermal Considerations: Manage heat dissipation to prevent thermal drift and maintain consistent performance of the AD4000BRMZ.

In summary, the AD4000BRMZ ADC is a valuable component in scenarios where quick and accurate analog-to-digital conversion is required, such as in data logging systems. When integrating this chip into a design, focus on maintaining a stable power supply, ensuring signal integrity, providing an accurate reference voltage, and managing thermal conditions to achieve the best performance.
