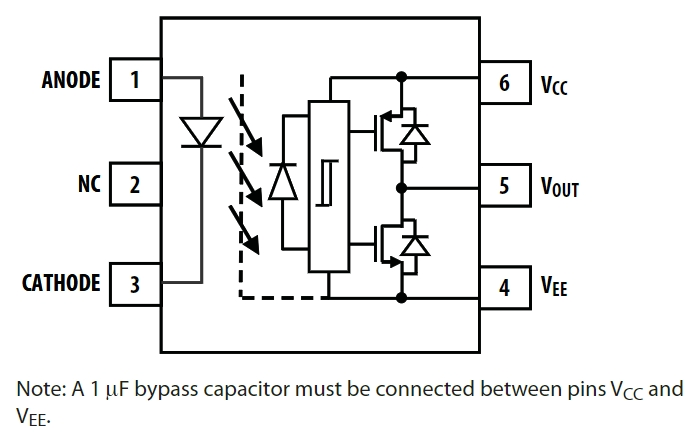

Broadcom Limited ACPL-W341-500E

Part No.:: ACPL-W341-500E

Manufacturer:: Broadcom Limited

Package:: 6-SOIC (0.268, 6.80mm Width)

Datasheet:: ACPL-W341-500E.pdf

Description:: OPTOISO 5KV 1CH GATE DRIVER 6SO

In Stock:: 3501

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ACPL-W341-500E Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Technology:
Optical Coupling
NumberofChannels:
1
Voltage-Isolation:
5000Vrms
CommonModeTransientImmunity(Min):
35kV/µs
PropagationDelaytpLH/tpHL(Max):
200ns, 200ns
PulseWidthDistortion(Max):
70ns
Rise/FallTime(Typ):
43ns, 40ns
Current-OutputHighLow:
2.5A, 2.5A
Current-PeakOutput:
3A
Voltage-Forward(Vf)(Typ):
1.55V
Current-DCForward(If)(Max):
25 mA
Voltage-OutputSupply:
15V ~ 30V
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount
