Broadcom Limited ACPL-333J-500E

Part No.:: ACPL-333J-500E

Manufacturer:: Broadcom Limited

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: ACPL-333J-500E.pdf

Description:: OPTOISO 5KV 1CH GATE DRIVER 16SO

In Stock:: 3825

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ACPL-333J-500E Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Technology:
Optical Coupling
NumberofChannels:
1
Voltage-Isolation:
5000Vrms
CommonModeTransientImmunity(Min):
15kV/µs
PropagationDelaytpLH/tpHL(Max):
250ns, 250ns
PulseWidthDistortion(Max):
100ns
Rise/FallTime(Typ):
50ns, 50ns
Current-OutputHighLow:
2A, 2A
Current-PeakOutput:
2.5A
Voltage-Forward(Vf)(Typ):
1.6V
Current-DCForward(If)(Max):
25 mA
Voltage-OutputSupply:
15V ~ 30V
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

ACPL-333J-500E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ACPL-333J-500E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ACPL-333J-500E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ACPL-333J-500E information

Views：

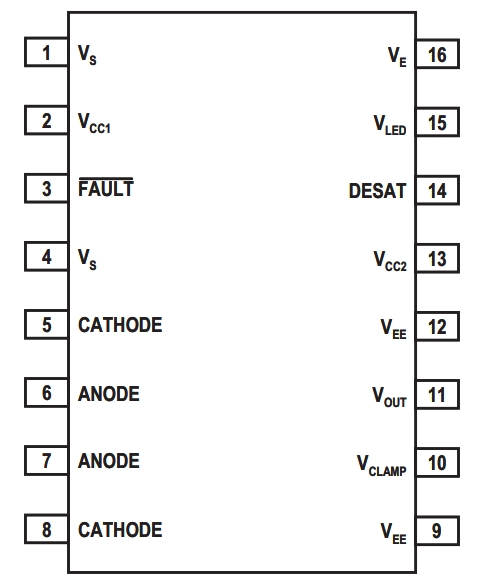

ACPL-333J-500E Typische Anwendungsschaltung

ACPL-333J-500E

ACPL-333J-500E represents a cutting-edge optocoupler designed for driving IGBTs and MOSFETs, integrating features like desaturation detection. Its primary role revolves around delivering an isolated drive signal to power electronics, ensuring smooth operation and safety.

Key Functions:

This chip makes the task of driving IGBTs and MOSFETs not just efficient but safer, providing two vital services: signal isolation and overcurrent detection.

Prime Applications:

1. Renewable Energy Systems such as Wind Turbines

2. Motor Drives and Control Systems

3. Induction Cooktops

4. Uninterruptible Power Supplies (UPS)

Distinguishing Characteristics:

- Drive Current: Highlights the available current for driving the gate of power switches.

- Desaturation Threshold: Dictates the voltage level at which the overcurrent detection kicks in.

- Isolation Strength: Speaks to its capability to endure high voltages between the input and output without electrical breakdown.

- Propagation Delay: Specifies the latency between the input being actuated and the corresponding output response.

Circuit Implementation (For a Motor Drive Scenario):

1. Input Realm:

- LED Drive: Within ACPL-333J-500E, the input stage is characterized by an LED. Interface this with a control signal (like PWM) from a microcontroller, ensuring to add an appropriate current-limiting resistor in series.

2. Output Territory:

- IGBT/MOSFET Drive: Bind the ACPL-333J-500E's VO (Output Voltage) pin with the gate of your IGBT or MOSFET, while the VO- pin is connected to the source terminal.

3. Energizing the Component:

- Isolation Preservation: Use distinct isolated power sources for the output segment, connected to the VCC and VEE pins, ensuring the optocoupler remains powered.

4. Safety Protocols:

- Leveraging Desaturation Detection: Bridge the IGBT/MOSFET's collector and the ACPL-333J-500E's DESAT pin using a resistor. This sets the stage for a rapid shutdown if overcurrent surfaces.

Design Deliberations:

- Turn-On/Off Resistor Selection: Proper resistors, when placed between the optocoupler's VO and the IGBT/MOSFET gate, control switching transitions and eliminate potential oscillations.

- High-Side Driving: For driving high-side switches, consider using a bootstrap configuration, ensuring the VCC of the ACPL-333J-500E receives power during operation.

- Anticipating Voltage Peaks: Place decoupling capacitors close to the VCC and VEE pins. They'll counteract voltage spikes and bolster the stable operation of the ACPL-333J-500E.

In essence, ACPL-333J-500E is an indispensable ally for applications requiring precise and safe drive capabilities.
