Nexperia USA Inc. 74HC573DB-Q100J

Part No.:: 74HC573DB-Q100J

Manufacturer:: Nexperia USA Inc.

Package:: 20-SSOP (0.209, 5.30mm Width)

Datasheet:: 74HC573DB-Q100J.pdf

Description:: IC LATCH TRANSP OCT D 3ST 20SSOP

In Stock:: 2786

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC573DB-Q100J Specifications

Packaging:
Tape & Reel (TR)
Series:
Automotive, AEC-Q100, 74HC
ProductStatus:
Obsolete
LogicType:
D-Type Transparent Latch
Circuit:
1:8
OutputType:
Tri-State
Voltage-Supply:
2V ~ 6V
IndependentCircuits:
1
DelayTime-Propagation:
14ns
Current-OutputHighLow:
7.8mA, 7.8mA
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC573DB-Q100J this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC573DB-Q100J price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC573DB-Q100J to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC573DB-Q100J information

Views：

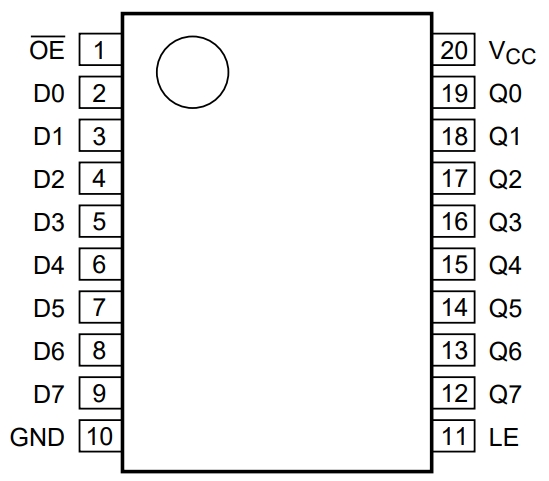

74HC573DB-Q100J Typical application Circuitry

74HC573DB-Q100J

74HC573DB-Q100J is an octal D-type transparent latch with 3-state outputs. It is part of the high-speed CMOS family and is specifically designed for automotive and industrial applications with its Q100 qualification. This IC is used to store 8 bits of data and provide a buffer between data lines and destination components with its 3-state output.

Application Scenarios:

- Data storage and retrieval in automotive control systems

- Interface between sensors and microcontrollers in industrial automation

- Buffering data in communication devices for reliable transmission

Application Scenario - Data Storage and Retrieval in Automotive Control Systems:

Here, 74HC573DB-Q100J will be used to store and retrieve data from sensors in an automotive control system.

1. Power Supply:

- Connect Pin 20 (VCC) to the +5V power supply of the automotive system.

- Connect Pin 10 (GND) to the ground of the system.

2. Data Input:

- Connect the data lines (D0 to D7) to the output pins of the sensors.

3. Control Pins:

- Connect Pin 1 (OE) to a control signal from the automotive control unit (ACU) that will enable the output when low.

- Connect Pin 11 (LE) to a control signal from the ACU that will latch the data when high.

4. Output:

- Connect the output lines (Q0 to Q7) to the input pins of the ACU or other destination components.

5. Testing and Verification:

- Ensure the output data matches the sensor input when the OE and LE signals are active.

Design Considerations:

- Ensure stable sensor data before latching the data with the LE signal.

- The OE signal should be controlled to prevent data contention at the destination component.

- Proper decoupling capacitors should be used to minimize noise in the automotive environment.

By following these steps, the 74HC573DB-Q100J can effectively store and retrieve data from sensors in an automotive control system, providing a reliable means of data communication in the challenging automotive environment.
