CR1216 watch 3V lithium battery: Datasheet & Replacement Guide

If you have a Timex Indiglo or Carriage by Timex watch,You may need to use a CR1216 battery for replacement. This guide will detail CR1216 battery specifications, compatible devices, and replacement methods.

• What is a CR1216 Battery?
• How CR1216 Battery Works
• CR1216 Battery Features
• Timex CR1216 Watch Battery Replacement
• Common reasons why the CR1216 battery does not work after replacement
• Warnings of CR1216 battery

What is a CR1216 Battery?

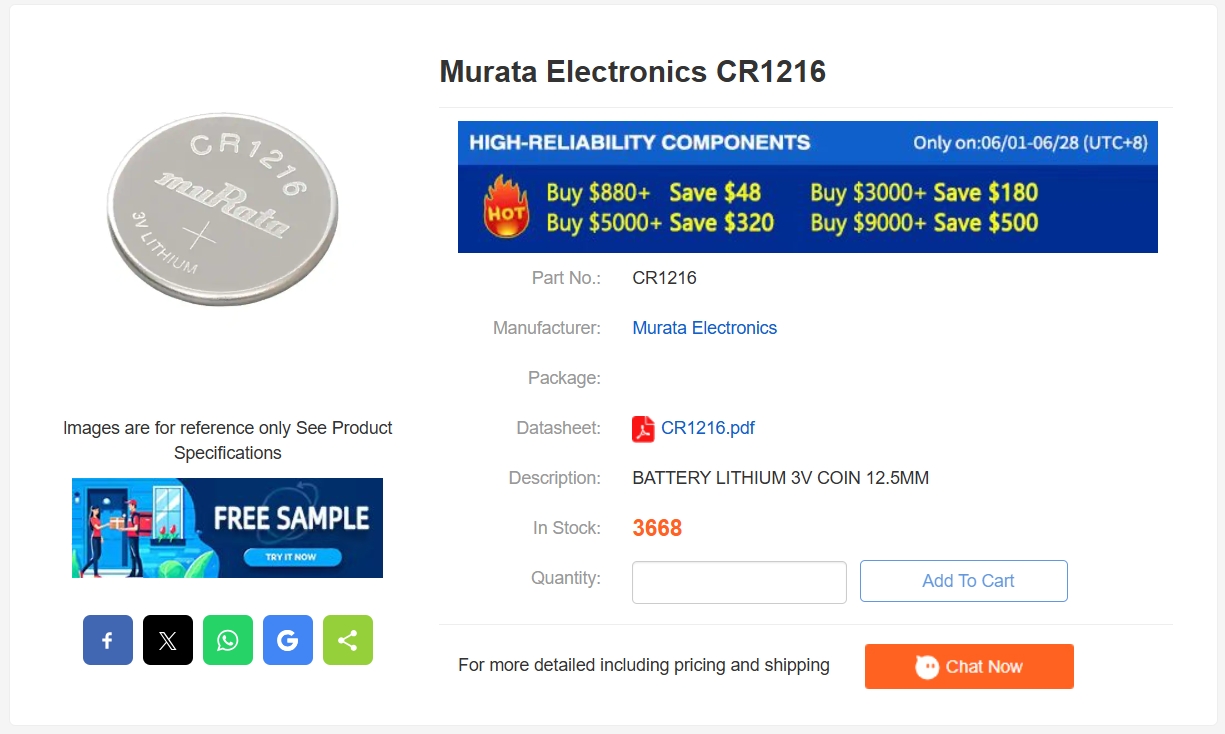

BATTERY LITHIUM 3V COIN 12.5MM

CR1216 is a disposable, non-rechargeable 3V lithium coin cell, this battery type belongs to the CR series, the size of the battery is 12mm in diameter, 1.6mm in thickness, the capacity is 25mAh and the weight is 0.6g. The nominal voltage is 3V, the rated discharge current is 0.1mA, the typical lithium content is 0.008 grams, the self-discharge rate is about 1%/year, and the shelf life is 10 years. The operating temperature range is -20º to 60º F. Commonly used in heart rate or blood glucose monitors, remote controls, keyless entry systems, key fobs, watches, toys and gaming devices, etc. CR1216 type lithium batteries are also used in some specialized equipment such as medical instruments, wireless sensors, and motion monitoring equipment.

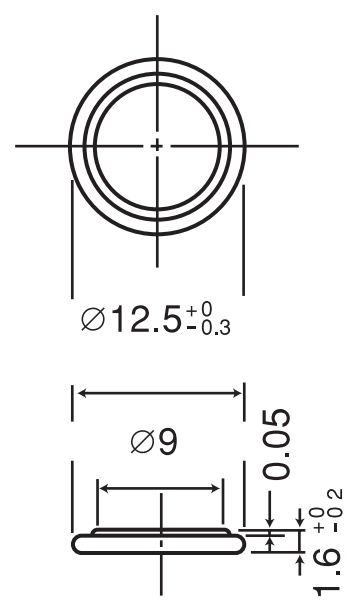

CR1216 battery Size/Dimensions

How CR1216 Battery Works

Battery Chemistry Explained: CR1216 is a Lithium Manganese Dioxide (LiMnO2) battery that utilizes lithium to react with manganese dioxide to generate electrical energy.

How lithium batteries generate electricity: Lithium batteries release electrical energy through redox reactions between the positive and negative electrodes by moving lithium ions through the electrolyte.

Battery Discharge Curve: With use, the voltage of the battery gradually decreases, usually when it is close to the battery is fully discharged, the voltage will drop rapidly. the standard voltage of CR1216 battery is 3V, the voltage will slowly decrease during the discharge process, until the device stops working when it is close to 2V.

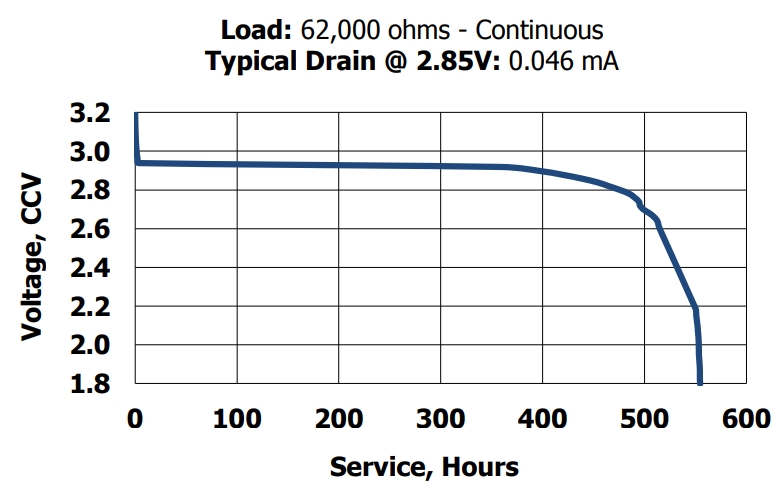

CR1216 Battery Typical Discharge characteristics

CR1216 Battery Features

HIGH ENERGY DENSITY: 3V lithium composition, CR1216 watch battery 5 year longest lasting, no need for frequent replacement.

Lightweight and compact: 12mm diameter, 1.6mm height, suitable for compact devices.

Widely used: strong compatibility, suitable for watches, calculators, toys and other devices.

Stable performance: excellent low-temperature performance, maintain stable voltage during discharge to ensure stable operation of equipment.

High safety: with short circuit protection and anti-leakage design, safer to use.

Low self-discharge rate: long time storage will not lose power easily.

Affordable: Economical and suitable for daily electronic products.

Easy to replace: standard size, easy to replace.

Environmentally friendly and harmless: mercury-free design, in line with environmental standards, recyclable.

Timex CR1216 Watch Battery Replacement

1. Purchase and select regular brand CR1216 3v lithium batteries, inferior battery may lead to shorter life or watch damage.

2. Use a small screwdriver or tool to open the back cover of the Timex CR1216 watch. Be careful not to damage the case.

3. Gently remove the old CR1216 battery using tweezers or your fingers.

4.Place a new CR1216 battery into the battery compartment, making sure it is oriented correctly (positive side up).

5. After confirming that the battery is securely installed in the slot, carefully reinstall the watch back cover and press to secure it.

6. After replacing the battery, check that the watch is working properly. You should be able to see the hands begin to move or the watch begin to keep time. If it is a Timex Indiglo watch, the backlight should light up properly when the buttons are pressed.

How to replace Timex watch battery with no special tools

Common reasons why the CR1216 battery does not work after replacement

Even if you follow the steps to replace the battery, you may still encounter some common problems, and here are a few possible causes and solutions.

Cause 1. Poor contact

Solution: Check the polarity of the battery to ensure that the battery is properly placed and in good contact with the contact point.

Cause 2. The battery is leaking or corroded

Treatment: Handle leakage or corrosion with care. Clean the battery compartment with a clean cloth or paper towel to avoid direct contact with corrosion. In case of severe corrosion, the contact point or battery compartment may need to be replaced.

Cause 3. The battery compartment is faulty

Solution: If the CR1216 battery cell does not fit properly into the battery compartment, check the compartment for foreign objects or damage to ensure that the battery can be installed correctly.

Warnings of CR1216 battery

· Avoid swallowing: Keep these small batteries out of the reach of children. If accidentally swallowed, you should seek medical attention as soon as possible to prevent the batteries from releasing harmful substances.

· Dispose of them properly: Do not throw them in the regular garbage as they can be harmful to the environment.

· Battery recycling: Take batteries to a recycling station or store that participates in a battery recycling program.

CR1216 Battery Datasheet PDF
