Xilinx Inc. XCF04SVO20C

Part No.:: XCF04SVO20C

Manufacturer:: Xilinx Inc.

Package:: 20-TSSOP (0.173, 4.40mm Width)

Datasheet:: XCF04SVO20C.pdf

Description:: IC PROM IN SYST PRG 3.3V 20TSSOP

In Stock:: 3672

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XCF04SVO20C this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XCF04SVO20C price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XCF04SVO20C to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

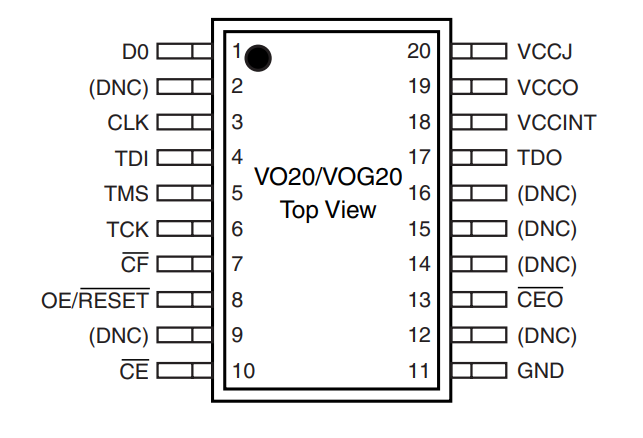

XCF04SVO20C Typical application Circuitry

XCF04SVO20C is Xilinx's Platform Flash in-system programmable configuration PROM (Programmable Read-Only Memory). The main use of this chip is to store configuration data for FPGA, ensuring that FPGA can be programmed upon powering up or when necessary.

Key Features of XCF04SVO20C:

- Storage Capacity: It provides a storage capacity of 4Mbit, capable of storing configurations for many FPGA devices.

- Serial Mode: It operates in serial mode, perfect for designs requiring simplified board-level wiring.

- In-System Programming (ISP) Capability: This means it can be reprogrammed in-system.

- Durability: It's designed for high rewrite tolerance, supporting up to 20,000 write cycles.

Common Applications of XCF04SVO20C:

1. FPGA Boot-up: Its primary function is to store configuration data for the FPGA, enabling it to start with the expected logical design.

2. Device Updates: In systems where FPGA logic might need frequent updates, having an ISP configuration memory is very valuable.

Example Circuit Connection: FPGA Boot-up:

1. Power Connection: First, connect the power pins. VCCO should be connected to the appropriate voltage, typically 3.3V, and GND to the system ground. Use bypass capacitors near these pins to maintain a stable power supply.

2. Serial Configuration: For XCF04SVO20C, connect the D0 (Serial Data Output) pin directly to the FPGA's DIN (Data Input) pin. This is how the configuration data is transferred.

3. Clock Source: Connect the CCLK pin of XCF04SVO20C to the configuration clock input of the FPGA. This clock synchronizes data transfer between the PROM and the FPGA.

4. Programming Control: The FPGA's PROGRAM pin should be connected to a reset button (or equivalent mechanism) to trigger reprogramming when necessary. Likewise, monitor the INIT pin on the FPGA to ensure proper initialization.

5. Status Indication: The DONE pin can optionally be connected to an LED (with the appropriate current-limiting resistor) to indicate a successful configuration.

6. ISP Connections: If you plan to take advantage of the in-system programming feature of XCF04SVO20C, ensure that the PROG and DONE pins of the chip are accessible for the programmer.

Design Considerations:

- Data Integrity: Ensure data paths remain short and are kept away from noisy parts of the circuit board to prevent corruption during configuration.

- Proper Decoupling: Like all storage devices, XCF04SVO20C requires proper decoupling, so ensure capacitors are placed appropriately.

- Programming Interface: If you're using ISP, ensure your board design provides an appropriate interface for programming tools or adapters.

- Memory Protection: If your application contains sensitive data, consider methods to protect the configuration data from unauthorized access or tampering.

In summary, XCF04SVO20C is a key component in systems utilizing FPGA, ensuring they run with the expected logic. Properly integrating and considering design elements will ensure seamless functionality and flexibility.
