What is the Additional Feature ?

Name: XC9536-7VQ44I
Brand: Xilinx Inc.
SKU: XC9536-7VQ44I
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Xilinx Inc. XC9536-7VQ44I

Part No.:: XC9536-7VQ44I

Manufacturer:: Xilinx Inc.

Package:: 44-TQFP

Datasheet:: XC9536-7VQ44I.pdf

Description:: IC CPLD 36MC 7.5NS 44VQFP

In Stock:: 2370

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC9536-7VQ44I Specifications

Package/Case:
44-TQFP
Packaging:
Tray
Series:
XC9500
ProductStatus:
Obsolete
ProgrammableType:
In System Programmable (min 10K program/erase cycles)
DelayTimetpd(1)Max:
7.5 ns
VoltageSupply-Internal:
4.5V ~ 5.5V
NumberofLogicElements/Blocks:
2
NumberofMacrocells:
36
NumberofGates:
800
NumberofI/O:
34
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

XC9536-7VQ44I this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC9536-7VQ44I price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC9536-7VQ44I to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XC9536-7VQ44I information

Views：

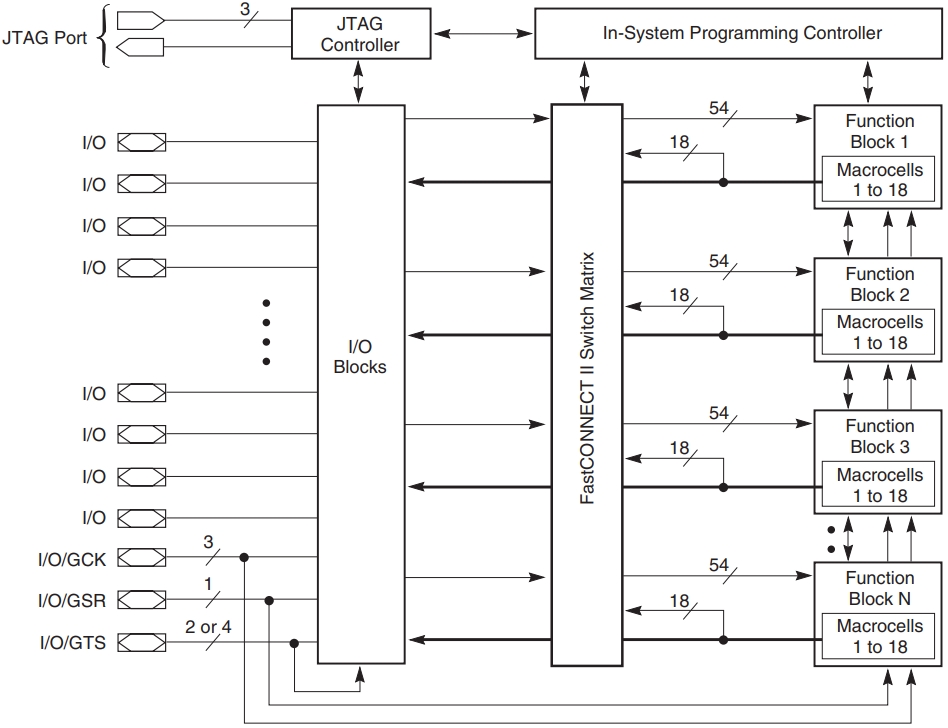

XC9536-7VQ44I Typical application Circuitry

XC9536-7VQ44I

The XC9536-7VQ44I is a member of the XC9500XL series of CPLDs (Complex Programmable Logic Devices) designed by Xilinx. This particular model is well-suited for implementing compact, high-performance logic circuits in industrial applications due to its high integration, robust thermal performance, and low-power consumption. It features a moderate amount of logic cells and I/O options, making it an ideal choice for smaller-scale, yet critical, control applications.

1. Power source Connection: For correct operation, the XC9536-7VQ44I requires a steady power source. It requires connection to a VCC pin for the core voltage (typically Pin 32) and multiple VCCIO pins (such as Pin 1 and Pin 22) for the different I/O banks. All VCC and VCCIO pins should be connected to the same voltage level as specified by Xilinx. Ground connections are also crucial and should be made to multiple GND pins (e.g., Pins 9, 18, 27, and 36) to minimize electrical noise and ensure stable operation.

2. I/O Configuration: Each I/O pin on the XC9536-7VQ44I can be programmed for different functionalities using Xilinx's software tools like ISE or Vivado. This gives designers of control circuits and digital interfaces a great deal of flexibility. Proper configuration of these I/O pins is essential for matching the electrical characteristics and logic levels required by connected peripherals.

3. Clock Configuration: The XC9536-7VQ44I requires a clock input for driving its internal logic circuits. This can be linked to Pin 44 or any other designated clock pin. A stable and clean clock signal is crucial for the reliable operation of the CPLD, as it dictates the timing of all synchronous operations within the device.

4. Programming and Configuration: The JTAG interface is used to program the XC9536-7VQ44I. Connections should include TDI (Test Data In, Pin 41), TDO (Test Data Out, Pin 42), TCK (Test Clock, Pin 40), and TMS (Test Mode Select, Pin 43). This interface facilitates not only the initial programming but also any necessary updates or debugging activities during development and deployment.

5. Reset Setup: The XC9536-7VQ44I includes a global set/reset feature, often connected to a dedicated GSR (Global Set/Reset) pin (e.g., Pin 8). This allows all internal logic to be reset to a default state simultaneously, which is particularly useful for recovering from error states or initializing the system at power-up.

By adhering to these critical connection guidelines, developers can ensure that the XC9536-7VQ44I is properly integrated into their digital systems, achieving optimal functionality and reliability. This CPLD's capabilities make it especially suitable for applications requiring robust, compact programmable logic solutions in industrial environments.

XC9536-7VQ44I FAQ

1. How to order XC9536-7VQ44I on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that XC9536-7VQ44I is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the XC9536-7VQ44I. All suppliers must pass our qualification reviews before they can publish their products including XC9536-7VQ44I on icwhale.com; we pay more attention to the channels and quality of XC9536-7VQ44I products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the XC9536-7VQ44I price and inventory displayed accurate?

The price and inventory of XC9536-7VQ44I fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of XC9536-7VQ44I?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the XC9536-7VQ44I we delivered, we will accept the replacement or return of the XC9536-7VQ44I only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of XC9536-7VQ44I.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
