Xilinx Inc. XC2C64A-7VQG44I

Part No.:: XC2C64A-7VQG44I

Manufacturer:: Xilinx Inc.

Package:: 44-TQFP

Datasheet:: XC2C64A-7VQG44I.pdf

Description:: IC CPLD 64MC 6.7NS 44VQFP

In Stock:: 3785

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC2C64A-7VQG44I this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC2C64A-7VQG44I price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC2C64A-7VQG44I to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

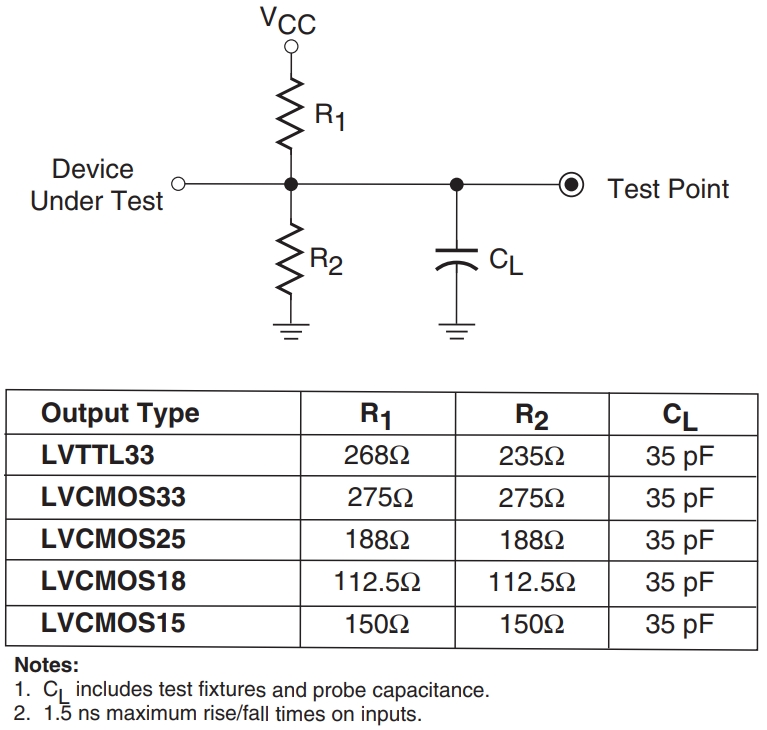

XC2C64A-7VQG44I Typical application Circuitry

XC2C64A-7VQG44I

The XC2C64A-7VQG44I is part of the CoolRunner-II CPLD family from Xilinx, characterized by its 64 macrocells and designed for low-power and high-performance applications. This specific part number denotes a variant in a 44-pin VQG package with a speed grade of -7. Here's an outline of the key aspects to consider when integrating the XC2C64A-7VQG44I into a circuit:

1. Power Supply Requirements: This device requires a stable voltage supply connected to its VCC pins, along with connections to ground through its GND pins. To ensure the device operates reliably, it's important to provide clean and stable power, typically achieved by placing decoupling capacitors near the power pins to filter out noise.

2. I/O Configuration: The XC2C64A-7VQG44I offers multiple I/O pins that must be configured in accordance with the intended logic levels and functionality. The device supports a range of I/O standards to facilitate interfacing with different types of logic families and devices. You need to set up the I/O pin characteristics correctly in the design to match the external circuitry.

3. JTAG Interface for Programming and Debugging: The XC2C64A-7VQG44I CPLD is programmable via a JTAG interface, requiring connections to the Test Data In (TDI), Test Data Out (TDO), Test Clock (TCK), and Test Mode Select (TMS) pins. This interface is crucial for loading the configuration into the CPLD and can also facilitate debugging and testing.

4. External Clock Input: For applications that involve sequential logic or require precise timing, an external clock source should be connected to the designated clock input pins of the CPLD. This ensures that the internal logic operates synchronously and reliably.

5. Device Reset: Implementing a reset mechanism is essential for initializing the CPLD to a known state at power-up or under specific conditions. This can be achieved through a dedicated reset pin or configurable logic within the device that responds to an external signal.

6. Thermal Considerations: While CoolRunner-II devices are known for their low power consumption, proper thermal management is still important, especially in dense or high-speed designs. Ensuring adequate airflow and using thermal relief measures can help maintain operational stability.

7. PCB Design Practices: Good PCB design practices are crucial, particularly for high-speed or dense logic applications. This includes careful routing of traces to minimize crosstalk and signal reflections, as well as maintaining a solid ground plane for noise suppression and signal integrity.

Incorporating these considerations will help you effectively integrate the XC2C64A-7VQG44I into your system, leveraging its capabilities for energy-efficient and high-performance digital logic designs.

XC2C64A-7VQG44I information

XC2C64A-7VQG44I Specifications

Package/Case:
44-TQFP
Packaging:
Tray
Series:
CoolRunner II
ProductStatus:
Active
ProgrammableType:
In System Programmable
DelayTimetpd(1)Max:
6.7 ns
VoltageSupply-Internal:
1.7V ~ 1.9V
NumberofLogicElements/Blocks:
4
NumberofMacrocells:
64
NumberofGates:
1500
NumberofI/O:
33
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount
