Xilinx Inc. XC95288XL-7TQG144I

Part No.:: XC95288XL-7TQG144I

Manufacturer:: Xilinx Inc.

Package:: 144-LQFP

Datasheet:: XC95288XL-7TQG144I.pdf

Description:: IC CPLD 288MC 7.5NS 144TQFP

In Stock:: 2580

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC95288XL-7TQG144I Specifications

Package/Case:
144-LQFP
Packaging:
Tray
Series:
XC9500XL
ProductStatus:
Active
ProgrammableType:
In System Programmable (min 10K program/erase cycles)
DelayTimetpd(1)Max:
7.5 ns
VoltageSupply-Internal:
3V ~ 3.6V
NumberofLogicElements/Blocks:
16
NumberofMacrocells:
288
NumberofGates:
6400
NumberofI/O:
117
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

XC95288XL-7TQG144I this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC95288XL-7TQG144I price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC95288XL-7TQG144I to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XC95288XL-7TQG144I information

Views：

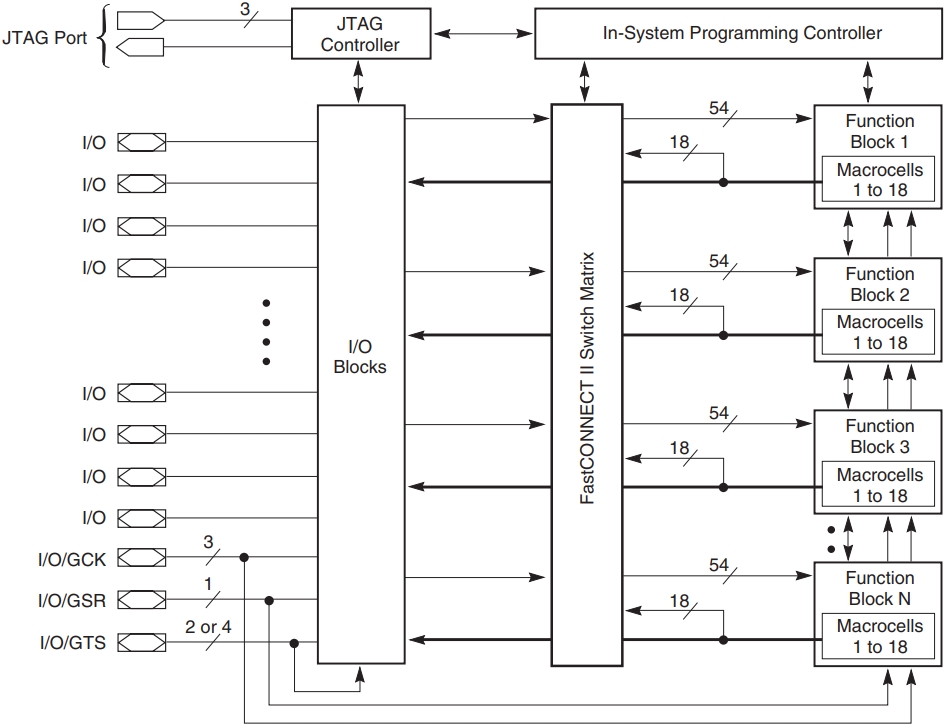

XC95288XL-7TQG144I Typical application Circuitry

XC95288XL-7TQG144I

The XC95288XL-7TQG144I is part of the XC9500XL series, a range of high-performance Complex Programmable Logic Devices (CPLDs) developed by Xilinx. This series is designed using a low-power 3.3V CMOS process, which allows for a reduction in power consumption while maintaining high-speed operation. The XC95288XL-7TQG144I is suitable for use in a variety of applications, including automotive, telecommunications, data communications, and industrial controls. Here are some key points detailing the circuit connection methods for the XC95288XL-7TQG144I:

1. Power Supply Connections: This device operates with a 3.3V power supply. To guarantee dependable performance, the VCC pins must be connected correctly. The VCC pins, including pins 1 and 144, must be connected to a stable 3.3V source. To reduce power supply noise, sufficient decoupling capacitors must to be positioned in close proximity to these pins.

2. Ground Connections: Proper grounding is critical for the operation of digital circuits, particularly CPLDs. For the XC95288XL-7TQG144I, all ground (GND) pins, such as pins 72 and 73, should be connected to the system ground. This helps in reducing noise and ensuring stable operation of the device.

3. I/O Configuration: The device features a versatile array of I/O pins that can be configured according to specific application needs. Pins 2 to 70 and 74 to 143 serve as I/O pins, which can be set as input, output, or bidirectional. It's important to configure these pins correctly in the design software to match the intended circuit functionality.

4. Clock Inputs: Clock input is crucial for timing and controlling the internal logic of the CPLD. The XC95288XL-7TQG144I has dedicated clock pins, such as pin 71 (CLK0), which should be connected to a reliable and stable clock source. This connection is essential for the synchronous operations across the device.

5. JTAG Interface for Programming and Debugging: For in-system programming and debugging, the JTAG interface is essential. For the XC95288XL-7TQG144I, the JTAG pins include TDI (Test Data In) on pin 5, TDO (Test Data Out) on pin 6, TMS (Test Mode Select) on pin 7, and TCK (Test Clock) on pin 8. Ensuring these pins are correctly connected facilitates the loading of configurations and performing diagnostic tests.

Implementing these connection strategies will enable the effective integration of the XC95288XL-7TQG144I into various digital solutions, leveraging its capabilities for high-speed, low-power applications.
