Name: XC95144XL-10TQ100C
Brand: Xilinx Inc.
SKU: XC95144XL-10TQ100C
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Xilinx Inc. XC95144XL-10TQ100C

Part No.:: XC95144XL-10TQ100C

Manufacturer:: Xilinx Inc.

Package:: 100-LQFP

Datasheet:: XC95144XL-10TQ100C.pdf

Description:: IC CPLD 144MC 10NS 100TQFP

In Stock:: 3964

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC95144XL-10TQ100C Specifications

Package/Case:
100-LQFP
Packaging:
Bulk
Series:
XC9500XL
ProductStatus:
Active
ProgrammableType:
In System Programmable (min 10K program/erase cycles)
DelayTimetpd(1)Max:
10 ns
VoltageSupply-Internal:
3V ~ 3.6V
NumberofLogicElements/Blocks:
8
NumberofMacrocells:
144
NumberofGates:
3200
NumberofI/O:
81
OperatingTemperature:
0°C ~ 70°C (TA)
MountingType:
Surface Mount

XC95144XL-10TQ100C this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC95144XL-10TQ100C price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC95144XL-10TQ100C to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XC95144XL-10TQ100C information

Views：

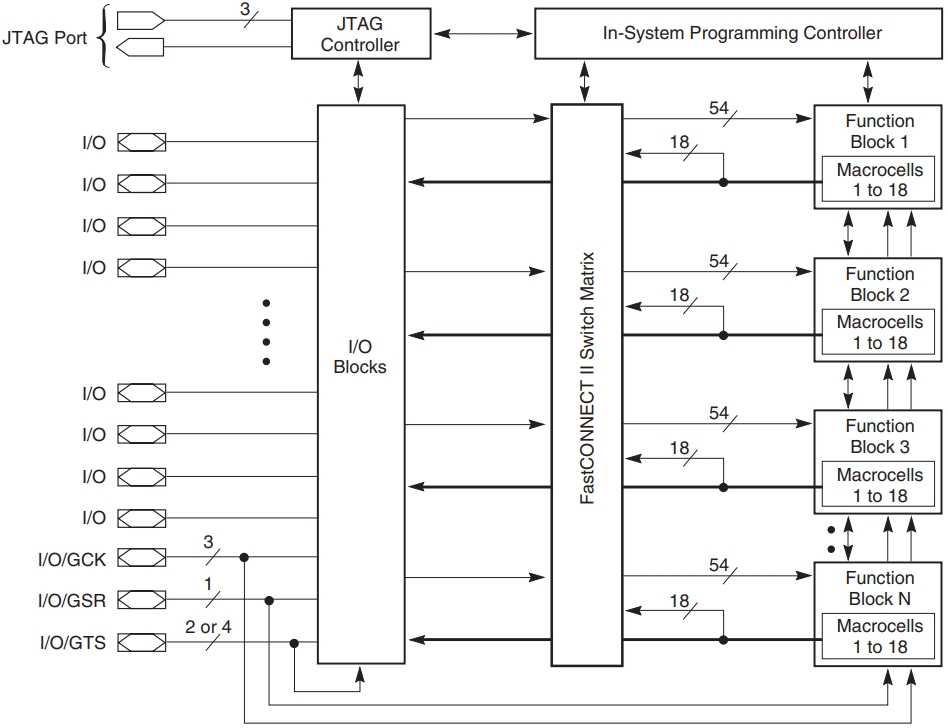

XC95144XL-10TQ100C Typical application Circuitry

XC95144XL-10TQ100C

The XC95144XL-10TQ100C is a versatile and robust component from the XC9500XL family of CPLDs (Complex Programmable Logic Devices) designed by Xilinx. Known for its high performance and low power consumption, the XC95144XL-10TQ100C is ideal for implementing logic control circuits and complex digital systems. It offers a flexible architecture and a high number of user-defined input/output pins, making it suitable for a wide range of applications.

1. Power Supply Connection: The XC95144XL-10TQ100C requires a stable power supply connection. Power is supplied to the VCC pins, specifically Pin 84 for the core, and all VCCIO pins (Pins 1, 14, 27, 40, 53, 66, 79, and 92) for the I/O banks. Ground connections should be made to all VGNDC and VGNDS pins (Pins 12, 25, 38, 51, 64, 77, 90, and 103).

2. I/O Configuration: I/O pins on the XC95144XL-10TQ100C allow for flexible configuration depending on the application's requirements. Each pin can be programmed individually through the Xilinx ISE design software, where the user can assign each pin as input, output, or bidirectional. It's essential to map these correctly to ensure proper functionality.

3. Clock Configuration: For effective operation, a clock signal must be provided to the XC95144XL-10TQ100C. The clock pins are Pin 100 (CLK1) and Pin 1 (CLK2). These pins should be connected to a stable and accurate clock source, as the entire logic of the CPLD relies on these timing signals for synchronous operations.

4. Programming and Configuration: The XC95144XL-10TQ100C is programmed using a JTAG interface, connected through TDI (Test Data In, Pin 6), TDO (Test Data Out, Pin 5), TCK (Test Clock, Pin 3), and TMS (Test Mode Select, Pin 4). This setup is crucial for loading the configuration data into the CPLD.

5. Reset Setup: The XC95144XL-10TQ100C includes a global set/reset pin, GSR (Pin 8). This pin can be used to initialize all internal registers to a known state upon startup or during operation, which is vital for the predictable behavior of programmed logic functions.

By carefully following these guidelines, the XC95144XL-10TQ100C can be integrated effectively into digital systems, offering robust and flexible performance. The specific pin connections are essential for harnessing the full capabilities of this CPLD in various technological applications.
