Xilinx Inc. XC7VX690T-2FFG1158I

Part No.:: XC7VX690T-2FFG1158I

Manufacturer:: Xilinx Inc.

Package:: 1156-BBGA, FCBGA

Datasheet:: XC7VX690T-2FFG1158I.pdf

Description:: IC FPGA 350 I/O 1158FCBGA

In Stock:: 3060

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC7VX690T-2FFG1158I Specifications

Package/Case:
1156-BBGA, FCBGA
Packaging:
Tray
Series:
Virtex®-7 XT
ProductStatus:
Active
NumberofLABs/CLBs:
54150
NumberofLogicElements/Cells:
693120
TotalRAMBits:
54190080
NumberofI/O:
350
NumberofGates:
-
Voltage-Supply:
0.97V ~ 1.03V
MountingType:
Surface Mount
OperatingTemperature:
-40°C ~ 100°C (TJ)

XC7VX690T-2FFG1158I this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC7VX690T-2FFG1158I price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC7VX690T-2FFG1158I to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XC7VX690T-2FFG1158I information

Views：

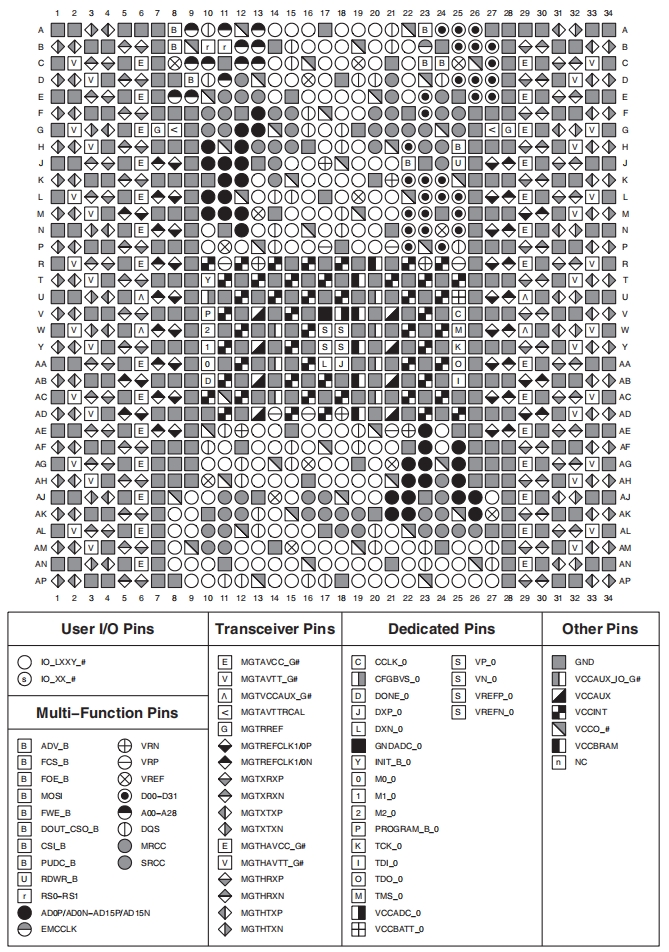

XC7VX690T-2FFG1158I Typical application Circuitry

XC7VX690T-2FFG1158I

The XC7VX690T-2FFG1158I is a high-capacity FPGA from the Xilinx Virtex-7 series, tailored for intensive processing tasks like high-speed networking, telecommunications, and advanced digital signal processing. This model stands out due to its extensive logic cell count, high-speed transceivers, and numerous I/O options, making it ideal for applications that demand robust performance and versatile connectivity.

1. Core Voltage Supply (VCCINT): Ensure the core voltage of 1.0V is supplied to critical pins like A11, A12, L34, and L35. It's crucial to maintain this voltage with high precision, utilizing low-ESR capacitors placed close to these pins to minimize any potential voltage fluctuations and maintain stability.

2. I/O Voltage Supply (VCCO): Different I/O banks of the XC7VX690T-2FFG1158I may require various voltage levels, typically ranging from 1.2V to 3.3V depending on the selected I/O standard. Assign appropriate voltage levels to pins such as A1, A2, K34, K35, and ensure each bank is independently configured to suit the interface requirements of the connected peripherals.

3. Configuration Interface: The XC7VX690T-2FFG1158I configuration of this FPGA is critical for its operation. Pins involved include PROGRAM_B (pin F4), which must be held low to initiate the configuration process, and CCLK (pin D3), the configuration clock input. Setting the M0, M1, M2 pins (e.g., pins E4, E3, F3) to the correct configuration mode is essential. The DONE pin (pin C3) signals successful configuration by going high.

4. Transceiver and Clock Management: The XC7VX690T-2FFG1158I features advanced transceivers requiring dedicated setup. Manage the transceiver power supplies (VCCINT, VCCBRAM) diligently and handle differential clock inputs (e.g., GTREFCLK0 pins) carefully to ensure efficient and error-free high-speed data communication. Clock sources should be stable and clean to minimize jitter and maximize performance.

5. Grounding and Decoupling: Effective grounding and rigorous decoupling practices are crucial. Connect all ground pins securely to a robust ground plane. Strategically place decoupling capacitors near the power pins to mitigate noise and stabilize the power distribution across the FPGA.

By adhering to these connection guidelines, the XC7VX690T-2FFG1158I can be successfully implemented into high-performance systems, fully exploiting its capabilities for complex and demanding computational tasks. This FPGA's integration, when done correctly, ensures optimal functionality and reliability in sophisticated electronic environments.
