Xilinx Inc. XC7A15T-1CSG324I

Part No.:: XC7A15T-1CSG324I

Manufacturer:: Xilinx Inc.

Package:: 324-LFBGA, CSPBGA

Datasheet:: XC7A15T-1CSG324I.pdf

Description:: IC FPGA 210 I/O 324CSBGA

In Stock:: 2184

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC7A15T-1CSG324I Specifications

Package/Case:
324-LFBGA, CSPBGA
Packaging:
Tray
Series:
Artix-7
ProductStatus:
Active
NumberofLABs/CLBs:
1300
NumberofLogicElements/Cells:
16640
TotalRAMBits:
921600
NumberofI/O:
210
NumberofGates:
-
Voltage-Supply:
0.95V ~ 1.05V
MountingType:
Surface Mount
OperatingTemperature:
-40°C ~ 100°C (TJ)

XC7A15T-1CSG324I this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC7A15T-1CSG324I price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC7A15T-1CSG324I to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XC7A15T-1CSG324I information

Views：

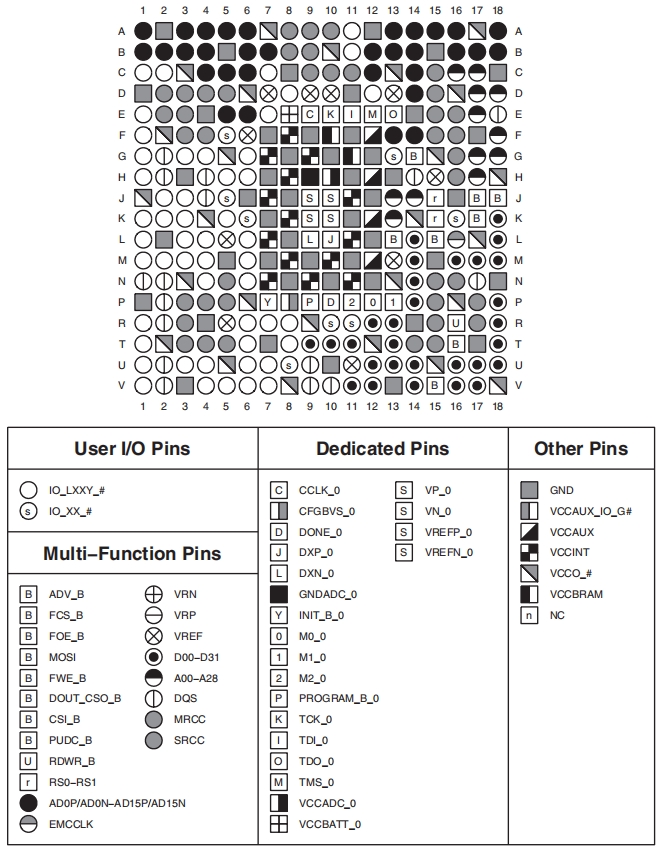

XC7A15T-1CSG324I Typical application Circuitry

XC7A15T-1CSG324I

The XC7A15T-1CSG324I belongs to the Xilinx Artix-7 family of Field Programmable Gate Arrays (FPGAs), which is celebrated for its flexibility, power efficiency, and high performance. The XC7A15T-1CSG324I model is particularly well-suited for applications demanding high-speed digital processing, such as telecommunications and video processing. This FPGA provides a mix of logic, memory, and DSP capabilities, enabling versatile and complex digital systems.

1. Power Supply Connection: For the XC7A15T-1CSG324I, power must be supplied to multiple pins for proper operation. The core voltage (VCCINT) should be connected to pins V12, V13, and V14 on the CS324 package. It's vital to ensure that the power supply is stable and clean to maintain the FPGA's functionality.

2. Configuration Pins Setup: The XC7A15T-1CSG324I utilizes several pins for configuration, including the PROGRAM_B pin (pin C9), which must be held high to operate and low to initiate reconfiguration. The configuration clock (CCLK) on pin A8 needs to be connected to an external clock source to drive the configuration process.

3. I/O Pin Configuration: The I/O pins of the XC7A15T-1CSG324I, such as pins from F1 to F12 and G1 to G12, need to be correctly configured based on the intended use. Each I/O pin can be assigned various roles through the FPGA's programmable logic, allowing for customized digital interfaces and signal processing.

4. Clock Input Connections: A stable clock source is essential for the XC7A15T-1CSG324I's operation, connected to the dedicated clock pins, e.g., Y1 and Y2. These pins are crucial for synchronizing the internal logic and enabling high-speed digital signal processing.

5. JTAG Interface: For programming and debugging, the XC7A15T-1CSG324I uses a JTAG interface, which involves connecting TDI (Test Data In) to pin C10, TDO (Test Data Out) to pin A10, TMS (Test Mode Select) to pin A9, and TCK (Test Clock) to pin B10. This interface allows for direct manipulation of the FPGA's logic for testing or configuration purposes.

By accurately connecting these specific pins and ensuring proper configuration of the XC7A15T-1CSG324I FPGA, developers can fully leverage its capabilities in high-performance digital applications. This detailed understanding and implementation of the XC7A15T-1CSG324I's pin connections are fundamental for optimizing the FPGA's function and reliability in any system architecture.
