Xilinx Inc. XC3S400-4FGG456C

Part No.:: XC3S400-4FGG456C

Manufacturer:: Xilinx Inc.

Package:: 456-BBGA

Datasheet:: XC3S400-4FGG456C.pdf

Description:: IC FPGA 264 I/O 456FBGA

In Stock:: 2770

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC3S400-4FGG456C Specifications

Package/Case:
456-BBGA
Packaging:
Tray
Series:
Spartan®-3
ProductStatus:
Active
NumberofLABs/CLBs:
896
NumberofLogicElements/Cells:
8064
TotalRAMBits:
294912
NumberofI/O:
264
NumberofGates:
400000
Voltage-Supply:
1.14V ~ 1.26V
MountingType:
Surface Mount
OperatingTemperature:
0°C ~ 85°C (TJ)

XC3S400-4FGG456C this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC3S400-4FGG456C price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC3S400-4FGG456C to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XC3S400-4FGG456C information

Views：

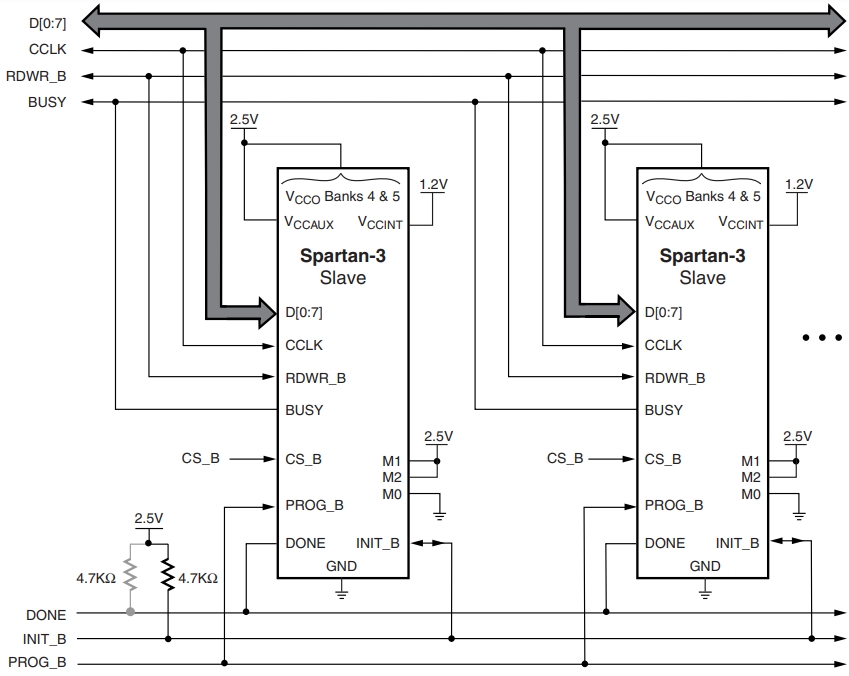

XC3S400-4FGG456C Typical application Circuitry

XC3S400-4FGG456C

The XC3S400-4FGG456C is a Spartan-3 FPGA from Xilinx, known for its high functionality and flexibility in system design. It offers robust capabilities for digital processing, making it suitable for a wide range of applications including communication, automotive, and industrial systems. The XC3S400-4FGG456C features a 400K logic cells and supports a variety of I/O standards.

1. Power Supply Connection: The XC3S400-4FGG456C requires multiple power connections. Connect the VCCINT (Internal Core Voltage) to pin A10, B10, P11, and R11 for internal logic and routing power. For I/O operation, connect VCCO (Output Driver Supply Voltage) to pins C1, C4, and L16. Ensure that each power pin is decoupled with a 0.1 µF capacitor close to the pin for stable operation.

2. Configuration Setup: To configure the XC3S400-4FGG456C, connect the PROGRAM_B pin (pin N4) to a pull-up resistor to VCCINT. This pin initializes the configuration process when pulled low. The configuration data can be fed through the CCLK pin (pin P4) while M0, M1, and M2 pins (pins P6, N6, and M6 respectively) set the configuration mode (e.g., JTAG or Master Serial).

3. Clock Input Connection: For the XC3S400-4FGG456C to operate, a clock source must be connected. Attach a stable clock signal to the GCLK pins (e.g., GCLK0 at pin L14). It is crucial to ensure that the clock signal is clean and stable for proper operation of the FPGA.

4. I/O Pin Configuration: This FPGA allows for versatile I/O configurations. Connect your input and output devices to the designated I/O pins, ensuring each pin is set to the correct voltage level supported by the VCCO connected to that bank. For example, connect a push button to pin D3 (Bank 2) and configure the I/O standard to LVTTL in the hardware description language used for FPGA programming.

5. Debug Interface Setup: For real-time debugging and testing, use the dedicated JTAG pins TDI (pin R5), TDO (pin T5), TMS (pin R6), and TCK (pin T6). This setup allows for interfacing with debugging tools to monitor the FPGA operation or modify configuration as necessary.

By precisely connecting these key points, the XC3S400-4FGG456C can be effectively integrated into a digital system, allowing for versatile and powerful computing capabilities.
