Xilinx Inc. XC3S400-4FG456C

Part No.:: XC3S400-4FG456C

Manufacturer:: Xilinx Inc.

Package:: 456-BBGA

Datasheet:: XC3S400-4FG456C.pdf

Description:: IC FPGA 264 I/O 456FBGA

In Stock:: 3696

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC3S400-4FG456C Specifications

Package/Case:
456-BBGA
Packaging:
Bulk
Series:
Spartan®-3
ProductStatus:
Active
NumberofLABs/CLBs:
896
NumberofLogicElements/Cells:
8064
TotalRAMBits:
294912
NumberofI/O:
264
NumberofGates:
400000
Voltage-Supply:
1.14V ~ 1.26V
MountingType:
Surface Mount
OperatingTemperature:
0°C ~ 85°C (TJ)

XC3S400-4FG456C this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC3S400-4FG456C price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC3S400-4FG456C to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XC3S400-4FG456C information

Views：

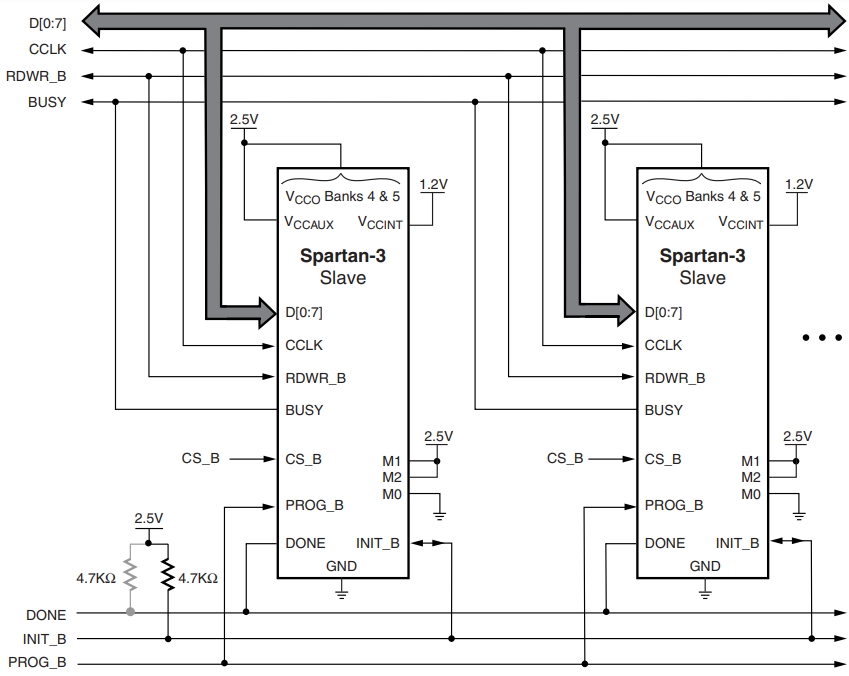

XC3S400-4FG456C Typical application Circuitry

XC3S400-4FG456C

The XC3S400-4FG456C is part of the Spartan-3 FPGA series designed by Xilinx, specifically crafted to provide a cost-effective, high-performance logic solution for various digital applications. This model is widely used due to its ample logic capacity and I/O options, which makes it suitable for a broad range of applications including automotive, consumer electronics, and data processing systems.

1. Power Connections: The XC3S400-4FG456C requires several power connections: core voltage (VCCINT) should be connected to pins such as V1 and V16, while the I/O voltage (VCCO) for different banks needs specific connections-for example, VCCO for bank 0 could be connected to pin A12. It is critical to connect these voltages accurately to ensure the FPGA functions correctly without any power issues.

2. Clock Inputs: A stable clock input is vital for the FPGA's operation. For the XC3S400-4FG456C, clock inputs can be connected to pins such as GCLK0 at pin L12. This clock source should be clean and stable to ensure reliable system performance.

3. Configuration Controls: Essential configuration pins include PROGRAM_B on pin T1, which must be low to begin configuration and held high during normal operation. Other critical configuration pins include DONE at pin R2, which indicates when the FPGA has successfully completed its configuration.

4. I/O Configuration: The XC3S400-4FG456C provides a wide range of I/O pins distributed across several banks. For example, bank 2 might include pins from J1 to J12. The I/O standard and function of these pins must be configured according to the requirements of your application, ensuring proper interfacing with other devices and peripherals.

5. JTAG Interface: For programming and debugging, the JTAG interface pins must be correctly connected. These include TDI (Test Data Input) at pin P4, TDO (Test Data Output) at pin P5, TMS (Test Mode Select) at pin P6, and TCK (Test Clock) at pin P7. Accurate connections in this interface are crucial for effective communication and troubleshooting during the development phase.

Ensuring precise implementation of these connections will maximize the performance of the XC3S400-4FG456C, allowing it to efficiently handle complex logic operations and data processing tasks in your specific applications.
