Name: XC3S250E-4VQ100I
Brand: Xilinx Inc.
SKU: XC3S250E-4VQ100I
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Xilinx Inc. XC3S250E-4VQ100I

Part No.:: XC3S250E-4VQ100I

Manufacturer:: Xilinx Inc.

Package:: 100-TQFP

Datasheet:: XC3S250E-4VQ100I.pdf

Description:: IC FPGA 66 I/O 100VQFP

In Stock:: 2287

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC3S250E-4VQ100I Specifications

Package/Case:
100-TQFP
Packaging:
Tray
Series:
Spartan®-3E
ProductStatus:
Active
NumberofLABs/CLBs:
612
NumberofLogicElements/Cells:
5508
TotalRAMBits:
221184
NumberofI/O:
66
NumberofGates:
250000
Voltage-Supply:
1.14V ~ 1.26V
MountingType:
Surface Mount
OperatingTemperature:
-40°C ~ 100°C (TJ)

XC3S250E-4VQ100I this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC3S250E-4VQ100I price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC3S250E-4VQ100I to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XC3S250E-4VQ100I information

Views：

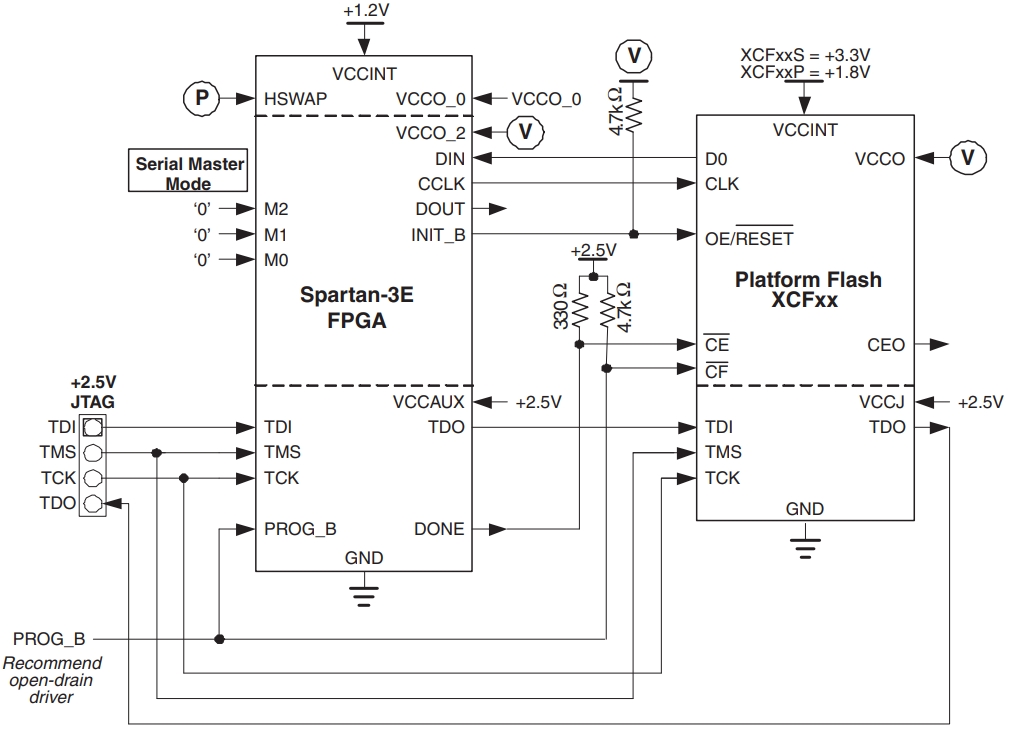

XC3S250E-4VQ100I Typical application Circuitry

XC3S250E-4VQ100I

The XC3S250E-4VQ100I is part of the Spartan-3E FPGA family developed by Xilinx, designed to offer a robust platform for digital processing with a focus on cost-effectiveness and low power consumption. Applications in consumer electronics, automobiles, telecommunications, and industrial control systems are perfect for this FPGA. It provides a flexible and powerful solution for implementing complex digital logic circuits in a compact form factor.

1. Power Supply Connections: The XC3S250E-4VQ100I requires various power connections for optimal operation. Connect the core voltage, VCCINT, to pins like 9 and 52, while the auxiliary supply, VCCAUX, should be connected to pin 33. Ensure stable power delivery by connecting ground (GND) through pins such as 1, 25, 49, and 73.

2. Configuration Pin Setup: Configuration of the XC3S250E-4VQ100I involves several crucial pins. The PROGRAM_B pin (pin 8) must be pulled low to initiate the configuration sequence. Data for configuration is provided via the CCLK pin (pin 85). Set the configuration scheme using the M0, M1, and M2 pins (pins 2, 3, and 4 respectively).

3. I/O Pin Configuration: This FPGA offers a broad range of configurable I/O pins, which can be used for various digital input or output purposes. For instance, pins 5 through 8, and 10 through 14, are configurable for different roles depending on the system's requirements. Each pin can handle multiple signaling standards to enhance interface compatibility.

4. Clock Input Configuration: A precise external clock source should be connected to pin 24, which serves as the primary clock input. This clock is critical for synchronizing the internal logic operations within the FPGA, ensuring consistent and reliable processing.

5. JTAG Interface for Debugging and Programming: A JTAG interface is built into the XC3S250E-4VQ100I and is necessary for both FPGA programming and debugging. The TDI (pin 6), TDO (pin 5), TMS (pin 7), and TCK (pin 4) pins form this interface, providing a pathway for data transfer and control during programming.

6. Special Function Pins: Additional noteworthy pins include the DONE pin (pin 84), which indicates when the FPGA has successfully completed its configuration, and the INIT_B pin (pin 99), which is used to monitor the status of the configuration memory during initialization.

By carefully planning and executing the connection and configuration of the XC3S250E-4VQ100I, developers can effectively utilize its capabilities to create sophisticated and efficient digital solutions tailored to a wide range of applications. If these elements are properly taken care of, the FPGA will function as intended inside its appropriate environment.
