Xilinx Inc. XC3S250E-4TQ144I

Part No.:: XC3S250E-4TQ144I

Manufacturer:: Xilinx Inc.

Package:: 144-LQFP

Datasheet:: XC3S250E-4TQ144I.pdf

Description:: IC FPGA 108 I/O 144TQFP

In Stock:: 3132

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC3S250E-4TQ144I Specifications

Package/Case:
144-LQFP
Packaging:
Tray
Series:
Spartan®-3E
ProductStatus:
Active
NumberofLABs/CLBs:
612
NumberofLogicElements/Cells:
5508
TotalRAMBits:
221184
NumberofI/O:
108
NumberofGates:
250000
Voltage-Supply:
1.14V ~ 1.26V
MountingType:
Surface Mount
OperatingTemperature:
-40°C ~ 100°C (TJ)

XC3S250E-4TQ144I this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC3S250E-4TQ144I price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC3S250E-4TQ144I to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XC3S250E-4TQ144I information

Views：

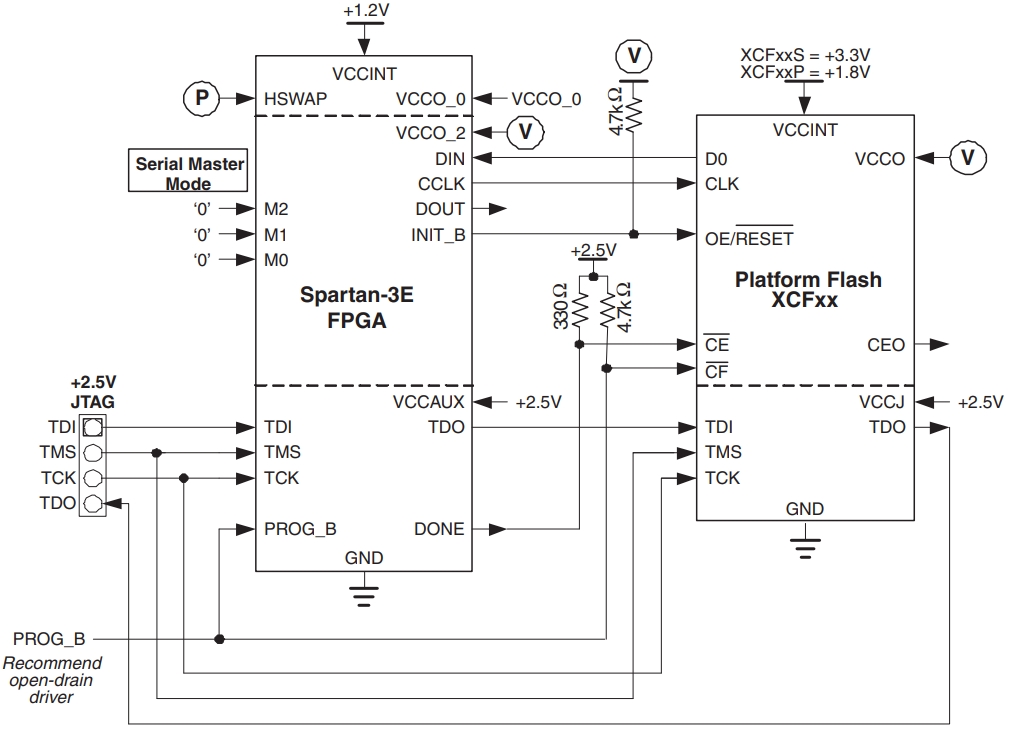

XC3S250E-4TQ144I Typical application Circuitry

XC3S250E-4TQ144I

The XC3S250E-4TQ144I is part of the Spartan-3E FPGA series by Xilinx, tailored for efficient implementation in systems requiring a balance of cost, performance, and low power consumption. This model, in particular, is well-suited for use in embedded systems, industrial control, and consumer electronics applications, offering significant programmability and functionality within a compact package.

1. Power Supply Connections: The XC3S250E-4TQ144I requires careful attention to power connections to ensure stability and performance. VCCINT (the internal core voltage) should be connected to pins like 42 and 87. The auxiliary voltage, VCCAUX, is connected to pin 50. It is crucial to also make connections to multiple GND (ground) pins, such as pins 41, 43, and 88, to ensure a low-noise environment for the FPGA.

2. Configuration Pin Setup: For the configuration of the XC3S250E-4TQ144I, several specific pins must be correctly utilized. The PROGRAM_B pin (pin 12) is used to reset the FPGA and start the configuration process. The configuration data can be input through the CCLK pin (pin 86). Configuration mode is selected with the M0, M1, and M2 pins (pins 4, 5, and 11, respectively).

3. I/O Pin Configuration: This FPGA offers a wide range of I/O options with pins that can be configured according to the needs of the application. Pins like 1 to 10 and 13 to 23, among others, can be utilized as digital input or output pins. These pins support various logic levels and standards, making them highly versatile.

4. Clock Input Configuration: To drive the system and synchronization processes within the FPGA, a stable clock input is essential. This is connected to pin 25, which serves as a dedicated clock input pin. A precise and stable clock source helps in maintaining the timing integrity of the operations performed by the FPGA.

5. JTAG Interface for Programming and Debugging: The JTAG interface of the XC3S250E-4TQ144I, which includes TDI (pin 3), TDO (pin 2), TMS (pin 6), and TCK (pin 7), is crucial for not only programming the FPGA but also for facilitating ongoing debugging and diagnostics.

6. Special Features and Additional Pins: Important additional features include pins such as the DONE pin (pin 85), which signals the end of the configuration process, and INIT_B (pin 13), which is monitored during startup to ensure the configuration memory loads correctly. These are essential for managing the state and readiness of the FPGA.

By adhering to these guidelines for connecting and configuring the XC3S250E-4TQ144I FPGA, developers can fully leverage the capabilities of this device to optimize the performance and reliability of their digital systems. Proper setup and management of these connections are key to unlocking the full potential of the FPGA in a variety of application environments.
