Xilinx Inc. XC3S250E-4CP132I

Part No.:: XC3S250E-4CP132I

Manufacturer:: Xilinx Inc.

Package:: 132-TFBGA, CSPBGA

Datasheet:: XC3S250E-4CP132I.pdf

Description:: IC FPGA 92 I/O 132CSBGA

In Stock:: 3992

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC3S250E-4CP132I Specifications

Package/Case:
132-TFBGA, CSPBGA
Packaging:
Bulk
Series:
Spartan®-3E
ProductStatus:
Active
NumberofLABs/CLBs:
612
NumberofLogicElements/Cells:
5508
TotalRAMBits:
221184
NumberofI/O:
92
NumberofGates:
250000
Voltage-Supply:
1.14V ~ 1.26V
MountingType:
Surface Mount
OperatingTemperature:
-40°C ~ 100°C (TJ)

XC3S250E-4CP132I this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC3S250E-4CP132I price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC3S250E-4CP132I to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XC3S250E-4CP132I information

Views：

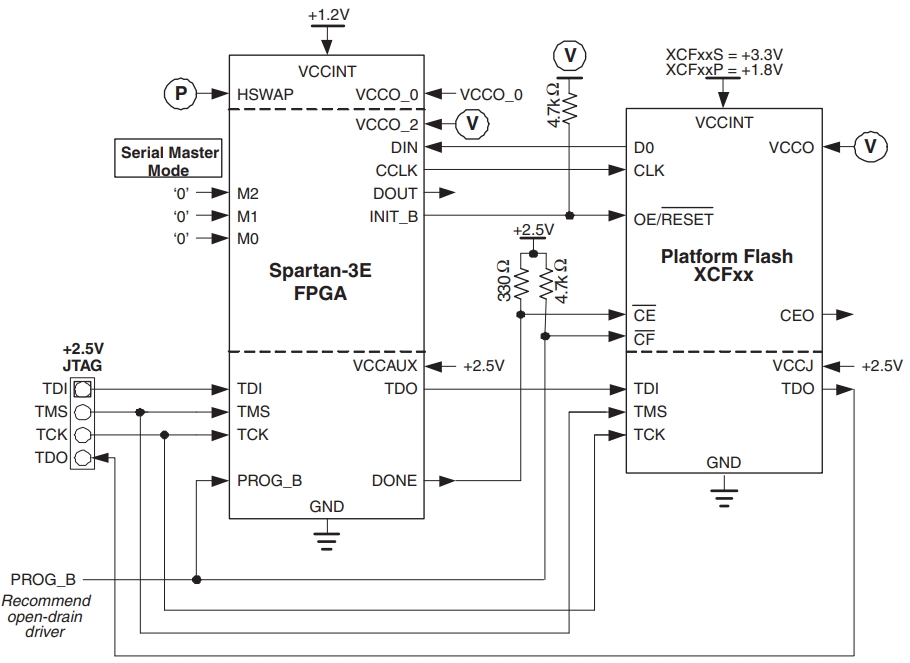

XC3S250E-4CP132I Typical application Circuitry

XC3S250E-4CP132I

The XC3S250E-4CP132I is part of the Spartan-3E FPGA family from Xilinx, which is engineered for cost-effective solutions in digital processing. This model offers a good balance of input/output capabilities, memory, and processing power, making it suitable for a range of applications including video processing, embedded systems, and wireless communications. The "4CP132I" in its name indicates that it has a commercial grade temperature range and a 132-pin chip-scale package.

1. Power Supply Setup: The XC3S250E-4CP132I requires a stable core voltage of 1.2V connected to the VCCINT pins, and an I/O voltage which can be either 3.3V, 2.5V, or 1.8V depending on the I/O standard, connected to the VCCO pins. These supplies should be clean and well-regulated to ensure the FPGA operates correctly without any power integrity issues.

2. JTAG Configuration Interface: For configuration purposes, the XC3S250E-4CP132I uses the standard JTAG interface pins which include TDI (Test Data In), TDO (Test Data Out), TMS (Test Mode Select), and TCK (Test Clock). These are critical for loading configuration data into the FPGA and should be easily accessible during both development and production phases.

3. I/O-Pin-Anordnung: Die XC3S250E-4CP132I verfügt über eine Reihe von GPIO-Pins (General Purpose Input Output)-Anschlüssen, die verschiedene logische Standards unterstützen. Each pin must be configured to match the voltage levels of the external devices they interface with to prevent damage and ensure data integrity.

4. Clock Input Connections: A reliable clock source should be connected to one of the GCLK (Global Clock) pins. This clock is vital for the timing of the entire FPGA system, influencing everything from data processing to interface timings.

5. Reset Mechanisms: The PROGRAM_B pin, which is used to reset the FPGA, should be connected to a low signal to initiate a configuration reset. This pin typically has an internal pull-up resistor but can be externally pulled high to ensure it remains in the intended state during normal operations.

6. Decoupling Capacitors: Es wird empfohlen, decoupling capacitors in unmittelbarer Nähe der Power-Supply-Pins des XC3S250E-4CP132I zu platzieren, um die Signalintegrität zu erhalten. These capacitors help filter out high-frequency switching noise generated by the FPGA and other components on the same power line.

By following these connection guidelines, the XC3S250E-4CP132I can be integrated effectively into various digital systems, maximizing its performance and reliability.
