Xilinx Inc. XC3S1600E-4FGG320I

Part No.:: XC3S1600E-4FGG320I

Manufacturer:: Xilinx Inc.

Package:: 320-BGA

Datasheet:: XC3S1600E-4FGG320I.pdf

Description:: IC FPGA 250 I/O 320FBGA

In Stock:: 3275

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC3S1600E-4FGG320I Specifications

Package/Case:
320-BGA
Packaging:
Tray
Series:
Spartan®-3E
ProductStatus:
Active
NumberofLABs/CLBs:
3688
NumberofLogicElements/Cells:
33192
TotalRAMBits:
663552
NumberofI/O:
250
NumberofGates:
1600000
Voltage-Supply:
1.14V ~ 1.26V
MountingType:
Surface Mount
OperatingTemperature:
-40°C ~ 100°C (TJ)

XC3S1600E-4FGG320I this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC3S1600E-4FGG320I price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC3S1600E-4FGG320I to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XC3S1600E-4FGG320I information

Views：

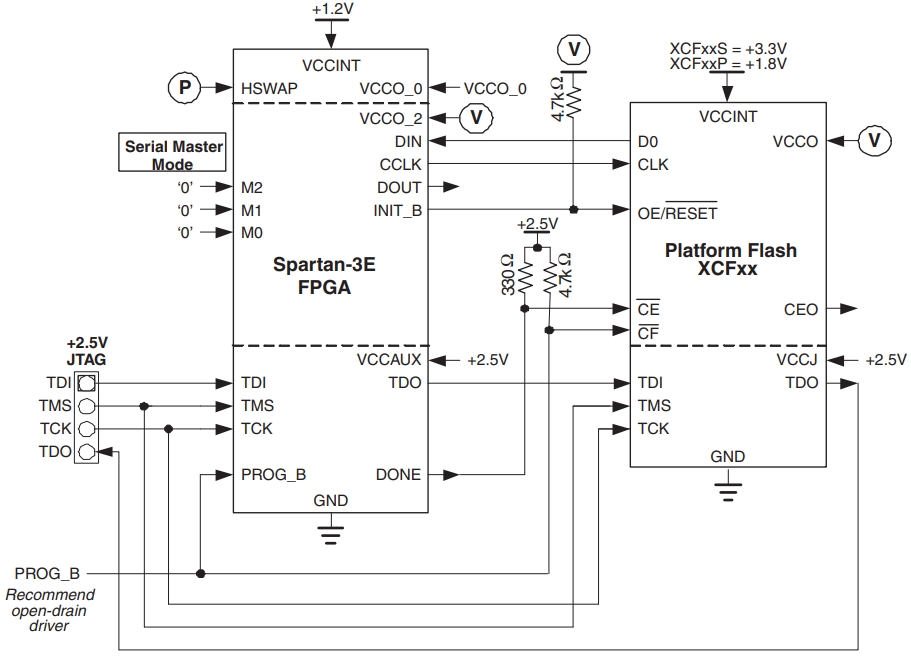

XC3S1600E-4FGG320I Typical application Circuitry

XC3S1600E-4FGG320I

The XC3S1600E-4FGG320I is part of the Spartan-3E series of Field Programmable Gate Arrays (FPGAs) from Xilinx. This particular model is designed for enhanced performance in embedded processing and digital signal processing applications, making it suitable for a wide range of uses including industrial, automotive, and consumer electronics. The FPGA is equipped with a high number of logic cells, digital signal processing slices, and ample I/O options, supporting complex and multifunctional system designs.

1. Power Supply Connections: The XC3S1600E-4FGG320I requires multiple power connections to ensure proper functionality. Connect the VCCINT (Pin 143) to a 1.2V power supply for the internal logic, and VCCAUX (Pin 132) should be connected to a 3.3V source, which powers auxiliary functions of the FPGA.

2. I/O Configuration: The XC3S1600E-4FGG320I provides a wide array of configurable I/O pins that can be utilized for various functions. For example, pins like I/O Pin 1 (Pin 1) and I/O Pin 2 (Pin 2) should be connected according to the signal requirements of your application, whether input or output.

3. Configuration and Programming: For configuring the XC3S1600E-4FGG320I, the PROGRAM_B pin (Pin 140) needs to be connected to initiate the configuration sequence. The configuration clock, CCLK (Pin 141), requires connection to an external clock source for the configuration data to be clocked into the FPGA.

4. Clock Inputs: Provide a stable clock source to the XC3S1600E-4FGG320I through the Global Clock (GCLK) pins such as GCLK0 (Pin 53). A precise oscillator should be connected here to ensure the FPGA operations are well-timed and synchronized.

5. Reset Integration: It's crucial to incorporate a reset mechanism by connecting the dedicated reset pin, RST (Pin 100), to your reset circuitry. This allows the FPGA to reset to a known state during power cycles or when recovering from an operational error.

6. JTAG Interface: The JTAG pins such as TMS (Pin 5), TDI (Pin 3), TDO (Pin 6), and TCK (Pin 4) must be connected for testing and programming the FPGA.This interface is crucial for in-system programming and real-time debugging.

Ensuring these connections are made correctly and according to the technical specifications of the XC3S1600E-4FGG320I, designers can effectively leverage the capabilities of this FPGA for their digital solutions. This setup will contribute to achieving high performance, reliability, and flexibility in various electronic applications.
