Xilinx Inc. XC3S1500-5FGG456C

Part No.:: XC3S1500-5FGG456C

Manufacturer:: Xilinx Inc.

Package:: 456-BBGA

Datasheet:: XC3S1500-5FGG456C.pdf

Description:: IC FPGA 333 I/O 456FBGA

In Stock:: 3802

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC3S1500-5FGG456C Specifications

Package/Case:
456-BBGA
Packaging:
Tray
Series:
Spartan®-3
ProductStatus:
Active
NumberofLABs/CLBs:
3328
NumberofLogicElements/Cells:
29952
TotalRAMBits:
589824
NumberofI/O:
333
NumberofGates:
1500000
Voltage-Supply:
1.14V ~ 1.26V
MountingType:
Surface Mount
OperatingTemperature:
0°C ~ 85°C (TJ)

XC3S1500-5FGG456C this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC3S1500-5FGG456C price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC3S1500-5FGG456C to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XC3S1500-5FGG456C information

Views：

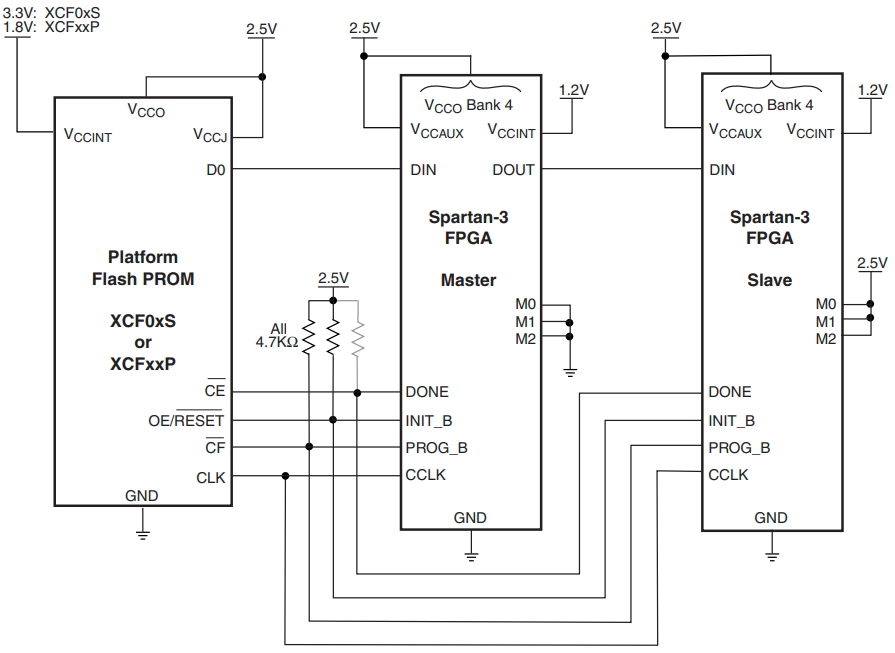

XC3S1500-5FGG456C Typical application Circuitry

XC3S1500-5FGG456C

The XC3S1500-5FGG456C is a model from the Spartan-3 FPGA series produced by Xilinx, designed to offer high-density logic integration for a variety of applications including signal processing, communications, and embedded control systems. This FPGA is particularly recognized for its balance of cost, performance, and power efficiency, making it a suitable choice for budget-sensitive yet demanding applications.

1. Power Supply Setup: The XC3S1500-5FGG456C requires several power connections to operate effectively. A core voltage of 1.2V must be supplied to the VCCINT pins, while the I/O pins require a voltage of 3.3V or 2.5V depending on the I/O standard used, supplied to the VCCO pins. The auxiliary supply voltage, which powers the configuration and JTAG circuitry, should be connected to the VCCAUX pins at 2.5V. Ensuring clean and stable power supplies is crucial for optimal FPGA performance.

2. I/O Configuration: With a large number of user I/O pins distributed over several banks, the XC3S1500-5FGG456C can interface with a wide array of peripherals. Each I/O bank can be individually configured to support different logic levels, allowing for versatile system design. It is important to match the VCCO voltage of each I/O bank with the logic levels of the connected devices to ensure signal integrity.

3. Configuration Options: This FPGA supports multiple configuration modes including JTAG, Master-Slave Serial, and Master-Slave Parallel. For most applications, JTAG configuration is commonly used due to its simplicity and reliability, utilizing the TDI, TDO, TMS, and TCK pins for data transfer and programming.

4. Clock Management: The XC3S1500-5FGG456C includes several dedicated clock management pins such as GCK (Global Clock) pins which should be connected to external clock sources. These clocks are vital for driving the internal logic with precise timing, especially in high-speed digital applications.

5. Thermal Considerations: Due to the dense integration and potential for high power dissipation, implementing effective thermal management is essential. Depending on the use case and operating environment, methods like heatsinks, thermal pads, and even active cooling systems might be necessary to maintain the XC3S1500-5FGG456C within safe operating temperatures.

By thoroughly understanding these critical aspects of the XC3S1500-5FGG456C's setup and operation, designers can effectively harness its capabilities for sophisticated digital designs, ensuring both reliability and high performance.
