Xilinx Inc. XC3S1200E-4FGG320C

Part No.:: XC3S1200E-4FGG320C

Manufacturer:: Xilinx Inc.

Package:: 320-BGA

Datasheet:: XC3S1200E-4FGG320C.pdf

Description:: IC FPGA 250 I/O 320FBGA

In Stock:: 3892

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC3S1200E-4FGG320C Specifications

Package/Case:
320-BGA
Packaging:
Tray
Series:
Spartan®-3E
ProductStatus:
Active
NumberofLABs/CLBs:
2168
NumberofLogicElements/Cells:
19512
TotalRAMBits:
516096
NumberofI/O:
250
NumberofGates:
1200000
Voltage-Supply:
1.14V ~ 1.26V
MountingType:
Surface Mount
OperatingTemperature:
0°C ~ 85°C (TJ)

XC3S1200E-4FGG320C this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC3S1200E-4FGG320C price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC3S1200E-4FGG320C to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XC3S1200E-4FGG320C information

Views：

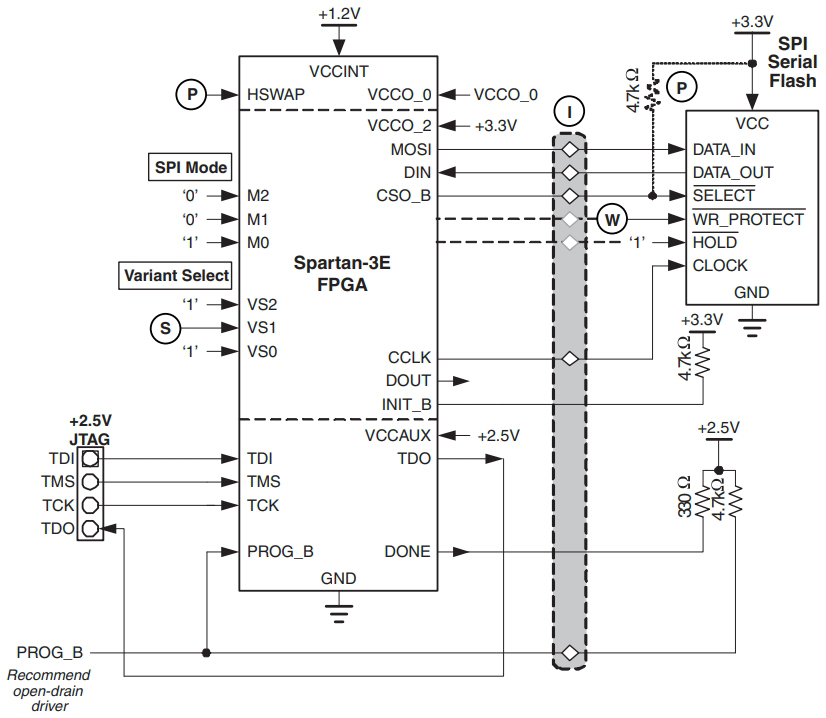

XC3S1200E-4FGG320C Typical application Circuitry

XC3S1200E-4FGG320C

The XC3S1200E-4FGG320C is a model from the Spartan-3E series of FPGAs (Field Programmable Gate Arrays), produced by Xilinx. This series is particularly noted for providing enhanced performance with lower power consumption and cost, making it suitable for a wide range of applications such as video processing, telecommunication, and automotive systems. The XC3S1200E-4FGG320C, with its substantial logic resources and connectivity options, is well-equipped to handle moderate to high complexity integration challenges.

1. Power Supply Connections: For operational stability, the XC3S1200E-4FGG320C requires a core supply voltage connected to the VCCINT pins, such as Pin 12 and Pin 309. It also needs a separate supply for I/O functionalities connected to the VCCO pins, which include Pin 1, Pin 160, and others distributed around the perimeter of the chip. Additionally, auxiliary functions are powered via the VCCAUX pins like Pin 119.

2. I/O Configuration: This FPGA features up to 226 user I/O pins that are configured across several I/O banks. Each bank can be set to different voltage standards to accommodate interfacing with other digital or analog modules. This flexibility allows for extensive customization in system design.

3. Clock Management: Clock inputs are crucial for managing the internal timing of FPGA operations. The XC3S1200E-4FGG320C utilizes multiple clock pins, including GCLK (Global Clock) pins located strategically around the chip, such as Pin 67 and Pin 224. These are used to drive the internal logic with stable clock signals essential for synchronous digital circuits.

4. Configuration and Programming Interface: Programming the XC3S1200E-4FGG320C is typically done through a JTAG interface, with necessary pins including TDI (Pin 5), TDO (Pin 3), TMS (Pin 6), and TCK (Pin 4). These connections are indispensable for loading and updating the FPGA's configuration data, facilitating the customization of its logic functions.

5. Reset and Initialization Controls: Effective control over FPGA operations is achieved using the PROGRAM_B pin (Pin 319), an active-low reset control, and the INIT_B pin (Pin 321), which indicates whether the device has been successfully programmed and is operational. Managing these pins correctly ensures that the FPGA starts and runs as intended.

By adhering to these specific connection and configuration protocols, the XC3S1200E-4FGG320C can be effectively integrated into a wide variety of digital solutions, ensuring optimal performance and adaptability across numerous technology-driven applications.
