Xilinx Inc. XC3S1000-4FG456I

Part No.:: XC3S1000-4FG456I

Manufacturer:: Xilinx Inc.

Package:: 456-BBGA

Datasheet:: XC3S1000-4FG456I.pdf

Description:: IC FPGA 333 I/O 456FBGA

In Stock:: 2608

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC3S1000-4FG456I Specifications

Package/Case:
456-BBGA
Packaging:
Tray
Series:
Spartan®-3
ProductStatus:
Active
NumberofLABs/CLBs:
1920
NumberofLogicElements/Cells:
17280
TotalRAMBits:
442368
NumberofI/O:
333
NumberofGates:
1000000
Voltage-Supply:
1.14V ~ 1.26V
MountingType:
Surface Mount
OperatingTemperature:
-40°C ~ 100°C (TJ)

XC3S1000-4FG456I this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC3S1000-4FG456I price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC3S1000-4FG456I to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XC3S1000-4FG456I information

Views：

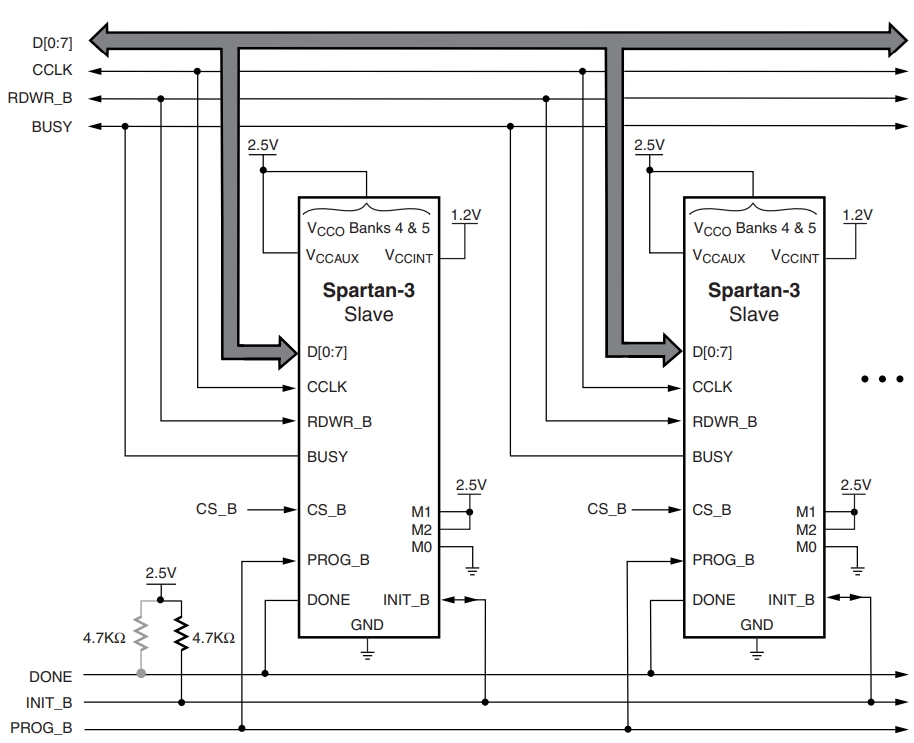

XC3S1000-4FG456I Typical application Circuitry

XC3S1000-4FG456I

The XC3S1000-4FG456I is a part of the Spartan-3 FPGA series from Xilinx, designed to provide high-performance digital processing capabilities at a lower cost. This FPGA model is particularly well-suited for volume logic applications where cost efficiency and flexibility in configuration are essential. Below, we will outline the precise circuit connection methods for integrating the XC3S1000-4FG456I into a digital system, highlighting specific pins and their functions.

1. Power Supply Connections: The XC3S1000-4FG456I requires different voltage supplies for its core and I/O operations. Connect the core voltage supply to the VCCINT pins (e.g., pins 5, 66, 126) and the I/O voltage supply to the VCCO pins corresponding to each I/O bank (e.g., pin 224 for Bank 2). It is critical to use appropriate decoupling capacitors near these pins to ensure stable voltage levels and minimize noise.

2. I/O Configuration: For the XC3S1000-4FG456I, each I/O bank should be configured according to the voltage requirements of the connected peripherals. For example, connect VCCO of Bank 0 (pin 1) to match the logic levels of interfacing circuits. The I/O pins (e.g., pins 2-33 for Bank 0) can be used for various digital interfaces, configured as input, output, or bi-directional modes.

3. Configuration and Programming: The XC3S1000-4FG456I FPGA is programmed via specific configuration pins. The PROGRAM_B pin (pin 42) must be held low to initiate configuration. The configuration clock is provided to the CCLK pin (pin 40), and the configuration data should be entered through the DIN pin (pin 38).

4. Clock Inputs: Accurate clocking is crucial for the operation of the XC3S1000-4FG456I. Connect the primary system clock to the GCK0 pin (pin 54) to drive the internal clock network. This ensures that all synchronous elements within the FPGA operate correctly.

5. JTAG Interface for Debugging and Programming: To facilitate programming and debugging, the XC3S1000-4FG456I supports a JTAG interface. Connect the TDI (Test Data In) to pin 4, TDO (Test Data Out) to pin 6, TMS (Test Mode Select) to pin 5, and TCK (Test Clock) to pin 3. This interface is essential for in-circuit configurations and real-time debugging.

By meticulously connecting these essential components and ensuring proper configuration, the XC3S1000-4FG456I can be effectively integrated into digital systems, optimizing its performance and leveraging its capabilities for a wide range of applications. This setup facilitates the successful deployment of the XC3S1000-4FG456I in projects demanding cost-effective and flexible digital processing solutions.
