Xilinx Inc. XC2S30-5VQ100I

Part No.:: XC2S30-5VQ100I

Manufacturer:: Xilinx Inc.

Package:: 100-TQFP

Datasheet:: XC2S30-5VQ100I.pdf

Description:: IC FPGA 60 I/O 100VQFP

In Stock:: 2980

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC2S30-5VQ100I Specifications

Package/Case:
100-TQFP
Packaging:
Tray
Series:
Spartan®-II
ProductStatus:
Active
NumberofLABs/CLBs:
216
NumberofLogicElements/Cells:
972
TotalRAMBits:
24576
NumberofI/O:
60
NumberofGates:
30000
Voltage-Supply:
2.375V ~ 2.625V
MountingType:
Surface Mount
OperatingTemperature:
-40°C ~ 100°C (TJ)

XC2S30-5VQ100I this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC2S30-5VQ100I price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC2S30-5VQ100I to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XC2S30-5VQ100I information

Views：

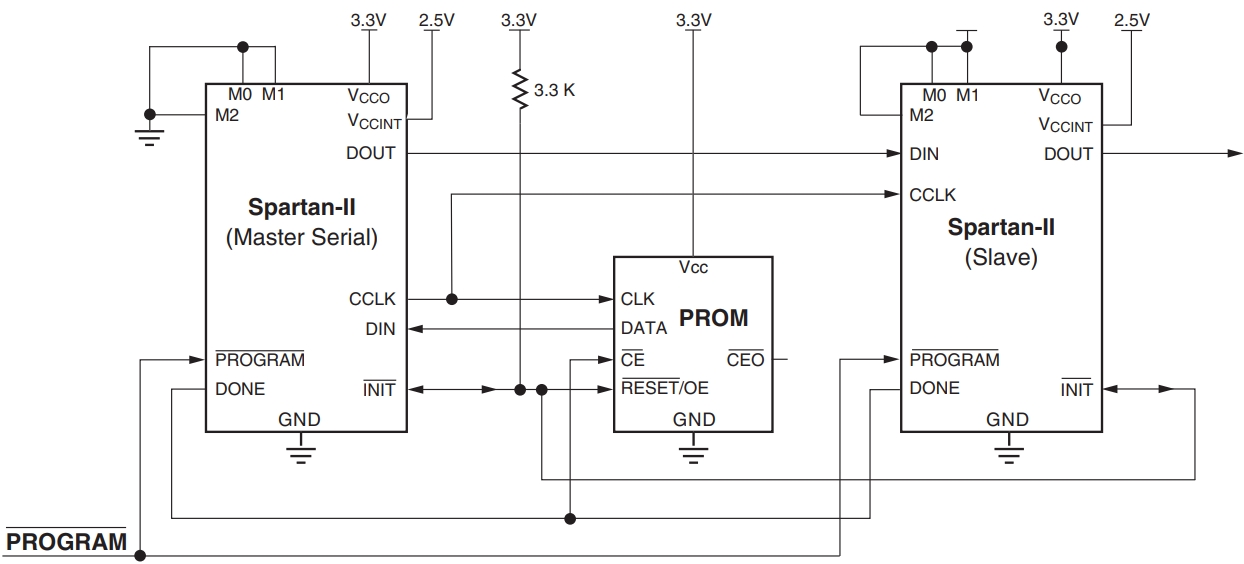

XC2S30-5VQ100I Typical application Circuitry

XC2S30-5VQ100I

The XC2S30-5VQ100I is part of the Spartan-II series from Xilinx, a family of FPGAs known for their cost-effectiveness and versatility in handling a wide range of digital logic and processing tasks. The XC2S30 in this identifier suggests that the FPGA has approximately 30,000 system gates, which provides a moderate level of complexity suitable for various medium-scale applications. The '5' in the model number denotes the speed grade, which is a standard performance level for this series. 'VQ100' indicates that the device is packaged in a 100-pin VQFP (Very Thin Quad Flat Pack), and the 'I' at the end signifies that it is an industrial-grade component, meaning it's designed to operate over an extended temperature range compared to commercial-grade parts.

1. Power Supply Connections: The XC2S30-5VQ100I requires a core supply voltage (VCCINT) typically at 2.5V and an I/O supply voltage (VCCO) that may vary depending on the I/O standards being used. Proper power supply decoupling and stable voltage levels are critical to maintain the FPGA's functionality and reliability.

2. I/O Pin Configuration: With 100 pins, this FPGA offers a range of I/O configurations to interface with various peripherals and systems. Ensuring that the I/O pins are configured correctly according to the voltage levels and standards of the external components they connect to is essential for proper operation.

3. Clock Inputs: The device needs a stable clock input for its internal operations. The design should ensure that a clean, stable clock source is connected to the dedicated clock pins, supporting the synchronization and timing of the internal logic circuits.

4. Configuration Mechanisms: The XC2S30-5VQ100I can be programmed using several methods, including JTAG and Master-Slave serial modes. The specific configuration pins and protocol should be understood and implemented correctly to load the FPGA with the desired logic design efficiently.

5. Thermal Management: Given the industrial-grade specification, the XC2S30-5VQ100I is built to operate in harsher temperature environments. However, proper thermal management should still be considered, especially if the device is to be used near the upper limits of its temperature range or in thermally challenging conditions.

6. Board Design and Signal Integrity: When designing a PCB for the XC2S30-5VQ100I, attention should be given to the layout to minimize noise and ensure signal integrity, especially for the clock and high-speed signals. Proper grounding, routing, and the use of decoupling capacitors close to the power pins are essential practices to avoid operational issues.

By carefully addressing these aspects, designers can effectively incorporate the XC2S30-5VQ100I into their digital systems, exploiting its robustness and flexibility for a wide range of industrial applications.
