Xilinx Inc. XC18V01SO20C

Part No.:: XC18V01SO20C

Manufacturer:: Xilinx Inc.

Package:: 20-SOIC (0.295, 7.50mm Width)

Datasheet:: XC18V01SO20C.pdf

Description:: IC PROM SERIAL CONFIG 1M 20-SOIC

In Stock:: 3643

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

XC18V01SO20C Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
ProgrammableType:
In System Programmable
MemorySize:
1Mb
Voltage-Supply:
3V ~ 3.6V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

XC18V01SO20C this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including XC18V01SO20C price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for XC18V01SO20C to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

XC18V01SO20C information

Views：

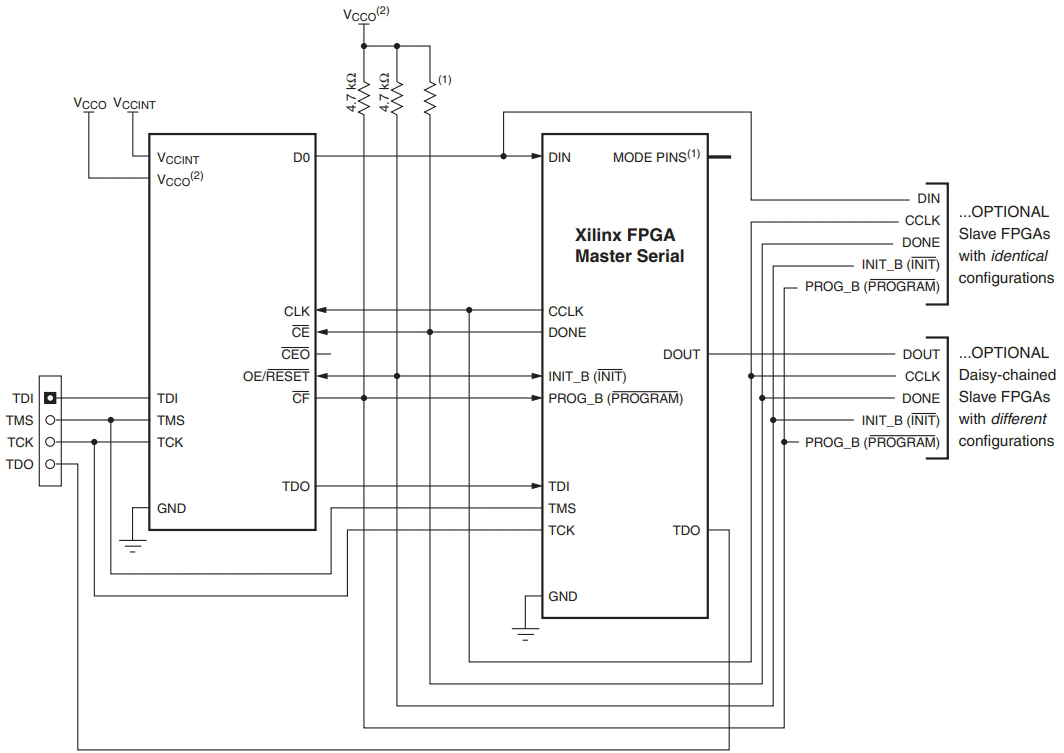

XC18V01SO20C Typical application Circuitry

XC18V01SO20C

The XC18V01SO20C is a PROM (Programmable Read-Only Memory) chip from Xilinx, specifically designed for configuration storage of FPGA devices. This series of PROM chips is used to store the configuration data for FPGAs, ensuring that the FPGA can be programmed to perform its designated functions upon power-up. The XC18V01SO20C, in particular, offers a non-volatile storage solution, which means it retains the stored data even when power is turned off. Here's a detailed look at how to connect and use the XC18V01SO20C with an FPGA:

1. Power Supply Connections: The XC18V01SO20C requires a stable power supply, typically 3.3V, connected to the VCC pin. The ground connection should be made to the GND pin. Ensuring that these power connections are stable and clean is crucial for the reliable operation of the PROM.

2. Data Communication Interface: The PROM communicates with the FPGA through a serial data interface. The DATA (D) pin on the XC18V01SO20C should be connected to the corresponding FPGA configuration pin. This connection enables the transfer of configuration data from the PROM to the FPGA during power-up sequences.

3. Clock Connection: The CLOCK (C) pin on the XC18V01SO20C needs to be connected to a clock source. This clock synchronizes the data transfer between the PROM and the FPGA. The clock source is typically provided by the FPGA during the configuration phase.

4. Chip Enable (CE): The Chip Enable pin must be connected and used properly to initiate the configuration process. When CE is low, the device is enabled, allowing data to be transferred from the PROM to the FPGA.

5. Write Protect (WP): The Write Protect pin is used to prevent accidental erasure or programming of the PROM. For normal operation, this pin can be connected to VCC to disable the write-protect feature, allowing the PROM to be programmed.

6. Status Output (READY/BUSY): This pin can be used to monitor the status of the PROM. When connected to an FPGA I/O pin, it can indicate whether the PROM is in the busy state or ready to be accessed, which is particularly useful during the programming or update phases.

By understanding these connection points and ensuring that they are implemented correctly, designers can effectively use the XC18V01SO20C PROM in their FPGA-based systems, providing reliable and efficient configuration storage.
