STMicroelectronics VNQ810PTR-E

Part No.:: VNQ810PTR-E

Manufacturer:: STMicroelectronics

Package:: 28-SO

Datasheet:: VNQ810PTR-E.pdf

Description:: IC PWR DRIVER N-CHANNEL 1:1 28SO

In Stock:: 3490

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

VNQ810PTR-E Specifications

Package/Case:
28-SO
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
VIPower™
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
4
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
5.5V ~ 36V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
3.5A
RdsOn(Typ):
160mOhm (Max)
InputType:
Non-Inverting
Features:
Auto Restart, Status Flag
FaultProtection:
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

VNQ810PTR-E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including VNQ810PTR-E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for VNQ810PTR-E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

VNQ810PTR-E information

Views：

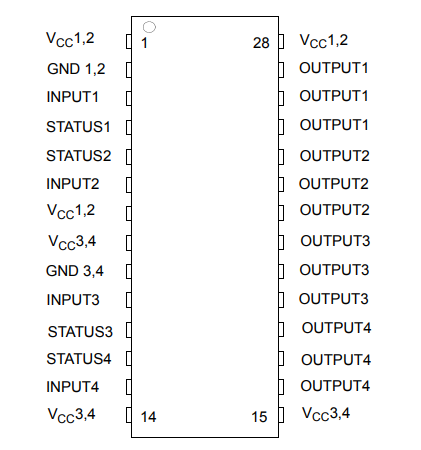

VNQ810PTR-E Typical application Circuitry

The VNQ810PTR-E is an advanced member of the STMicroelectronics high-side driver family, formulated to efficiently drive a variety of loads, especially in automotive environments.

Features of the VNQ810PTR-E:

- Built-in Protection: The VNQ810PTR-E is endowed with intrinsic protection against short-circuits and over-temperature, ensuring device longevity and safe operations.

- Diagnostic Functions: With its inherent diagnostic mechanisms, it can be used in systems that require constant health checks and fault detection.

- Multi-Channel Design: The chip possesses the capability to manage multiple channels, making it suitable for diverse tasks simultaneously.

- Low On-Resistance: This feature helps reduce power dissipation, thereby aiding in energy-efficient operations.

Application Areas of the VNQ810PTR-E:

- Automotive: From activating headlights, indicators, to small motors, its capabilities are manifold.
- Industrial Applications: Driving resistive and inductive loads in industrial environments.

Application Scenario - Driving Automotive Headlights:

To elucidate, let's consider utilizing the VNQ810PTR-E for controlling an automotive headlight system:

1. OUTx Pins (e.g., OUT1, OUT2): Direct the output from these pins to the associated terminal of the headlights. Remember, the other terminal of the headlights usually attaches to the ground.

2. INx Pins (e.g., IN1, IN2): Control signals are fed here. A high logic level ignites the corresponding headlight. Typically, a microcontroller or an automotive switch panel can furnish this signal.

3. VS Pin: Securely associate this pin with the positive terminal of the car battery or your chosen power source.

4. Grounding: Ensure the VNQ810PTR-E ground pin has a firm and stable connection to the vehicle's ground system.

5. Diagnostic Pins: These are your eyes within the system. A microcontroller can monitor these pins to decipher the operational state of the headlights or detect anomalies.

Design Considerations:

- Load Capacity: Always verify that the headlight's power requirement doesn't surpass the VNQ810PTR-E's rating.

- Decoupling: Position decoupling capacitors near the IC to deter potential voltage spikes, ensuring a consistent power supply.

- Heat Management: Given the possibility of high power dissipation, consider integrating a heat sink or ensure there's ample space around the IC for effective heat dispersion.

- PCB Layout: A well-thought-out PCB layout can minimize noise interference and augment the circuit's overall performance.

To encapsulate, the VNQ810PTR-E is adept in its domain, proving its mettle in an array of high-side driving endeavors. When harnessing its prowess, a meticulous approach in design will pave the way for stellar operational performance.
