STMicroelectronics VNQ660SP

Part No.:: VNQ660SP

Manufacturer:: STMicroelectronics

Package:: 10-PowerSO

Datasheet:: VNQ660SP.pdf

Description:: IC PWR DRIVER N-CHAN 1:1 PWRSO10

In Stock:: 2620

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

VNQ660SP Specifications

Package/Case:
10-PowerSO
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
SwitchType:
General Purpose
NumberofOutputs:
4
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
6V ~ 36V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
6A
RdsOn(Typ):
40mOhm
InputType:
Non-Inverting
Features:
Status Flag
FaultProtection:
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

VNQ660SP this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including VNQ660SP price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for VNQ660SP to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

VNQ660SP information

Views：

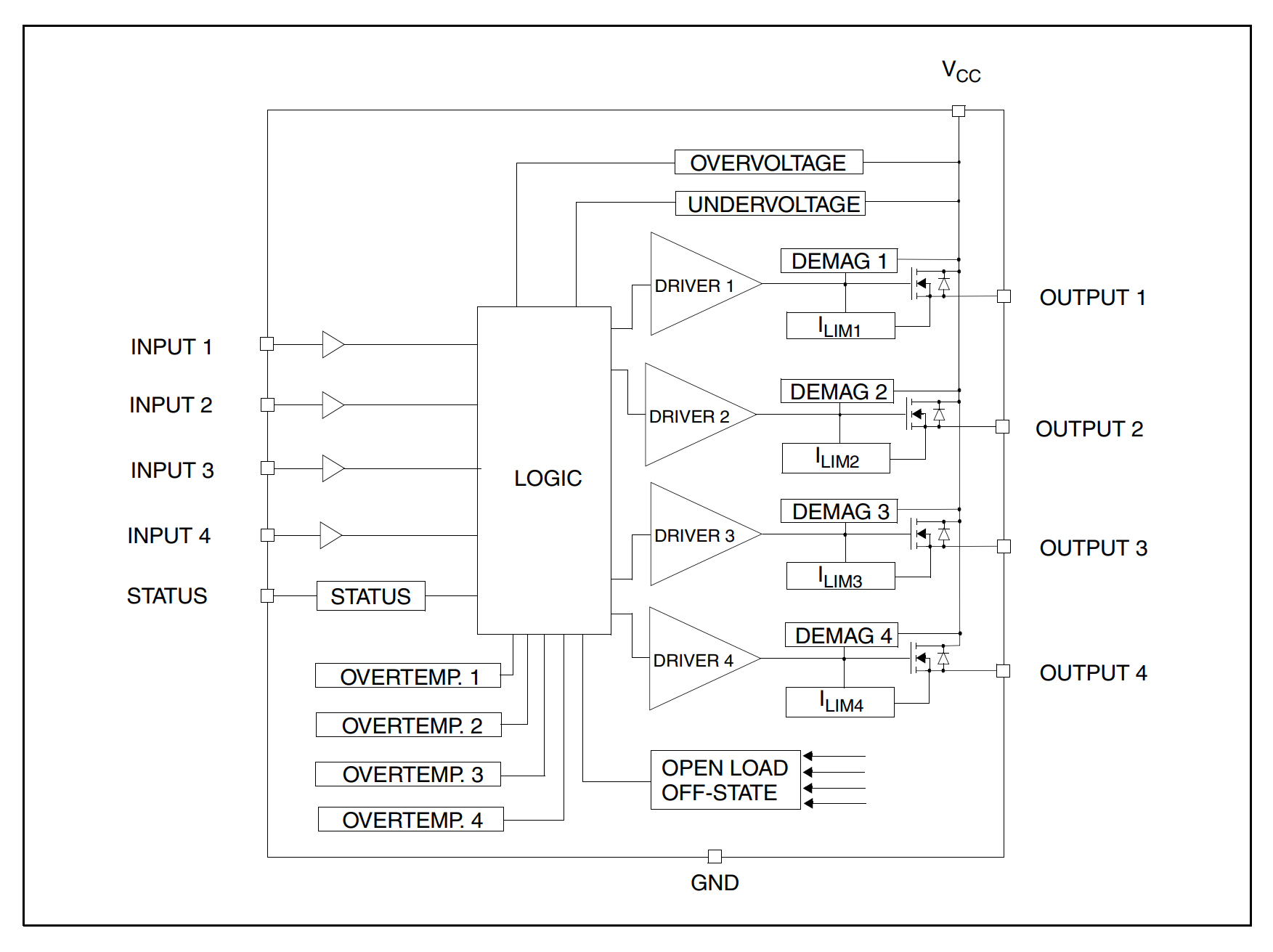

VNQ660SP Typical application Circuitry

VNQ660SP

The VNQ660SP is an impressive high-side driver from Microelectronics, specially designed to switch four resistive or inductive loads with one side connected to the battery. The configuration of the VNQ660SP in your circuit would depend on your specific needs, but here is a generic guide for integrating it:

1. Power Supply: The positive terminal of your battery should be connected to the Vs pin, and the negative terminal should be linked to ground. Given its automotive application design, the VNQ660SP typically operates with a 12V battery.

2. Control Inputs: The four control inputs, denoted as IN1, IN2, IN3, and IN4, are each associated with an output channel. These pins can be managed using the digital outputs from a microcontroller, toggling the corresponding output on or off.

3. Output Load Connections: Each output channel (OUT1, OUT2, OUT3, and OUT4) is designed to connect to an inductive or resistive load. The other end of each load should be wired to the ground.

4. Current Sense: The VNQ660SP comes with an in-built current sensing feature. The respective CS pins allow you to monitor the current traversing each output channel by assessing the voltage at the CS pin.

5. Diagnostic Feedback: The DRAG pin provides information about the device's functioning state. It can help detect conditions like open-load in off-state and short-to-VCC instances.

6. Decoupling Capacitors: To mitigate voltage transients and noise, connect a decoupling capacitor between the Vs pin and ground, ensuring it's as close to the VNQ660SP as possible.

Bear in mind, this guide offers a high-level look at connecting the VNQ660SP. For an all-encompassing and precise understanding, always refer to the VNQ660SP data sheet. Maintain adherence to good circuit design practices and observe safety protocols while handling electronic components.
