What is the Additional Feature ?

Name: VNN1NV04PTR-E
Brand: STMicroelectronics
SKU: VNN1NV04PTR-E
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

STMicroelectronics VNN1NV04PTR-E

Part No.:: VNN1NV04PTR-E

Manufacturer:: STMicroelectronics

Package:: SOT-223

Datasheet:: VNN1NV04PTR-E.pdf

Description:: IC PWR DRIVER N-CHAN 1:1 SOT223

In Stock:: 3607

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

VNN1NV04PTR-E Specifications

Package/Case:
SOT-223
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
OMNIFET II™, VIPower™
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
Low Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
36V (Max)
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
1.7A
RdsOn(Typ):
250mOhm (Max)
InputType:
Non-Inverting
Features:
-
FaultProtection:
Current Limiting (Fixed), Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

VNN1NV04PTR-E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including VNN1NV04PTR-E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for VNN1NV04PTR-E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

VNN1NV04PTR-E information

Views：

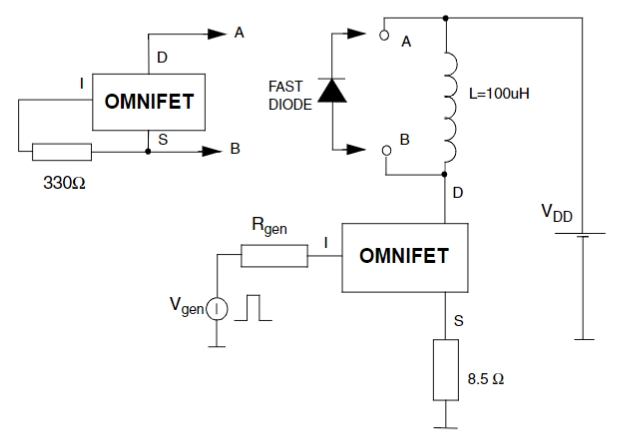

VNN1NV04PTR-E Typical application Circuitry

VNN1NV04PTR-E

The VNN1NV04PTR-E is an integrated circuit developed by STMicroelectronics as part of their VIPower (Very Intelligent Power) series. It is designed to serve as a monolithic intelligent power switch for driving resistive or inductive loads, with a particular focus on automotive applications.Here are some key features and functionalities of the VNN1NV04PTR-E:

1. Low-Side Driver: Unlike a high-side driver which controls the current flowing from the supply voltage to the load, the VNN1NV04PTR-E is a low-side driver and sits between the load and ground.

2. On-Chip Protection: The device includes various protection mechanisms such as thermal shutdown, overload, and short-circuit protection to ensure reliable and safe operation.

3. Diagnostic Functions: The VNN1NV04PTR-E provides diagnostic feedback for monitoring the status of the loads and detecting any fault conditions, such as open load in off-state and short to ground in on-state.

4. PWM Capability: The device can handle Pulse Width Modulation (PWM) inputs, allowing control over the power delivered to the loads by adjusting the duty cycle of the input signal.

5. Low On-Resistance: The VNN1NV04PTR-E is designed to have low on-resistance, ensuring minimal voltage drop across the switch and efficient power usage when it is in the on state.

6. Voltage Operation: The VNN1NV04PTR-E operates over a range of input voltages, making it suitable for a variety of automotive and industrial applications.

7. ESD Protection: The device includes features to protect against Electrostatic Discharge (ESD).

8. Package: The VNN1NV04PTR-E is typically offered in a surface-mount package, facilitating integration into space-constrained applications.

9. Applications: The device can be used in automotive systems to control various loads such as lamps, motors, heaters, solenoids, etc. It is also suitable for industrial automation and other domains that require precise control of low-side loads.

10. Interface: The VNN1NV04PTR-E comes with input pins and diagnostic output pins compatible with microcontrollers, making integration into different systems straightforward.

In summary, the VNN1NV04PTR-E is a versatile low-side driver designed to provide precise control, protection, and diagnostic features across different applications. For detailed specifications, electrical characteristics, and application guidelines, it's recommended to consult the datasheet for the VNN1NV04PTR-E provided by STMicroelectronics.
