STMicroelectronics VNI2140J

Part No.:: VNI2140J

Manufacturer:: STMicroelectronics

Package:: PowerSSO-12™

Datasheet:: VNI2140J.pdf

Description:: IC PWR DRVR N-CHAN 1:1 PWRSSO12

In Stock:: 3244

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

VNI2140J Specifications

Package/Case:
PowerSSO-12™
Packaging:
Tube
Series:
-
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
2
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
9V ~ 45V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
500mA
RdsOn(Typ):
80mOhm
InputType:
Non-Inverting
Features:
-
FaultProtection:
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

VNI2140J this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including VNI2140J price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for VNI2140J to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

VNI2140J information

Views：

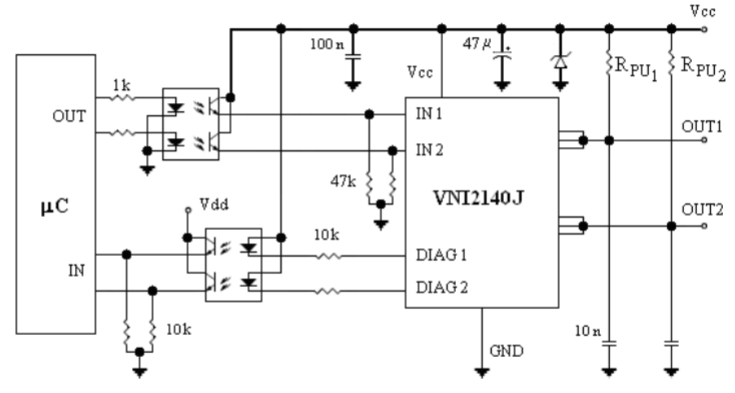

VNI2140J Typical application Circuitry

VNI2140J

The VNI2140J is an integrated circuit developed by STMicroelectronics as part of their VIPower (Very Intelligent Power) family. It is designed to function as a high-side driver and is well-suited for automotive and industrial applications where loads such as lamps, heaters, motors, and valves need to be controlled.Here are some key features and functionalities of the VNI2140J:

1. Dual High-Side Driver: The VNI2140J integrates two independent high-side drivers, allowing it to control two different loads independently. This makes it suitable for applications requiring multiple load controls from a single IC.

2. On-Chip Protection: The VNI2140J is equipped with several protection mechanisms to ensure the safety and reliability of the device. These protections include thermal shutdown, overload and short-circuit protection, and over-voltage clamping.

3. Diagnostic Functions: The device provides diagnostic feedback to monitor the condition of the loads and to detect any fault conditions such as open load, short to ground, and overtemperature. This diagnostic information can be used for intelligent system monitoring and fault detection.

4. PWM Capability: The VNI2140J is capable of handling Pulse Width Modulation (PWM) inputs, which enables control over the power delivered to the loads by adjusting the duty cycle of the input signal.

5. Low On-Resistance: The device is designed to have low on-resistance, ensuring efficient power usage and minimal voltage drop across the switch when it is in the on state.

6. Voltage Operation: The VNI2140J is designed to operate over a range of input voltages, making it suitable for various automotive and industrial applications.

7. ESD Protection: The VNI2140J includes features to protect against Electrostatic Discharge (ESD).

8. Package: The VNI2140J is typically offered in a surface-mount package, making it suitable for integration into space-constrained applications.

9. Applications: The device finds applications in automotive systems where it can control various loads such as lamps, motors, heaters, etc. It can also be used in industrial automation and other domains that require precise control of high-side loads.

10. Interface: The VNI2140J comes with input pins and diagnostic output pins that are compatible with microcontrollers, facilitating easy integration into different systems.

In summary, the VNI2140J is a versatile dual high-side driver designed to offer precise control, protection, and diagnostic features for various applications. For detailed specifications, electrical characteristics, and application guidelines, it's recommended to consult the datasheet for the VNI2140J provided by STMicroelectronics.
