STMicroelectronics VND5T035AKTR-E

Part No.:: VND5T035AKTR-E

Manufacturer:: STMicroelectronics

Package:: PowerSSO-24

Datasheet:: VND5T035AKTR-E.pdf

Description:: IC PWR DRVR N-CHAN 1:1 PWRSSO24

In Stock:: 2188

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

VND5T035AKTR-E Specifications

Package/Case:
PowerSSO-24
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
VIPower™
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
2
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
8V ~ 36V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
30A
RdsOn(Typ):
35mOhm
InputType:
Non-Inverting
Features:
-
FaultProtection:
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

VND5T035AKTR-E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including VND5T035AKTR-E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for VND5T035AKTR-E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

VND5T035AKTR-E information

Views：

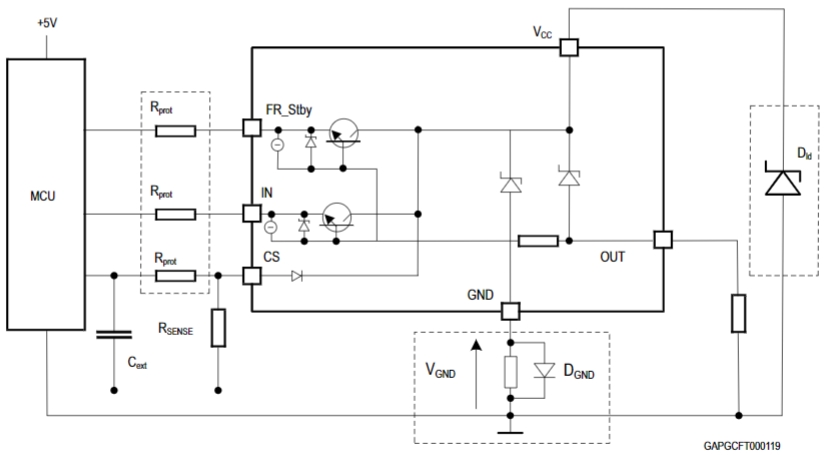

VND5T035AKTR-E Typical application Circuitry

VND5T035AKTR-E

The VND5T035AKTR-E is an integrated circuit developed by STMicroelectronics and belongs to the VIPower (Very Intelligent Power) family. It is a high-side driver designed to drive a wide range of resistive, inductive, or capacitive loads. Given its features and capabilities, it is commonly used in automotive applications.Here are some key features and functionalities of the VND5T035AKTR-E:

1. Single High-Side Driver: The VND5T035AKTR-E operates as a single-channel high-side driver, meaning it controls one load by switching the supply voltage on the "high" or supply side of the load.

2. On-Chip Protection: The device incorporates several protection features such as thermal shutdown, load current limitation, over-voltage clamping, and more to ensure robust operation and protect both the IC and the loads it controls.

3. Diagnostic Functions: The VND5T035AKTR-E provides diagnostic functions that can detect and report conditions such as open load, short to ground, and overtemperature conditions. These diagnostic outputs can be interfaced with microcontrollers for intelligent monitoring and fault detection.

4. PWM Capability: The device can handle Pulse Width Modulation (PWM) inputs, enabling it to control the power delivered to the loads by adjusting the duty cycle of the input signal.

5. Low On-Resistance: The VND5T035AKTR-E is designed to have low on-resistance, ensuring efficient power usage and minimal voltage drop across the switch when it is in the on state.

6. Voltage Operation: The device is designed to operate over a wide range of input voltages, making it suitable for various automotive and industrial applications.

7. ESD Protection: The VND5T035AKTR-E includes features to protect against Electrostatic Discharge (ESD).

8. Package: The VND5T035AKTR-E is typically offered in a compact surface-mount package, suitable for space-constrained applications.

9. Applications: The device is used in automotive systems for controlling lamps, motors, heaters, etc., as well as in industrial automation and other domains requiring precise control of high-side loads.

10. Interface: The VND5T035AKTR-E comes with input pins and diagnostic output pins that are compatible with microcontrollers, facilitating easy integration into different systems.

By using the VND5T035AKTR-E in their designs, engineers can achieve precise control and protection of various loads while leveraging the built-in diagnostic and protection features. For detailed specifications, electrical characteristics, and application guidelines, it is recommended to consult the datasheet for the VND5T035AKTR-E provided by STMicroelectronics.
