STMicroelectronics VND5T016ASPTR-E

Part No.:: VND5T016ASPTR-E

Manufacturer:: STMicroelectronics

Package:: PowerSO-16™

Datasheet:: VND5T016ASPTR-E.pdf

Description:: IC PWR DRIVER N-CHAN 1:1 PWRSO16

In Stock:: 3042

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

VND5T016ASPTR-E Specifications

Package/Case:
PowerSO-16™
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
VIPower™
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
2
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
8V ~ 36V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
45A
RdsOn(Typ):
16mOhm
InputType:
Non-Inverting
Features:
-
FaultProtection:
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

VND5T016ASPTR-E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including VND5T016ASPTR-E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for VND5T016ASPTR-E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

VND5T016ASPTR-E information

Views：

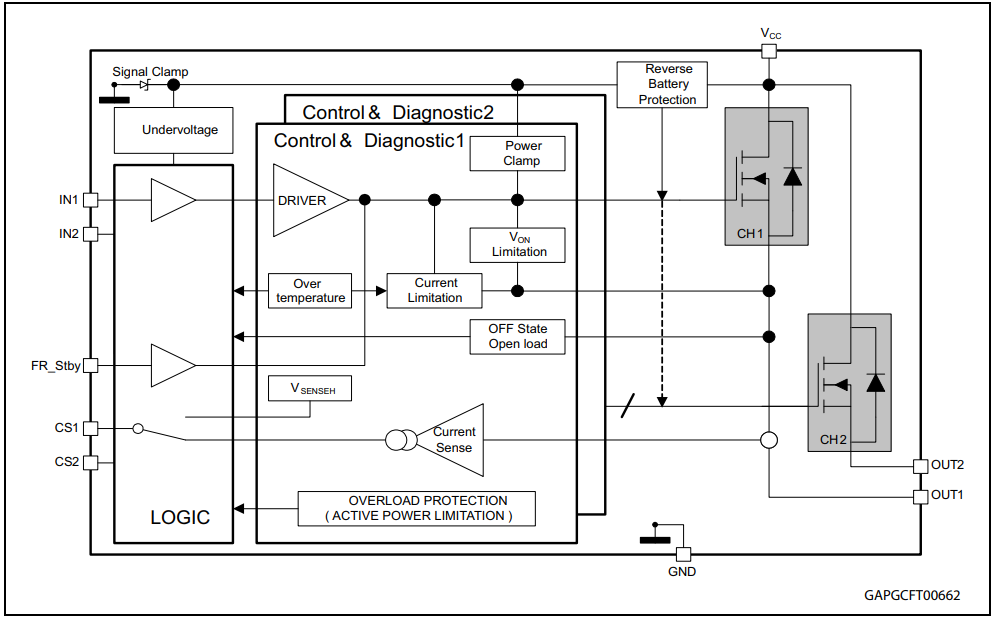

VND5T016ASPTR-E Typical application Circuitry

VND5T016ASPTR-E

In this discussion, we will focus on the proper way to connect the VND5T016ASPTR-E, a Double Channel High Side Driver from Microelectronics. The device is designed to drive high-side switches with current limitation and thermal shutdown.

1. Power Supply: Pins VS1 (Pin7) and VS2 (Pin10) are the voltage supply pins and are to be connected to your chosen voltage source within the range specified by the data sheet (from 4V to 36V). Connect pin GND (Pin8) to the ground of your power supply.

2. Input: Pins IN1 (Pin1) and IN2 (Pin2) are the input control pins for the two channels. By controlling the voltage level on these pins, you can control the ON/OFF status of the output channels.

3. Output: Pins OUT1 (Pin4) and OUT2 (Pin5) are the power output pins. Connect these pins to the load you want to control with the VND5T016ASPTR-E.

4. Current Sense: The VND5T016ASPTR-E also provides a current sense output through pins CS1 (Pin3) and CS2 (Pin6). These pins produce a voltage proportional to the output current, allowing for current feedback in your system.

5. Power Dissipation: To dissipate heat and enhance thermal performance, connect the exposed pad on the bottom of the VND5T016ASPTR-E to the ground plane of your PCB.

The VND5T016ASPTR-E is a complex device with many features, and the above connections represent a basic configuration. Always remember to consult the data sheet for complete information on pin functionalities and how to configure the VND5T016ASPTR-E for your specific application.
