Name: VND5E004ATR-E
Brand: STMicroelectronics
SKU: VND5E004ATR-E
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

STMicroelectronics VND5E004ATR-E

Part No.:: VND5E004ATR-E

Manufacturer:: STMicroelectronics

Package:: 24-PQFN (12x12)

Datasheet:: VND5E004ATR-E.pdf

Description:: IC PWR SWITCH N-CHAN 1:1 24PQFN

In Stock:: 2682

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

VND5E004ATR-E Specifications

Package/Case:
24-PQFN (12x12)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
VIPower™
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
2
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
4.5V ~ 28V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
65A
RdsOn(Typ):
3mOhm
InputType:
Non-Inverting
Features:
Auto Restart
FaultProtection:
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

VND5E004ATR-E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including VND5E004ATR-E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for VND5E004ATR-E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

VND5E004ATR-E information

Views：

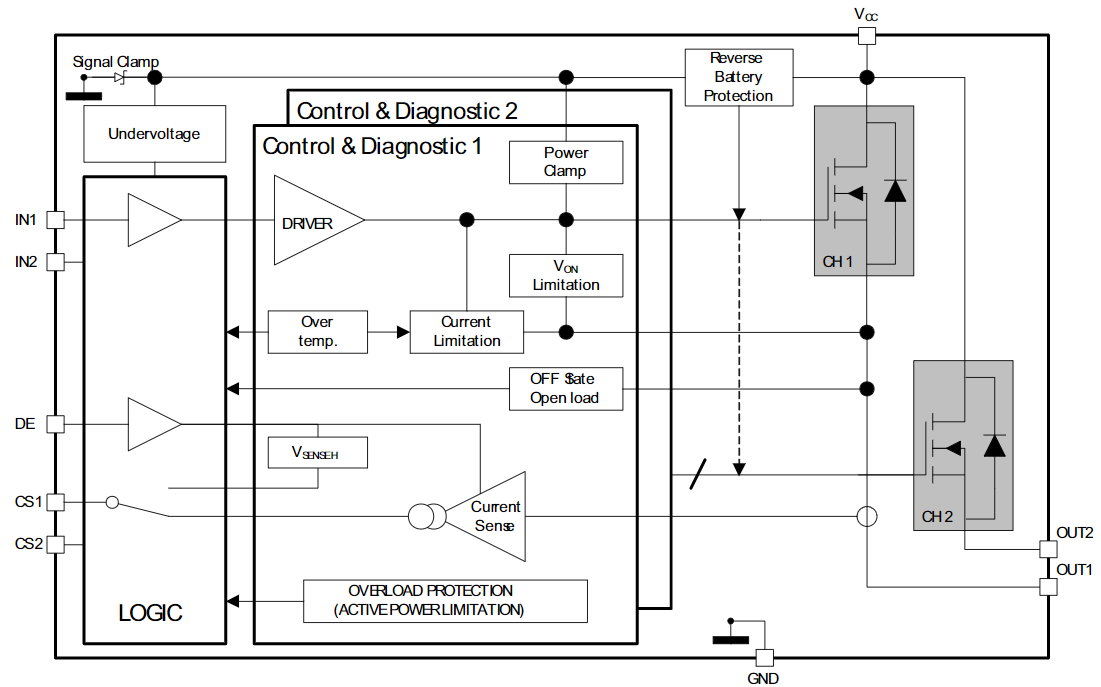

VND5E004ATR-E Typical application Circuitry

The VND5E004ATR-E is a double channel high-side driver integrated circuit tailored for the purpose of driving a wide variety of automotive loads. It's commonly found within vehicle systems to manage and control electronic devices, offering an excellent replacement for conventional relays or fuses.

Features and Parameters of VND5E004ATR-E:

- Dual Channel: The VND5E004ATR-E can control two separate loads independently, making it versatile for multi-load applications.

- Voltage Range: It typically functions across an automotive voltage spectrum, catering to both 12V and 24V systems.

- Protection Mechanisms: It boasts protections against overcurrent, overtemperature, and electrical transients, safeguarding both the IC and the connected load.

- ON Resistance: Its low ON resistance aids in minimizing energy wastage.

- Diagnostic Capabilities: The IC can relay fault conditions to a central controller, which is crucial for real-time monitoring and troubleshooting.

Applications of VND5E004ATR-E:

- Dual light control (e.g., front and rear or left and right lights).

- Motor control for windows, mirrors, or wipers.

- Activating two different relay replacements in tandem.

Application Scenario - Dual Light Control:

Imagine using the VND5E004ATR-E to independently control both front and rear car lights:

1. Input Channels (IN1, IN2): These are your control pins. IN1 can be connected to a switch or microcontroller output for front light control, while IN2 does the same for the rear lights. When the respective pin receives a high signal, the light gets activated.

2. Output Channels (OUT1, OUT2): OUT1 should be directly connected to the front light, and OUT2 to the rear light. Ensure the other terminals of the lights are grounded.

3. Supply Voltage (VS): This pin is directly attached to the car's positive battery terminal. Consider connecting a decoupling capacitor for noise control between this pin and ground close to the VND5E004ATR-E.

4. Ground (GND): Ground this pin to the vehicle's chassis or common grounding point.

5. Diagnostic Pins (DIAG1, DIAG2): These pins can be linked to microcontroller inputs to read diagnostic data. This allows for real-time monitoring of each light's condition. A pull-up resistor might be necessary for some configurations.

Design Considerations:

- Heat Management: With VND5E004ATR-E's dual channel capability, managing heat becomes paramount. The board's layout, along with any additional heat sinks, should be optimized for efficient heat dissipation.

- EMI Challenges: The automotive environment is rife with electromagnetic disturbances. Careful layout, component placement, and possibly the inclusion of filtering elements can mitigate interference risks.

- Redundancy and Safety: Given its application in lighting, ensure the circuit has additional protective mechanisms, like transient voltage suppressors.

- Device Limitations: Always cross-reference with the VND5E004ATR-E datasheet. Ensure the loads you're driving (front and rear lights, in this case) are within the device's specifications.

In sum, while the VND5E004ATR-E offers an effective solution for dual-channel high-side driving in automotive applications, it's essential to design with care, considering both the IC's capabilities and the automotive environment's inherent challenges.
