STMicroelectronics VNB35NV04TR-E

Part No.:: VNB35NV04TR-E

Manufacturer:: STMicroelectronics

Package:: D2PAK

Datasheet:: VNB35NV04TR-E.pdf

Description:: IC PWR DRIVER N-CHAN 1:1 D2PAK

In Stock:: 3776

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

VNB35NV04TR-E Specifications

Package/Case:
D2PAK
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
OMNIFET II™, VIPower™
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
Low Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
36V (Max)
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
30A
RdsOn(Typ):
13mOhm (Max)
InputType:
Non-Inverting
Features:
-
FaultProtection:
Current Limiting (Fixed), Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

VNB35NV04TR-E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including VNB35NV04TR-E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for VNB35NV04TR-E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

VNB35NV04TR-E information

Views：

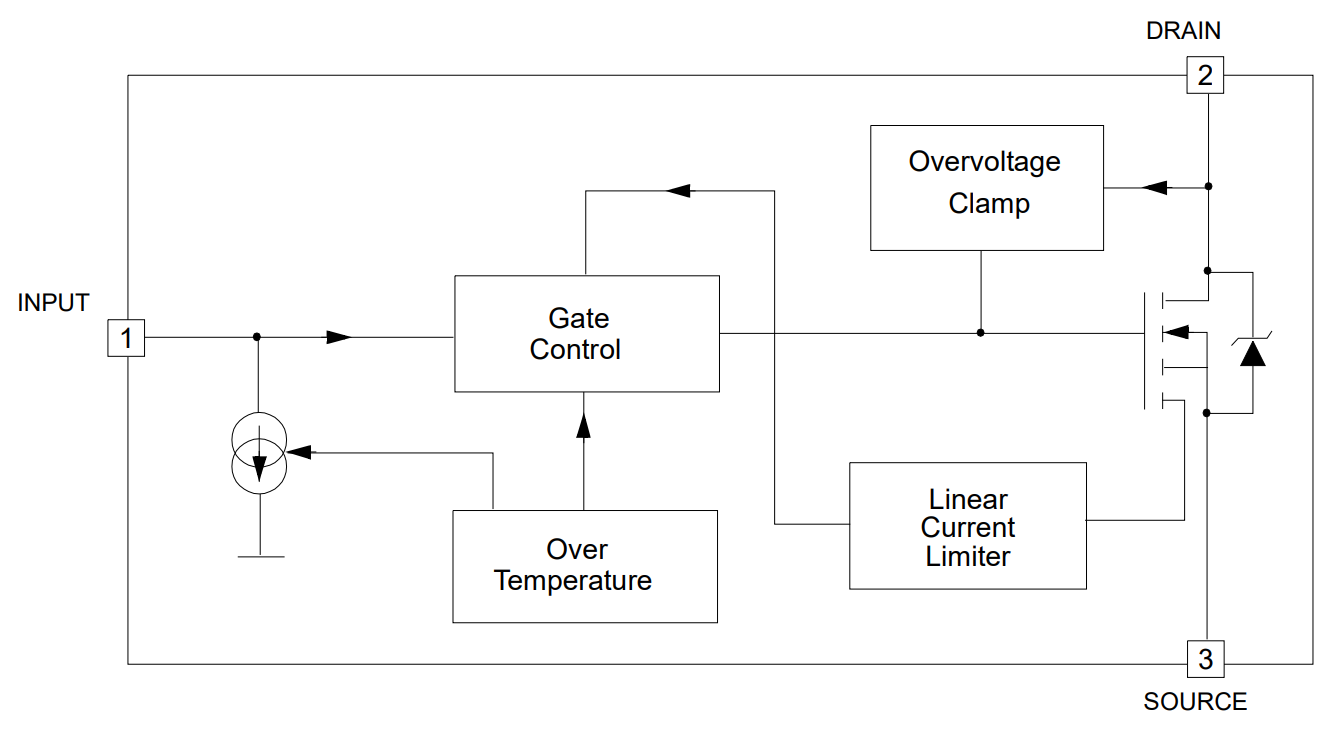

VNB35NV04TR-E Typical application Circuitry

VNB35NV04TR-E

The VNB35NV04TR-E is a Microelectronics "KNIFE II": completely auto-protected Power MOS FET. This device integrates intelligent control circuitry designed for the harsh automotive environment. It features various built-in safeguards, including as overheating, overload, and short circuit safety.Let's explore the detailed electrical connections for the VNB35NV04TR-E:

1. Power Source (VIN, GND): The VIN (pin 2) is the power supply pin. Connect your power source's positive terminal to VIN. The negative end of your power supply should be linked to the ground pin, GND (pin 3).

2. Load Connection (OUT): The OUT pin (pin 1) should be linked to your load. Note that the VNB35NV04TR-E is an N-channel MOS FET and, hence, should be connected in the low side of your load (i.e., between your load and ground).

3. Control Signal (ON/OFF): Control the ON and OFF states of the MOS FET by applying a voltage signal to the VIN pin (pin 2). When a voltage is applied, the MOS FET turns on, allowing current to flow from OUT to GND. When the power is withdrawn, the MOS FET switches off, preventing current flow.

The VNB35NV04TR-E is designed with built-in protections to prevent damage from common issues faced in automotive and industrial environments. Therefore, it's crucial to consider these protections when designing your circuit, and to adhere to the absolute maximum ratings and recommended operating conditions provided in the VNB35NV04TR-E data sheet.

It's essential to mention that the heat sink pad is internally connected to the drain, and it should be soldered to the board ground for better heat dissipation.

Lastly, the above guide provides a simple usage case. Depending on the application, further considerations might be needed, such as proper gate drive design for fast switching, or additional external protections for more severe conditions.
