STMicroelectronics VN808CM-32-E

Part No.:: VN808CM-32-E

Manufacturer:: STMicroelectronics

Package:: PowerSO-36, Bottom Pad

Datasheet:: VN808CM-32-E.pdf

Description:: IC PWR DRIVER N-CHAN 1:1 PWRSO36

In Stock:: 3701

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

VN808CM-32-E Specifications

Package/Case:
PowerSO-36, Bottom Pad
Packaging:
Tube
Series:
VIPower™
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
8
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
10.5V ~ 45V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
1A
RdsOn(Typ):
160mOhm (Max)
InputType:
Non-Inverting
Features:
Auto Restart, Status Flag
FaultProtection:
Current Limiting (Fixed), Over Temperature
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

VN808CM-32-E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including VN808CM-32-E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for VN808CM-32-E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

VN808CM-32-E information

Views：

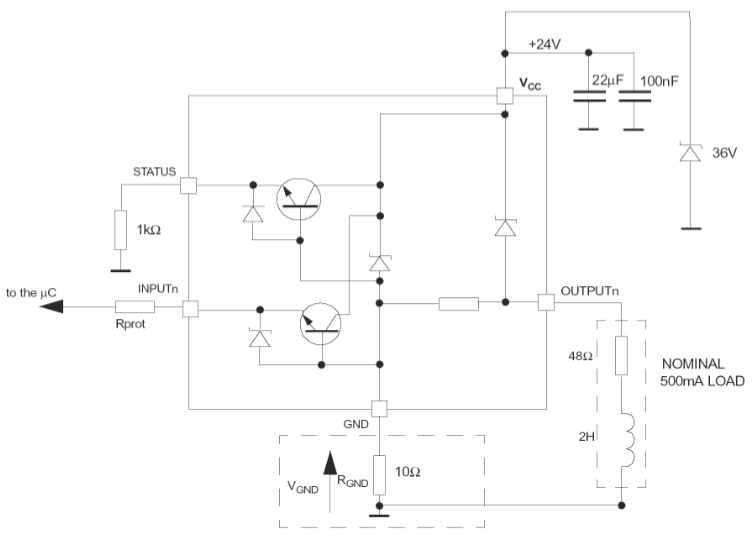

VN808CM-32-E Typical application Circuitry

VN808CM-32-E

The VN808CM-32-E is an integrated circuit (IC) developed by STMicroelectronics, part of their VIPower (Very Intelligent Power) family. This IC is designed as an octal high-side smart power solid-state relay and is suitable for driving resistive, inductive, and capacitive loads.

Here are some key features and functionalities of the VN808CM-32-E:

1. Octal High-Side Driver: The VN808CM-32-E is an octal (eight-channel) high-side driver, which means it can independently control up to eight different loads by switching the supply voltage on the "high" or supply side of the load.

2. On-Chip Protection: The device integrates several protection features such as thermal shutdown, load current limitation, and over-voltage clamping. These features ensure safe operation and protect both the IC and the loads it controls.

3. Diagnostic Functions: The VN808CM-32-E provides diagnostic functions capable of detecting and reporting conditions such as open load, short to ground, and overtemperature conditions. These diagnostic outputs can be interfaced with microcontrollers for monitoring and fault detection.

4. PWM Capability: The device can handle Pulse Width Modulation (PWM) inputs, which allows it to control the power delivered to the loads by adjusting the duty cycle of the input signal.

5. Low On-Resistance: The VN808CM-32-E is designed to have low on-resistance, ensuring efficient power usage and minimal voltage drop across the switch when it is active.

6. Voltage Operation: The device is designed to operate over a wide range of input voltages, making it suitable for various automotive and industrial applications.

7. ESD Protection: The VN808CM-32-E incorporates features to protect against Electrostatic Discharge (ESD).

8. Package: The VN808CM-32-E is typically offered in a compact surface-mount package, suitable for space-constrained applications.

9. Applications: The device can be used in a range of applications including automotive systems (for controlling lamps, motors, heaters, etc.), industrial automation, and other domains requiring precise control of multiple high-side loads.

10. Interface: The VN808CM-32-E comes with input pins and diagnostic output pins that are compatible with microcontrollers, making system integration straightforward.

By integrating the VN808CM-32-E into their designs, engineers can achieve precise control and protection of multiple loads while taking advantage of the built-in diagnostic and protection features. For detailed specifications, electrical characteristics, and application guidelines, it is recommended to consult the datasheet for the VN808CM-32-E provided by STMicroelectronics.
