STMicroelectronics VN5050JTR-E

Part No.:: VN5050JTR-E

Manufacturer:: STMicroelectronics

Package:: PowerSSO-12™

Datasheet:: VN5050JTR-E.pdf

Description:: IC PWR DRVR N-CHAN 1:1 PWRSSO12

In Stock:: 2011

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

VN5050JTR-E Specifications

Package/Case:
PowerSSO-12™
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
VIPower™
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
1
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
4.5V ~ 36V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
13.5A
RdsOn(Typ):
50mOhm (Max)
InputType:
Non-Inverting
Features:
Auto Restart
FaultProtection:
Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

VN5050JTR-E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including VN5050JTR-E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for VN5050JTR-E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

VN5050JTR-E information

Views：

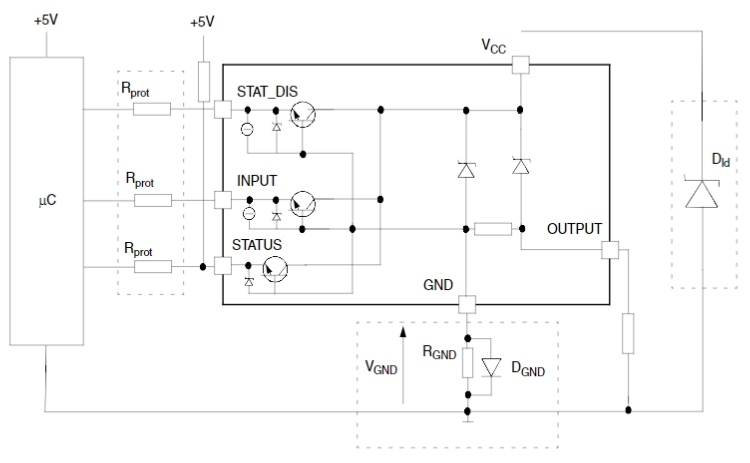

VN5050JTR-E Typical application Circuitry

VN5050JTR-E

The VN5050JTR-E is a device manufactured by STMicroelectronics and belongs to the VIPower (Very Intelligent Power) family. It is a monolithic high-side smart power solid-state relay specifically designed for automotive and industrial applications. This device is used to drive inductive, resistive, or capacitive loads.Here are some key features and functionalities of the VN5050JTR-E:

1. Single High-Side Driver: The VN5050JTR-E operates as a single-channel high-side driver, which means it can control one load by switching the supply voltage on the "high" or supply side of the load.

2. On-Chip Protection: The device integrates several protection mechanisms, such as thermal shutdown, load current limitation, and over-voltage clamping, to ensure robust operation and to prevent damage to the IC and the loads it controls.

3. Diagnostic Functions: The VN5050JTR-E provides diagnostic functions that can detect and report issues like open load, short to ground, and overtemperature conditions. These diagnostic outputs can be interfaced with microcontrollers for intelligent monitoring and fault detection.

4. PWM Capability: The device is capable of handling Pulse Width Modulation (PWM) inputs, allowing it to control the power delivered to the loads by adjusting the duty cycle of the input signal.

5. Low On-Resistance: The VN5050JTR-E is designed to have low on-resistance, which ensures efficient power usage and minimal voltage drop across the switch when it is on.

6. Voltage Operation: The device operates over a range of input voltages, making it suitable for automotive and industrial applications.

7. ESD Protection: The VN5050JTR-E includes features to protect against Electrostatic Discharge (ESD).

8. Package: The VN5050JTR-E is typically offered in a compact surface-mount package, making it suitable for space-constrained applications.

9. Applications: This device is designed for use in a wide range of applications, including automotive (for controlling lamps, motors, heaters, etc.), industrial automation, and other domains where precise control of high-side loads is required.

10. Interface: The VN5050JTR-E comes with input pins and diagnostic output pins that are compatible with microcontrollers, making system integration simpler.

By integrating the VN5050JTR-E into their designs, engineers can achieve precise control over a load while benefiting from the built-in diagnostic and protection features. For detailed specifications, electrical characteristics, and application guidelines, it is recommended to consult the datasheet for the VN5050JTR-E provided by STMicroelectronics.
