Name: VN340SP-E
Brand: STMicroelectronics
SKU: VN340SP-E
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

STMicroelectronics VN340SP-E

Part No.:: VN340SP-E

Manufacturer:: STMicroelectronics

Package:: 10-PowerSO

Datasheet:: VN340SP-E.pdf

Description:: IC PWR DRIVER N-CHAN 1:1 PWRSO10

In Stock:: 3407

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

VN340SP-E Specifications

Package/Case:
10-PowerSO
Packaging:
Tube
Series:
-
ProductStatus:
Active
SwitchType:
General Purpose
NumberofOutputs:
4
Ratio-Input:Output:
1:1
OutputConfiguration:
High Side
OutputType:
N-Channel
Interface:
On/Off
Voltage-Load:
10V ~ 36V
Voltage-Supply(Vcc/Vdd):
Not Required
Current-Output(Max):
700mA
RdsOn(Typ):
200mOhm (Max)
InputType:
Non-Inverting
Features:
Status Flag
FaultProtection:
Current Limiting (Fixed), Over Temperature
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

VN340SP-E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including VN340SP-E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for VN340SP-E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

VN340SP-E information

Views：

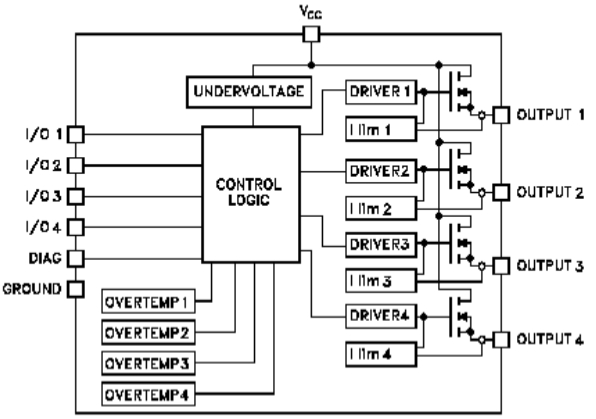

VN340SP-E Typical application Circuitry

VN340SP-E

The VN340SP-E is a quad high-side smart power solid-state relay designed and manufactured by STMicroelectronics. It belongs to the VIPower (Very Intelligent Power) family and is created to drive resistive or inductive loads with one side connected to the ground.

Here are some key features and functionalities of the VN340SP-E:

1. Quad High-Side Driver: The VN340SP-E is equipped with four independent high-side drivers. This means it can control up to four separate loads independently, making it suitable for applications requiring multiple load controls.

2. On-Chip Protection: The device integrates several protection features such as thermal shutdown, load current limitation, and over-voltage clamp to ensure reliable operation and prevent damage to both the IC and the loads it controls.

3. Diagnostic Functions: The VN340SP-E can provide diagnostic outputs corresponding to different failure conditions such as open load, short to ground, and overtemperature conditions. These diagnostic outputs can be interfaced with microcontrollers to enable smart monitoring and fault detection.

4. PWM Capability: The device can handle Pulse Width Modulation (PWM) inputs, which allows for controlling the power delivered to the loads by adjusting the duty cycle of the input signal.

5. Low On-Resistance: The VN340SP-E is designed to have low on-resistance, which ensures efficient power usage and minimal voltage drop across the switch when it's on.

6. Voltage Operation: It is designed to operate over a range of input voltages, making it suitable for automotive and industrial applications.

7. ESD Protection: The device includes features to protect against Electrostatic Discharge (ESD).

8. Package: The VN340SP-E is typically available in a compact surface-mount package, making it suitable for space-constrained applications.

9. Applications: It can be used in a wide range of applications, including automotive (for controlling lamps, motors, etc.), industrial automation, and other domains where precise control of high-side loads is required.

10. Interface: The VN340SP-E comes with input pins and diagnostic output pins that are compatible with microcontrollers, making system integration simpler.

By integrating the VN340SP-E into their designs, engineers can achieve precise control over multiple loads while also taking advantage of the built-in diagnostic and protection features. For detailed specifications, electrical characteristics, and application guidelines, it's recommended to consult the datasheet for the VN340SP-E provided by STMicroelectronics.
